Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C2357B HVAC Module, EMTC

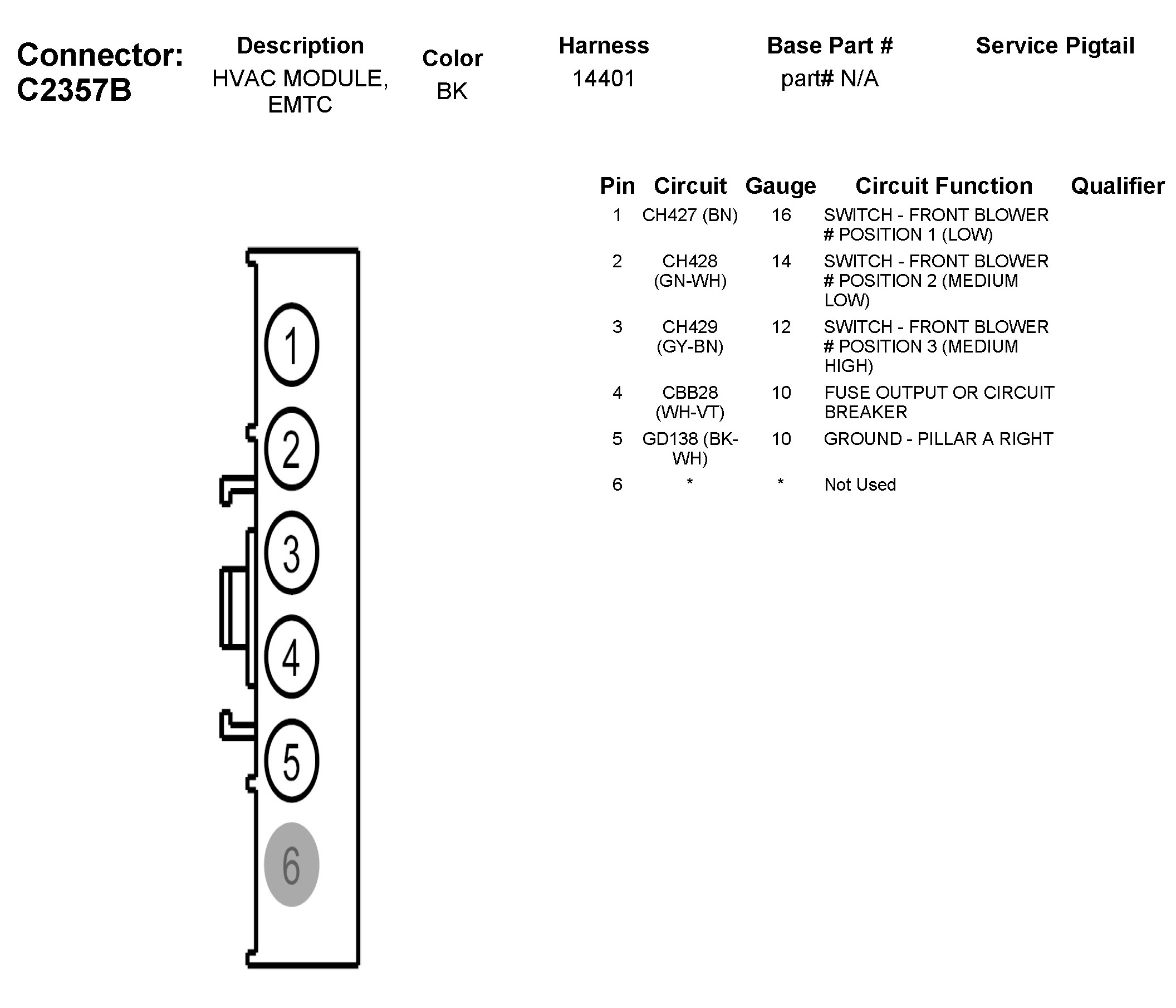

C2357B HVAC Module, EMTC
