Alignment

Specifications

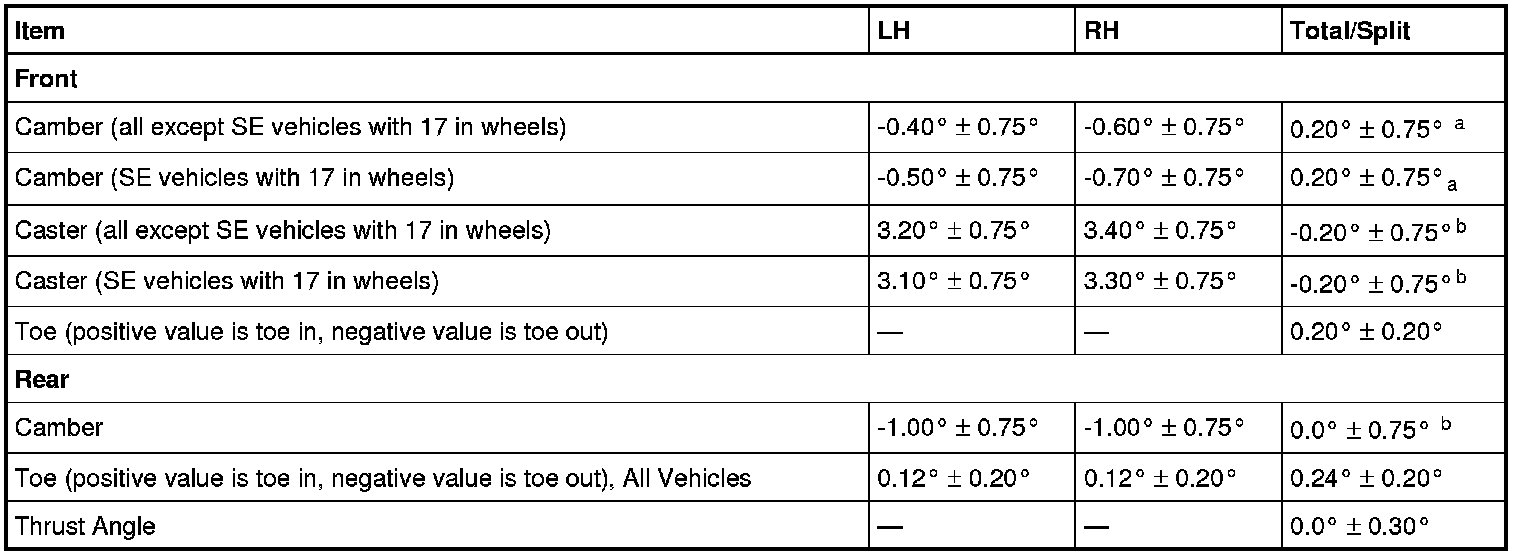

Alignment Specifications





a Camber Total/Split = LH Camber - RH Camber

b Caster Total/Split = LH Caster - RH Caster

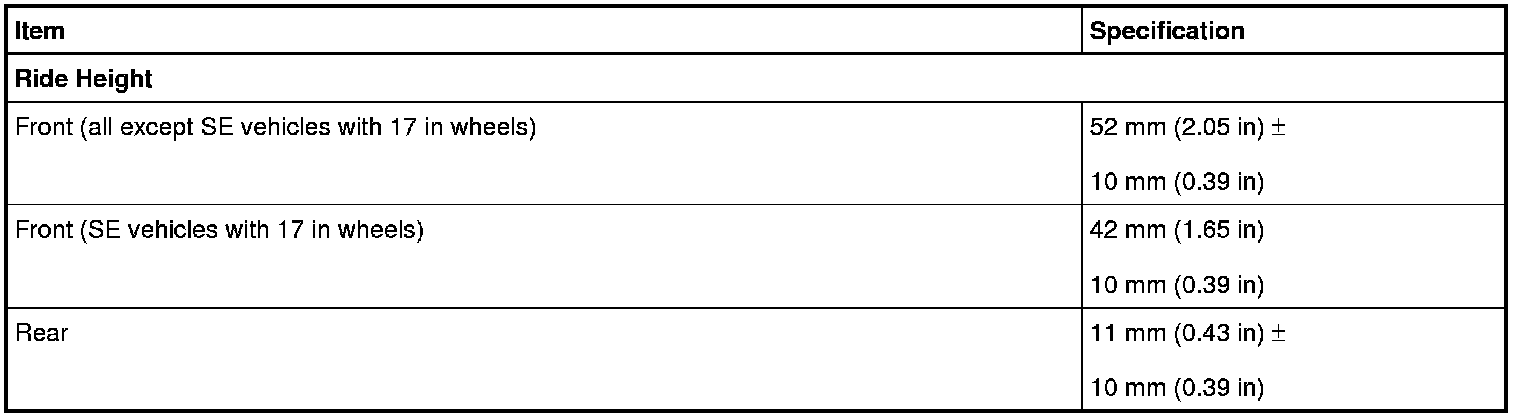

General Specifications

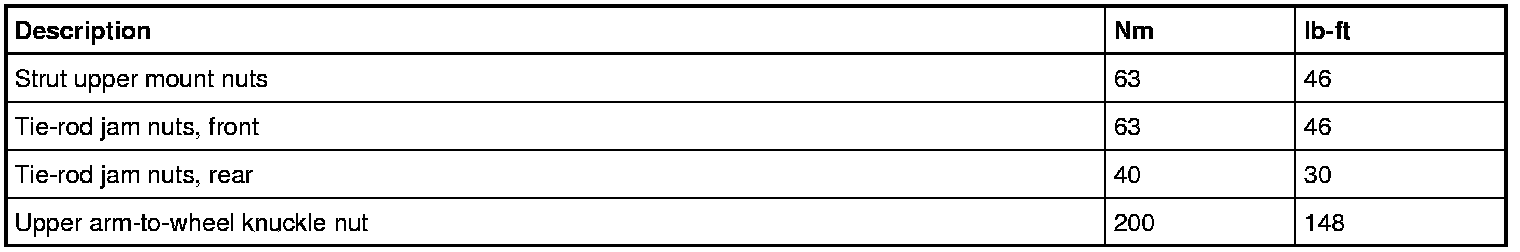

Torque Specifications

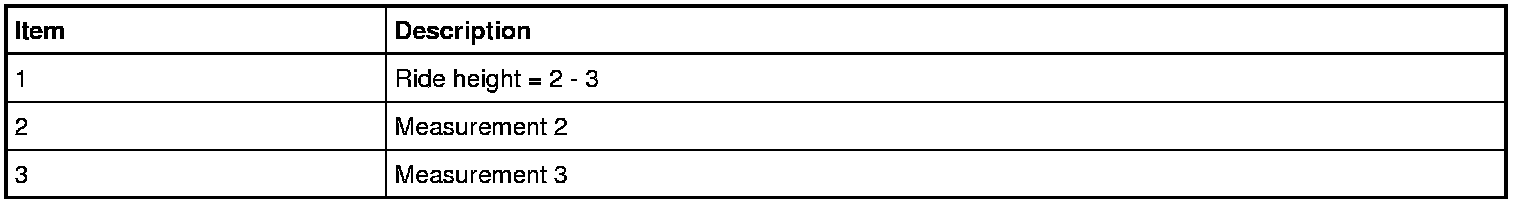

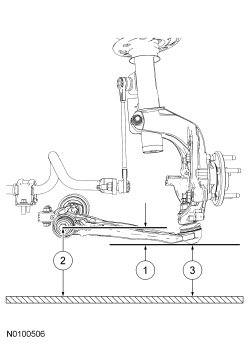

Front Ride Height Measurement










Rear Ride Height Measurement
