Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Component Testing
>>
Component Testing
>>
Multifunction Switch, Wiper/Washer Portion
>>
Schematic
Multifunction Switch, Wiper/Washer Portion: Schematic
Download the full database via torrent (~1.1 TB)

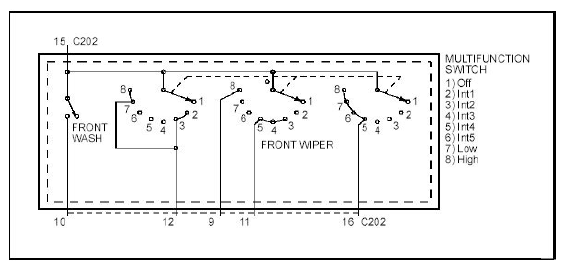

Fig 1: Multifunction Switch, Wiper/Washer Portion - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
