Multifunction switch, Lamp portion
>>
Terminals
Multifunction switch, Lamp portion: Terminals
Download the full database via torrent (~1.1 TB)

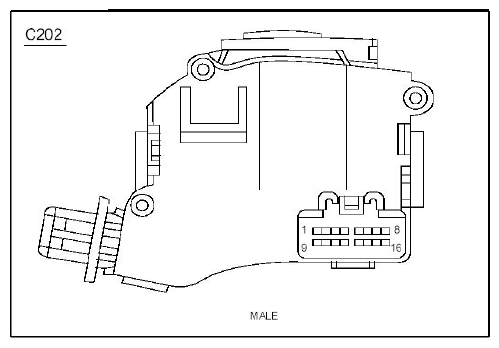

Fig 1: Identifying C202 Connector Terminals
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
