Home
>>
Ford
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

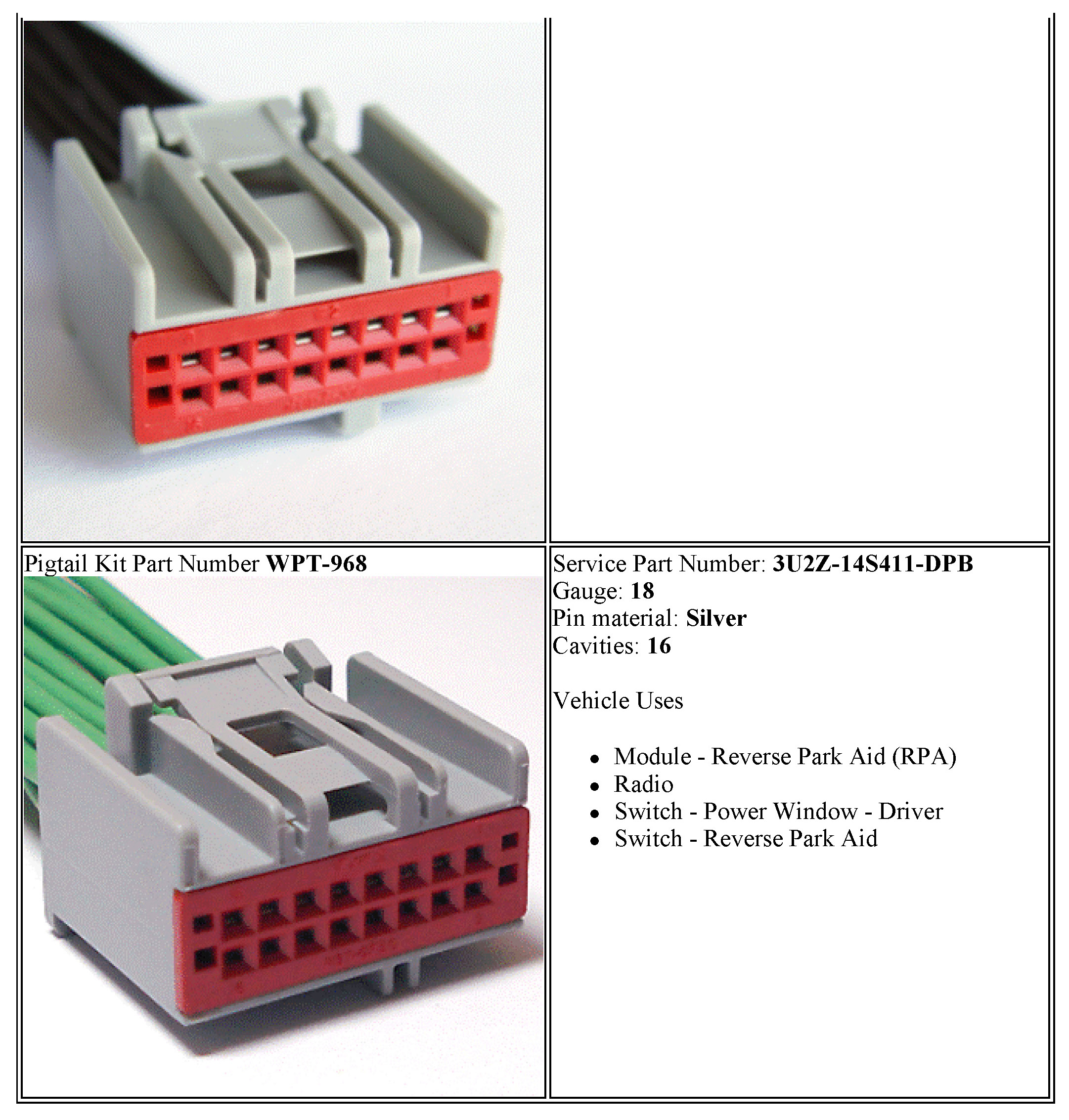

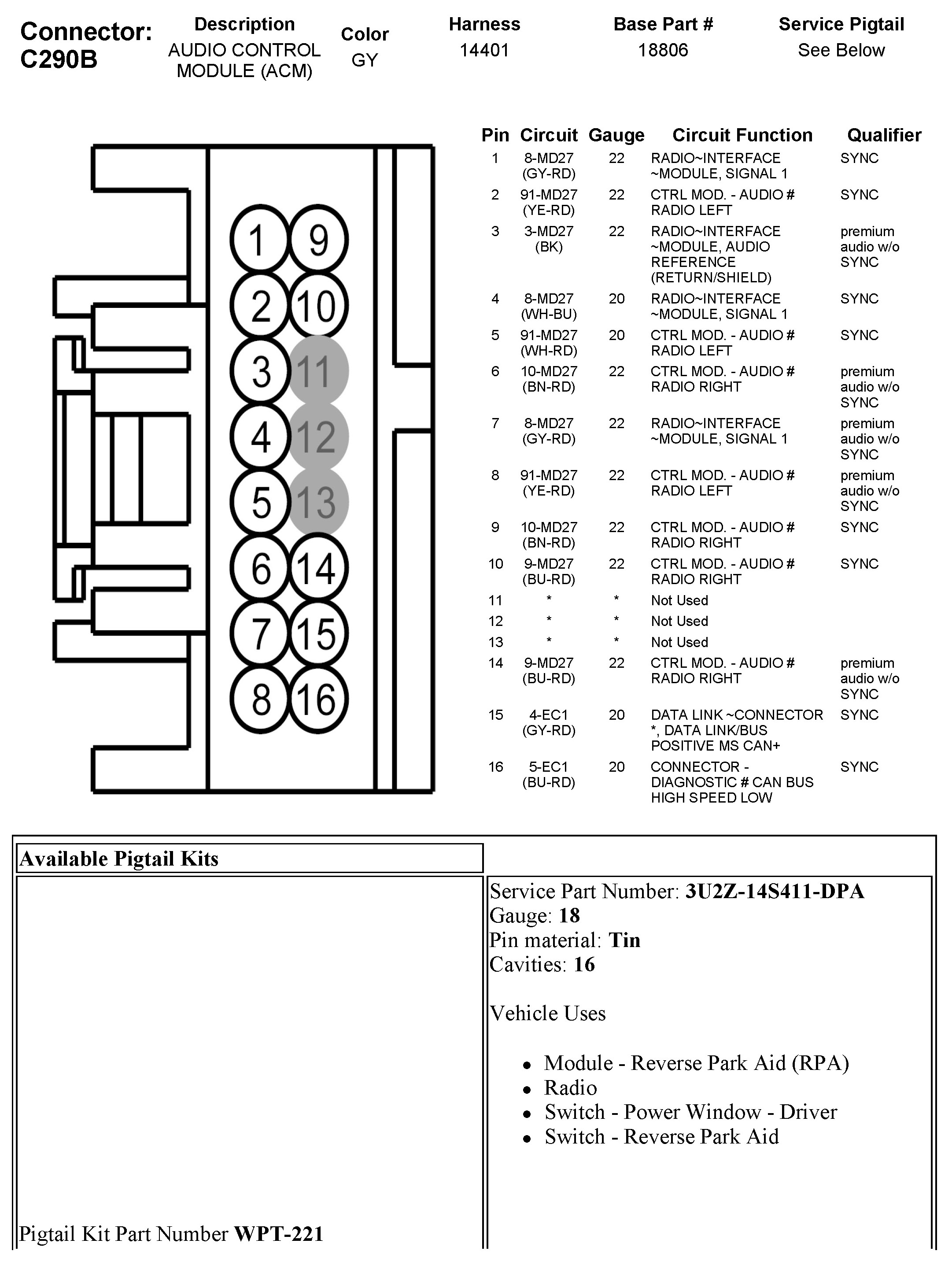

C290B Audio Control Module (ACM)
C290B Audio Control Module (ACM)
