Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C175T Powertrain Control Module (PCM)

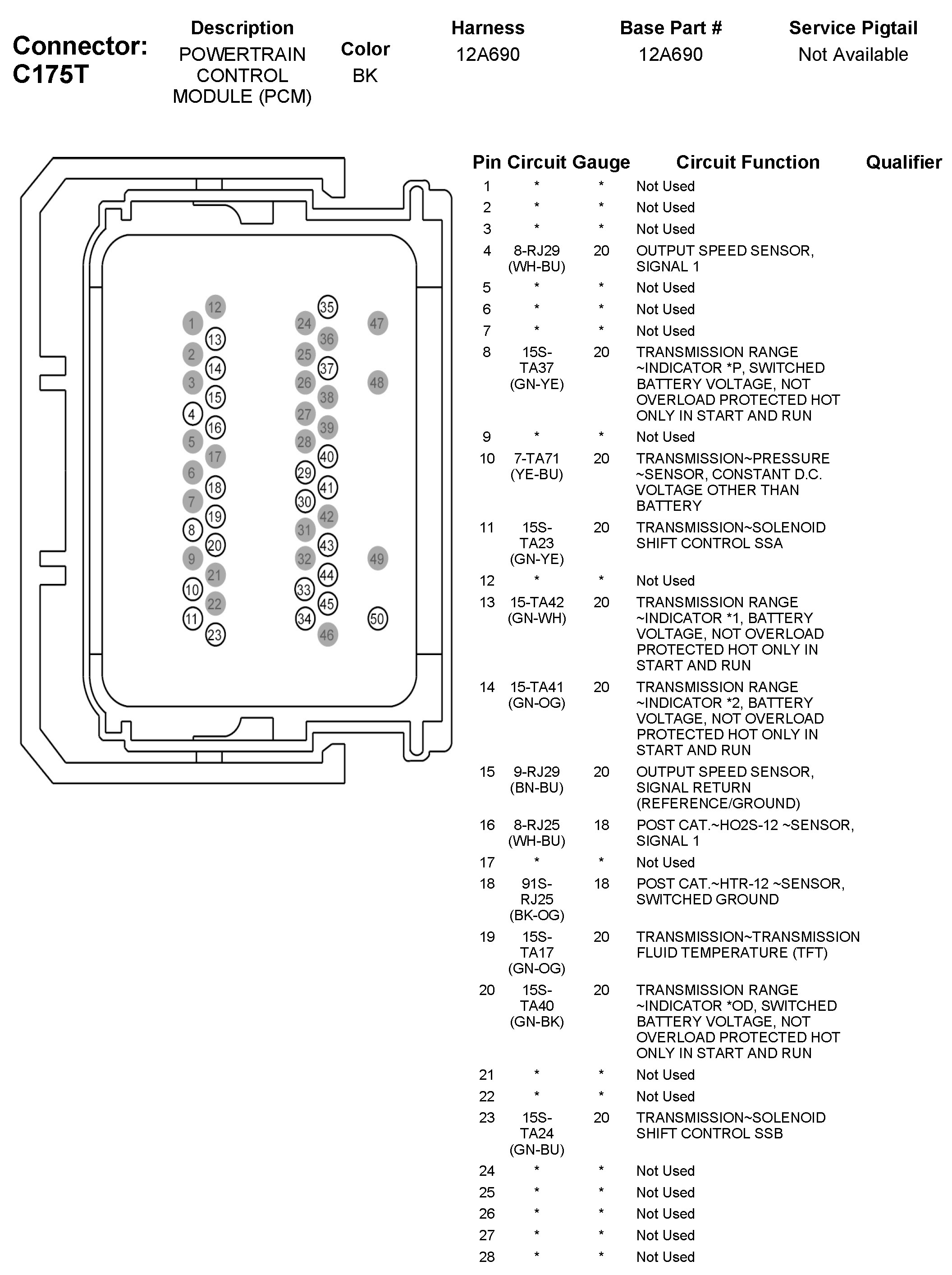

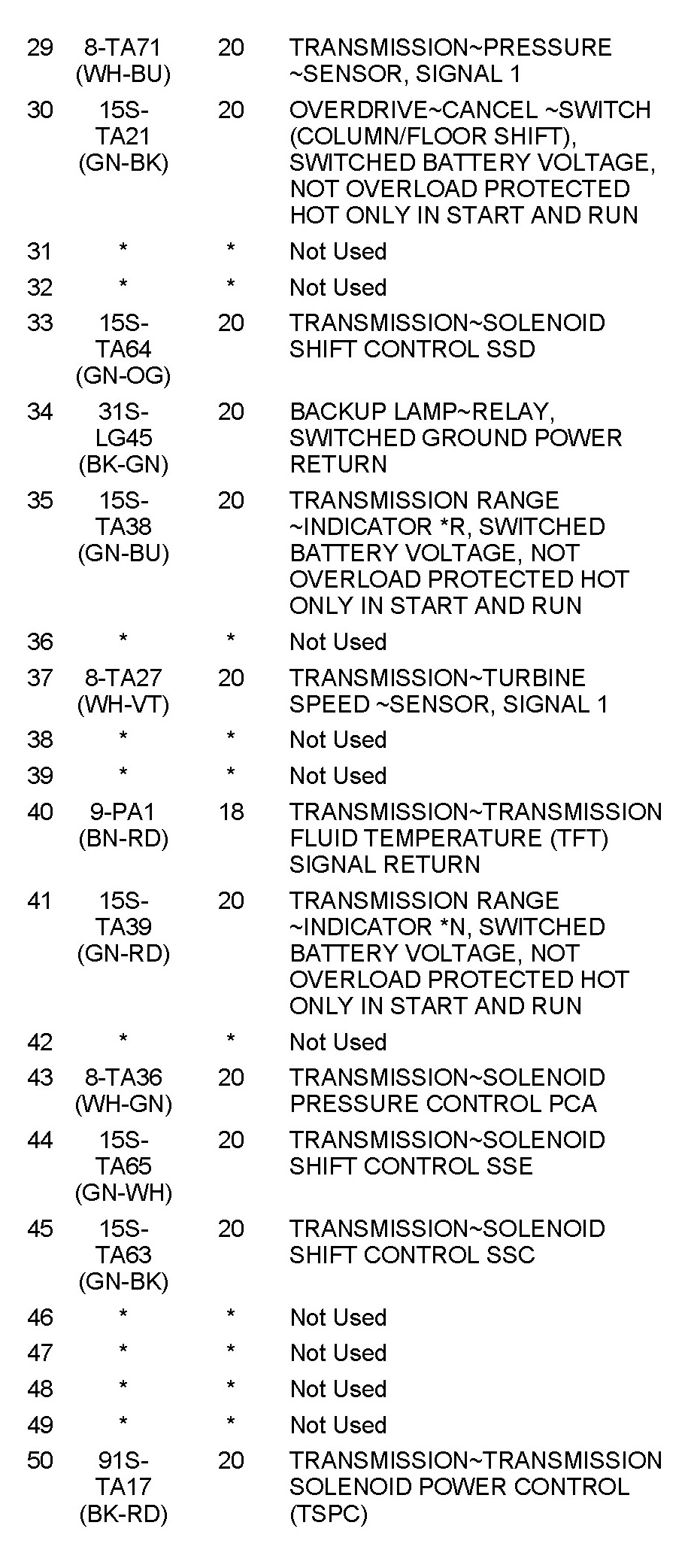

C175T Powertrain Control Module (PCM)
