Engine Lubrication

Download the full database via torrent (~1.1 TB)



Engine Lubrication Components - Exploded View

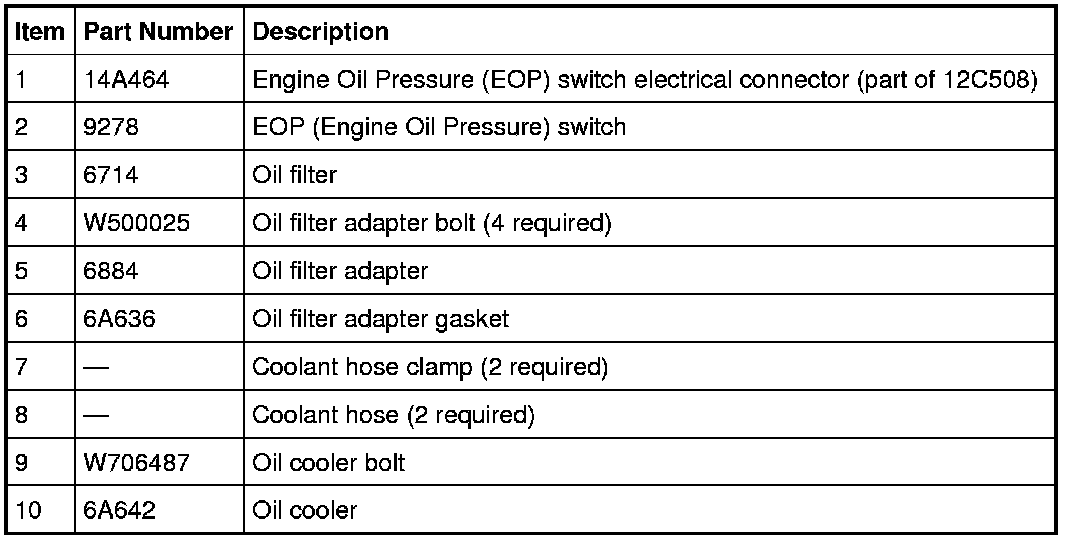

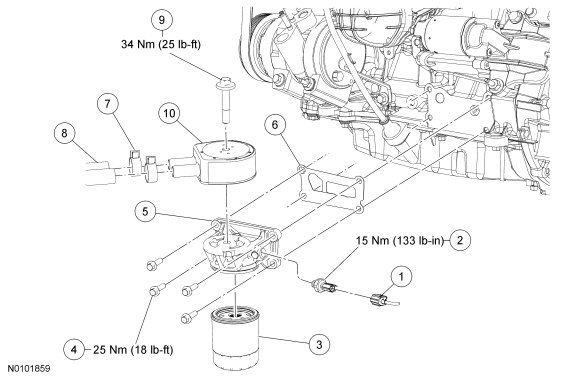

Oil Filter, Oil Filter Adapter, Oil Cooler and Engine Oil Pressure (EOP) Switch

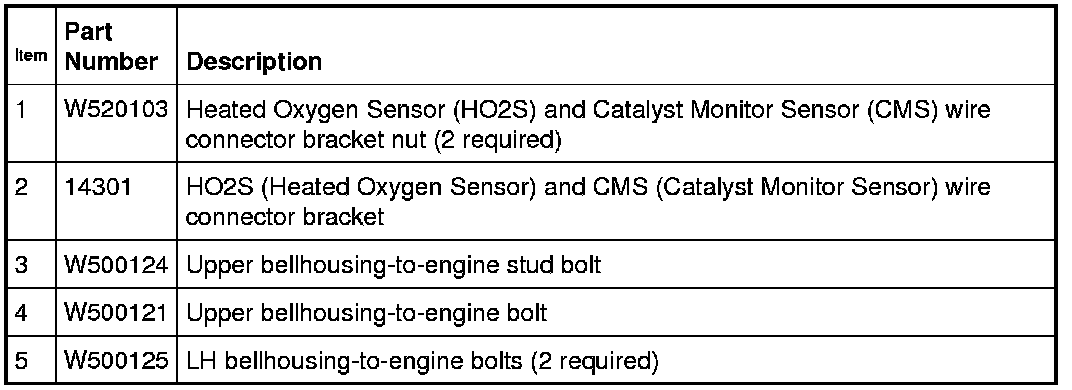

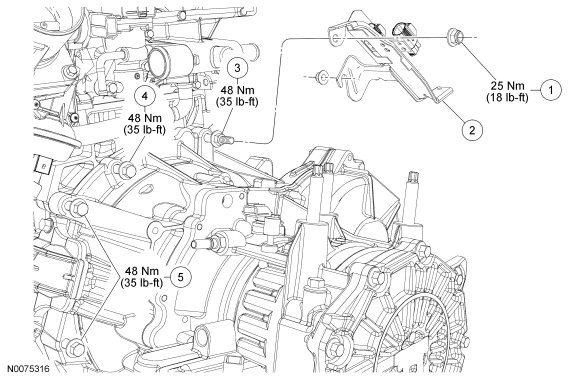

Transaxle Bolts for Oil Pan Removal

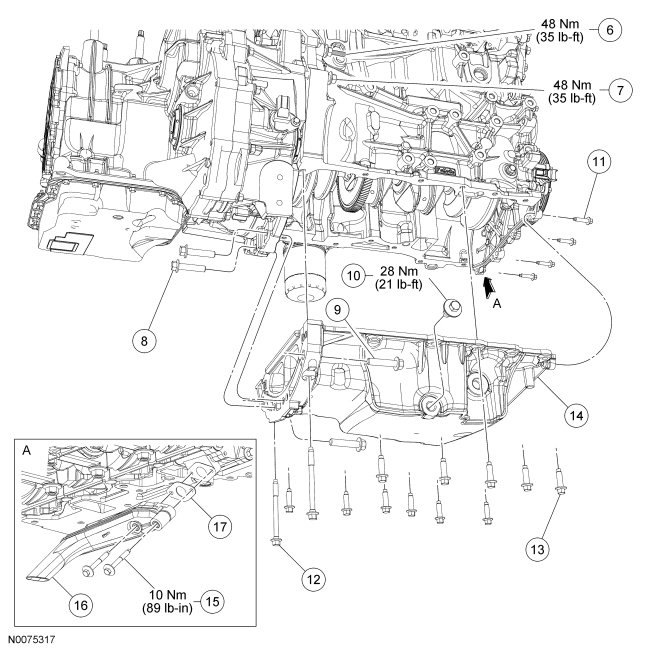

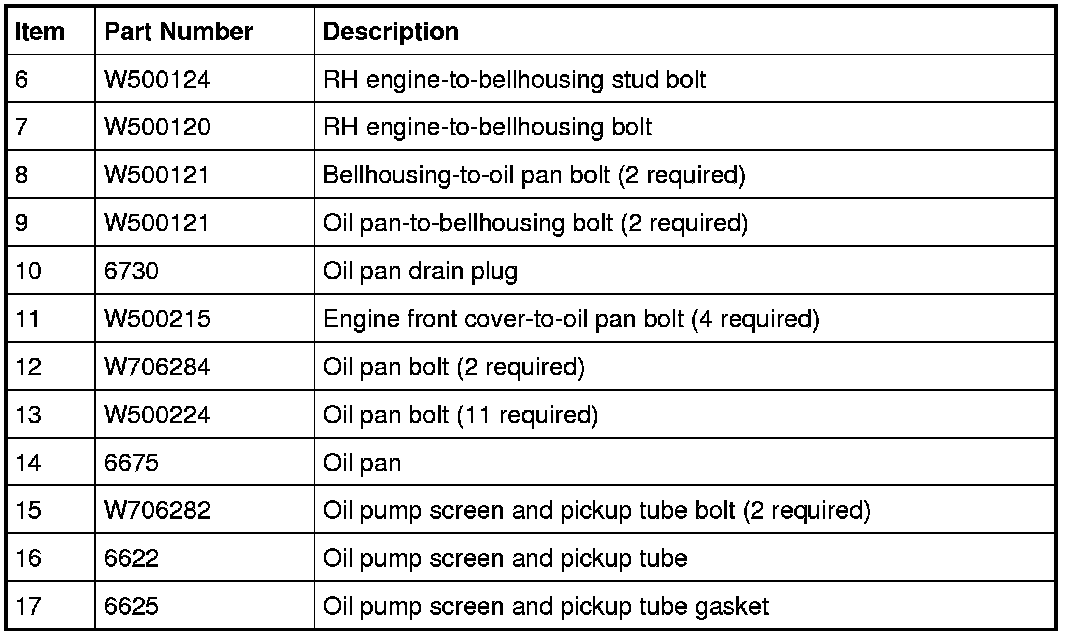

Oil Pan, Oil Pump Screen and Pickup Tube

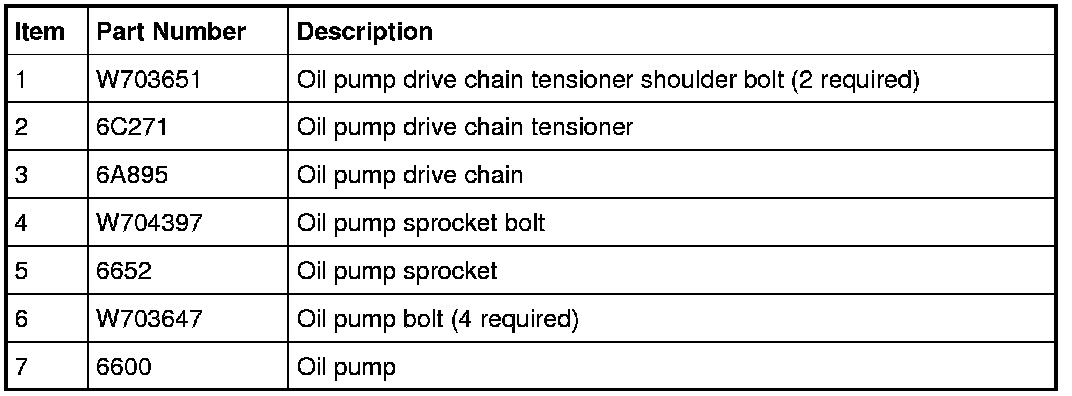

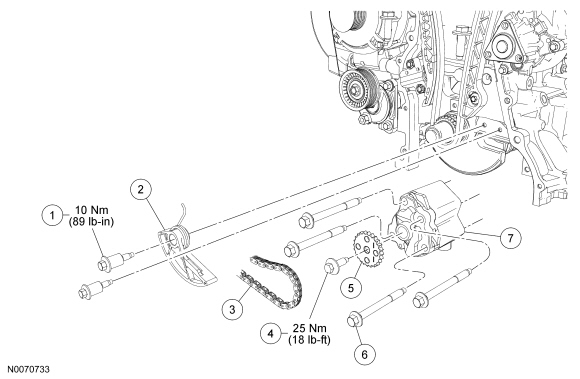

Oil Pump
