Exhaust System
Exhaust System
Download the full database via torrent (~1.1 TB)

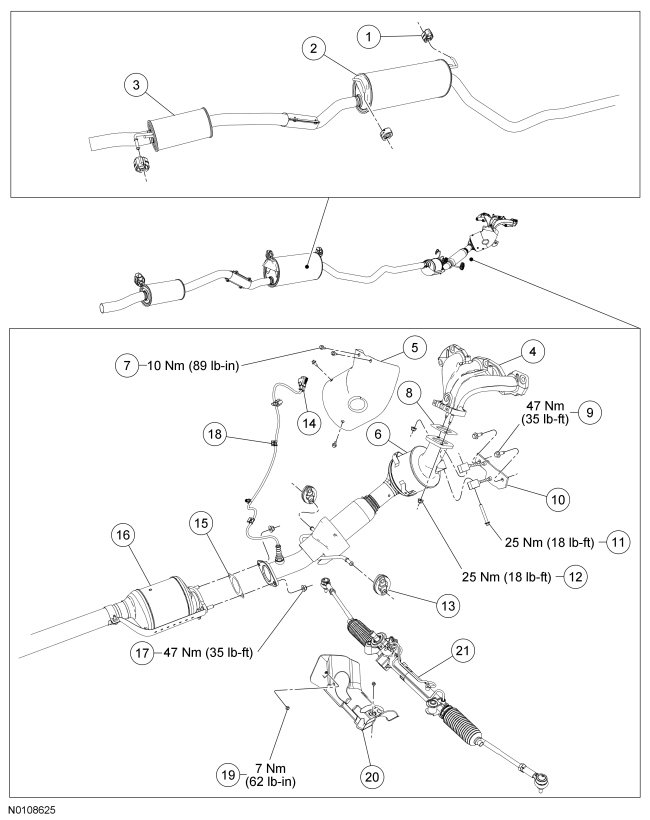

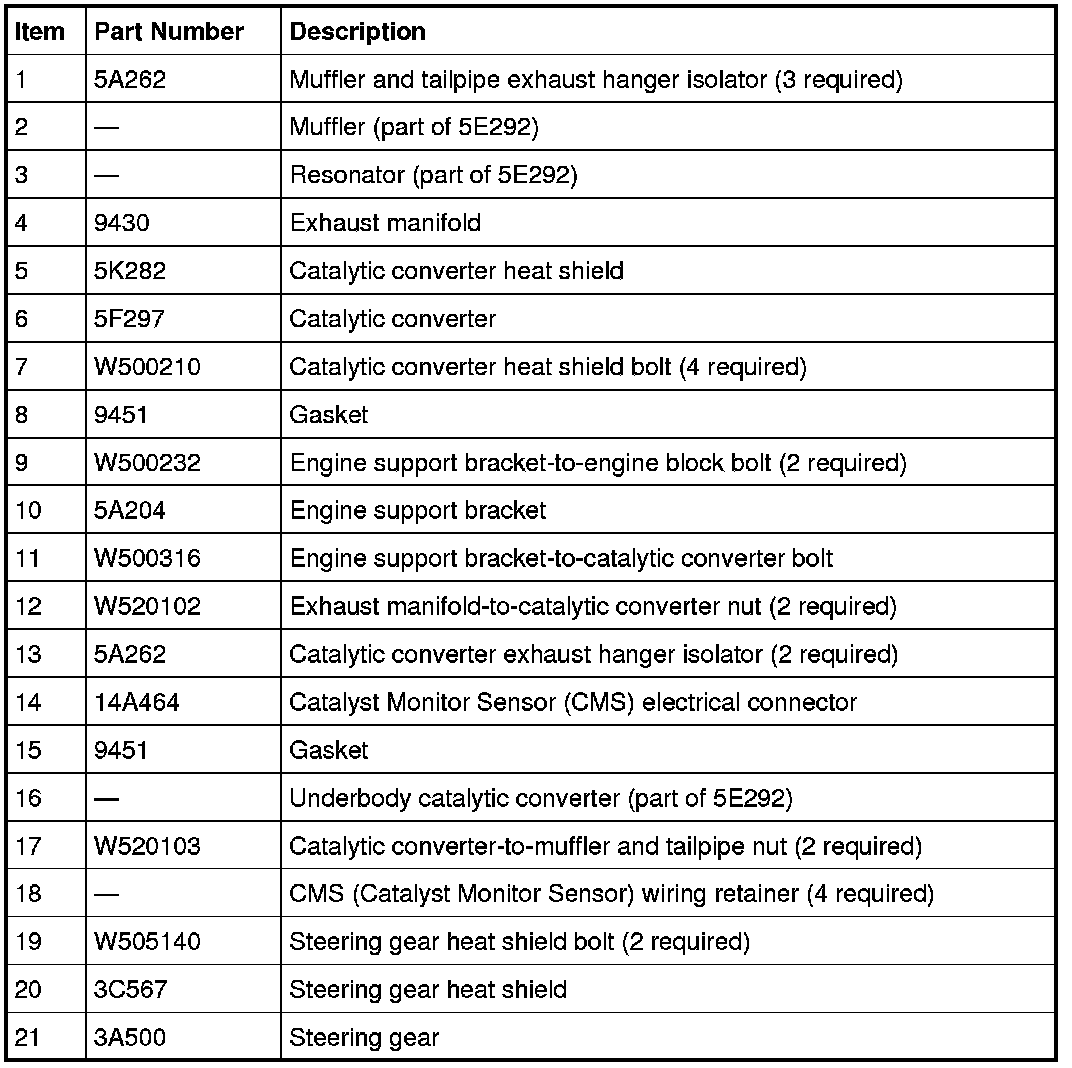

Exhaust System
- Exploded View
