Climate Control Assembly

Download the full database via torrent (~1.1 TB)



Climate Control Assembly

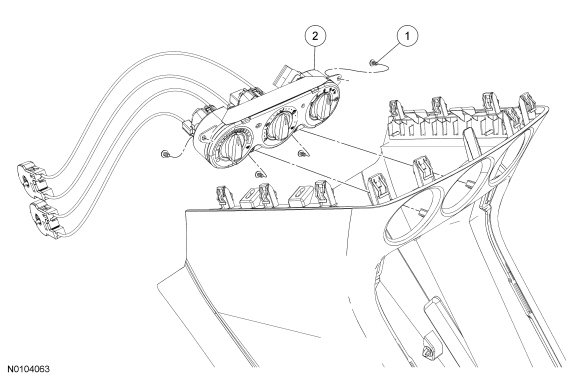

Removal and Installation

1. Remove the floor console.

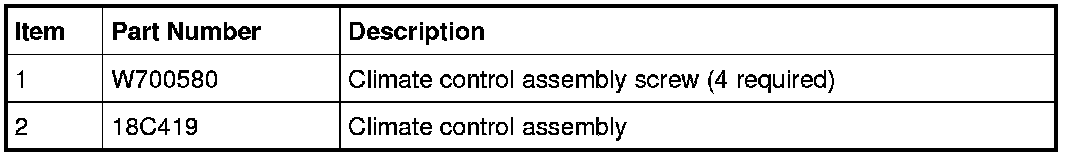

2. Remove the 4 climate control assembly screws.

3. Remove the climate control assembly.

4. To install, reverse the removal procedure.
