Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Ford
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Connector Views
>>

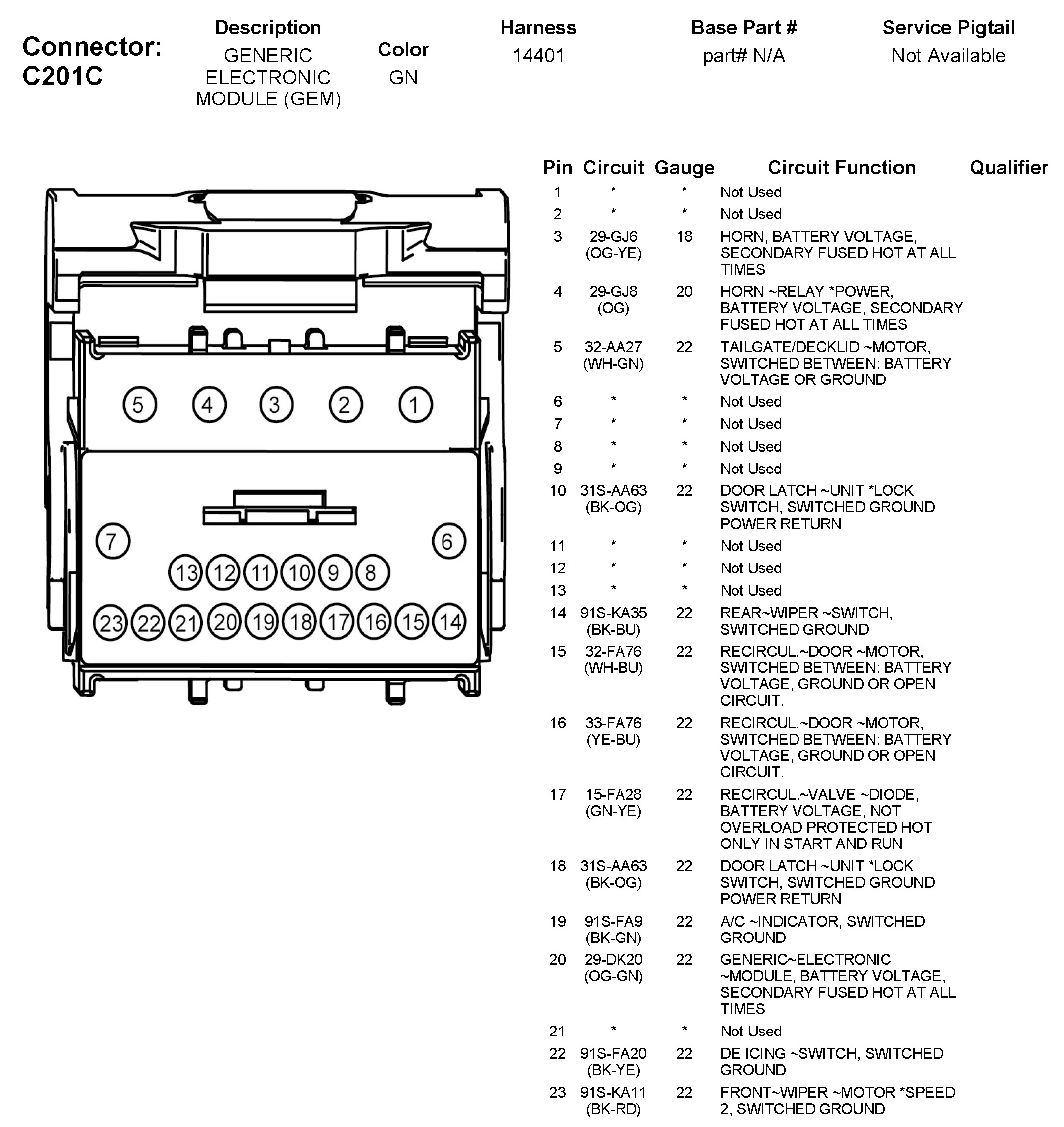

C201C Generic Electronic Module (GEM)
C201C Generic Electronic Module (GEM)
