Engine Temperature Sensor: Service and Repair

Download the full database via torrent (~1.1 TB)

Cylinder Head Temperature (CHT) Sensor

Removal and Installation

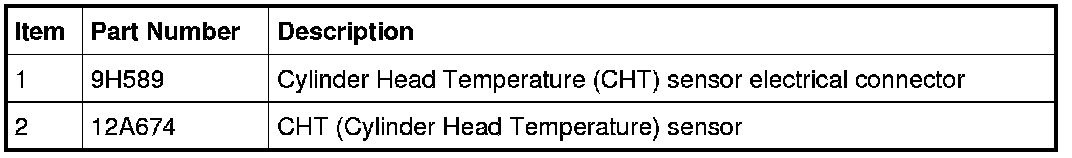

1. Pull back the Cylinder Head Temperature (CHT) sensor cover and disconnect the electrical connector.

2. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 12 Nm (106 lb-in).

3. To install, reverse the removal procedure.
