Remote Function Actuator Module Replacement
NOTE:

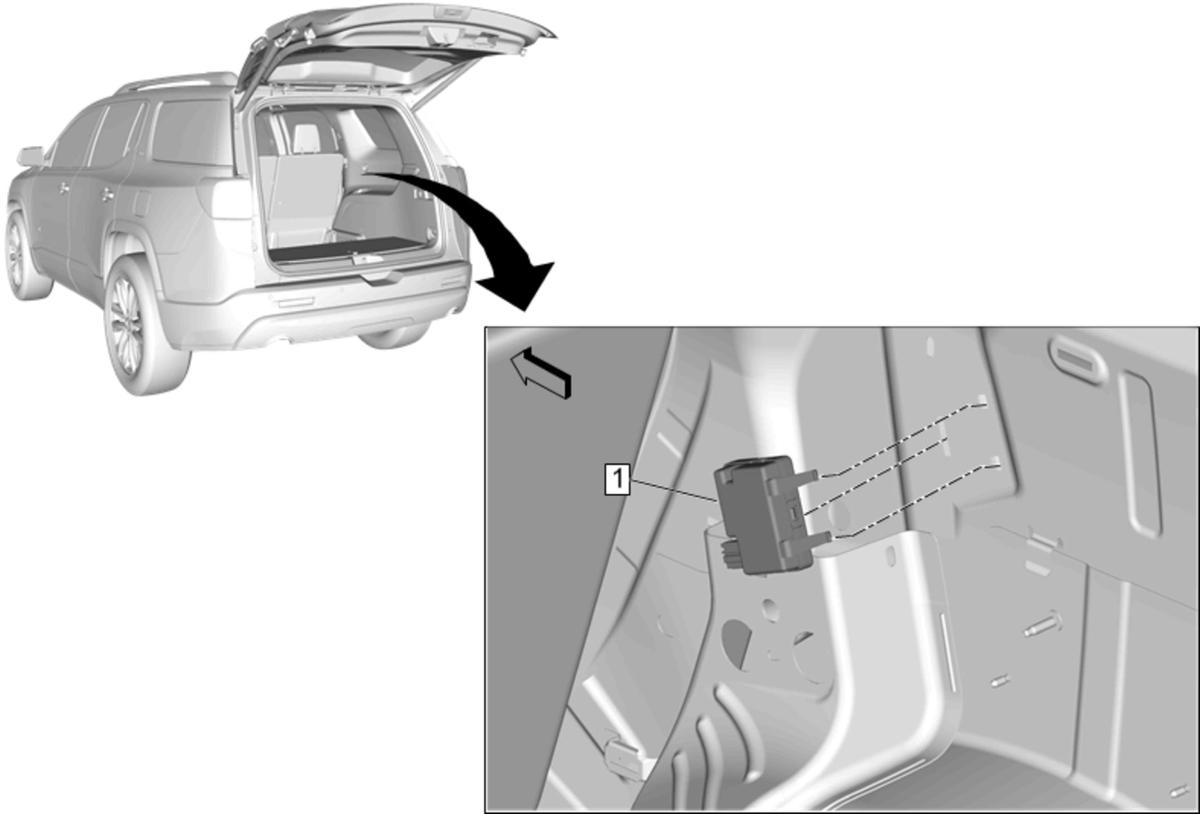

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Left Side with 5 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Right Side with 5 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Left Side with 7 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Right Side with 7 Passenger Seat) |
|
| 1 | Remote Control Door Lock Receiver Procedure
|
