Fuel Pump Circuit

Download the full database via torrent (~1.1 TB)

Remove fuel tank cap. Turn ignition on and listen for fuel pump operating sound. If there is no sound, check fuse, fuel pump relay, fuel pump and all electrical connections.

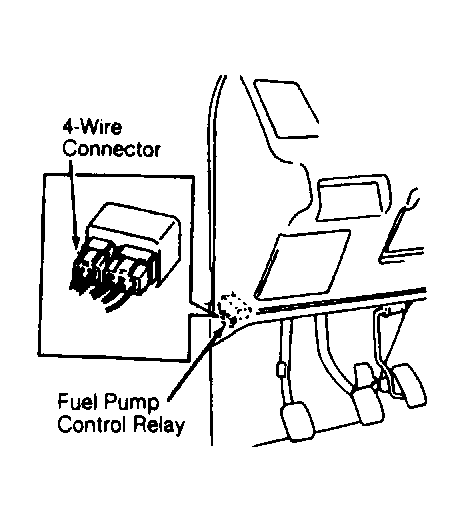

Fig 1: Releasing Tracker Fuel Pressure
G121589Courtesy of GENERAL MOTORS CORP.
