Component Location Graphics

Download the full database via torrent (~1.1 TB)
NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

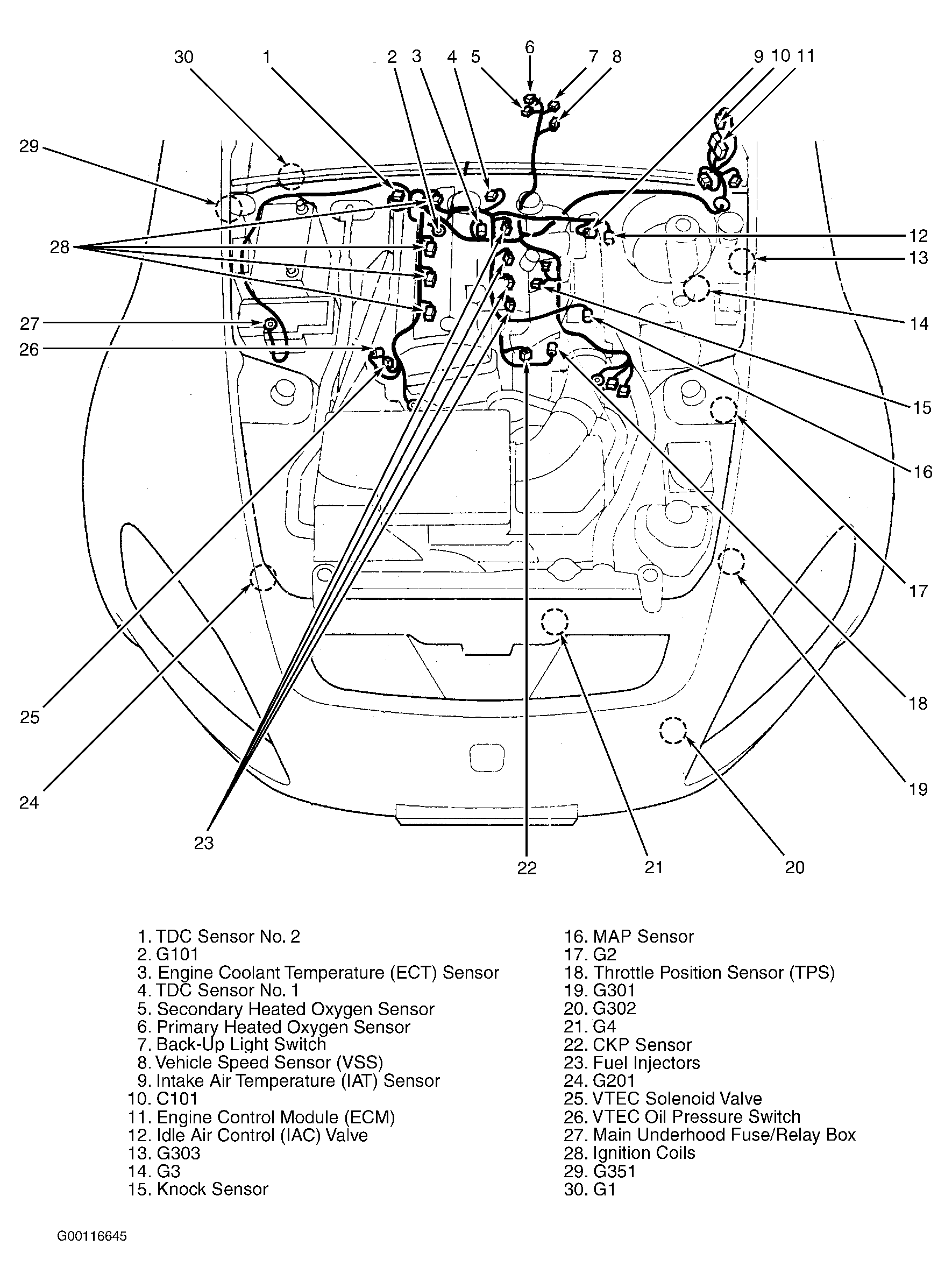

Fig 1: Engine Compartment
G00116645Courtesy of AMERICAN HONDA MOTOR CO., INC.

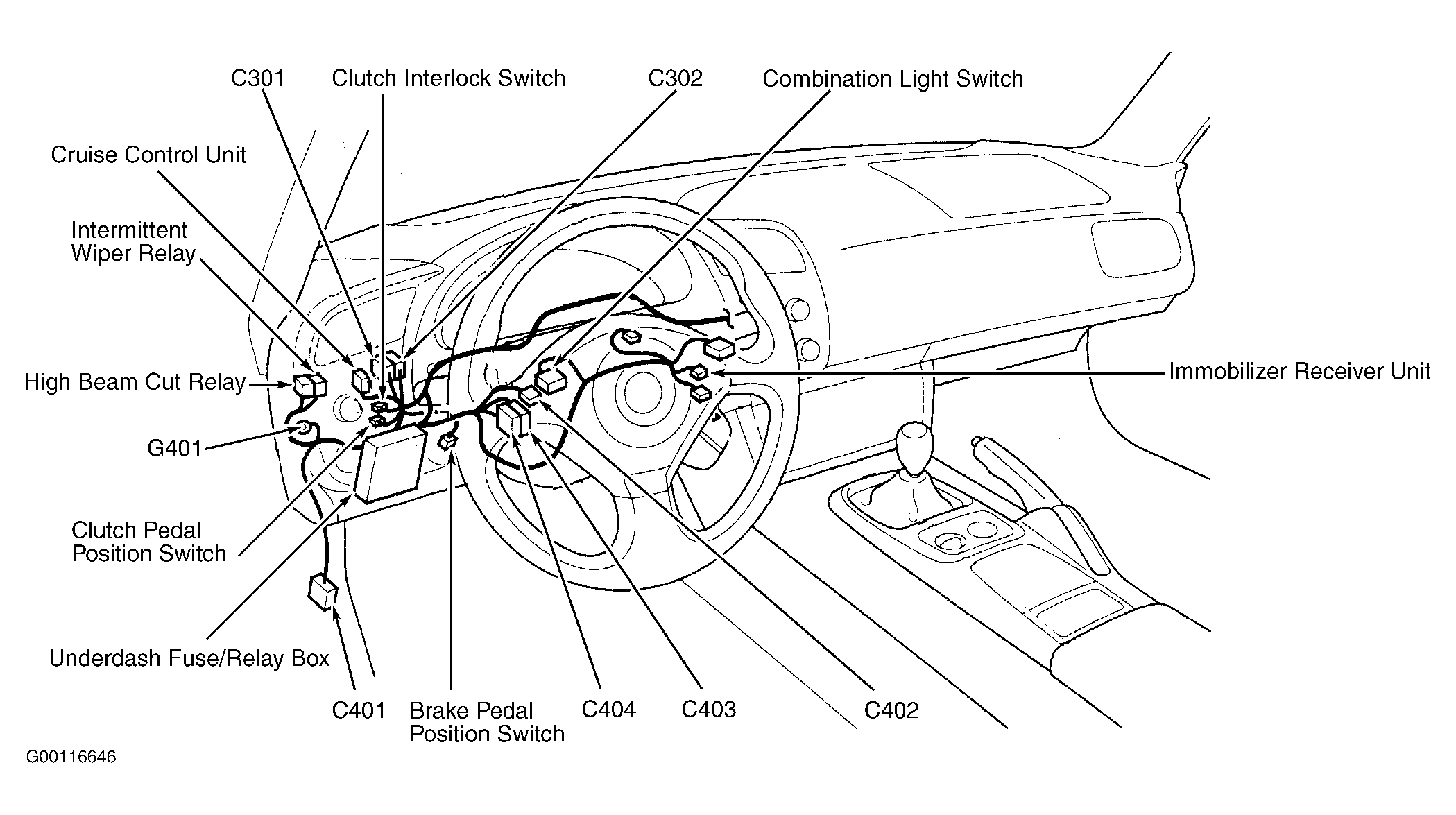

Fig 2: Left Side Of Dash
G00116646Courtesy of AMERICAN HONDA MOTOR CO., INC.

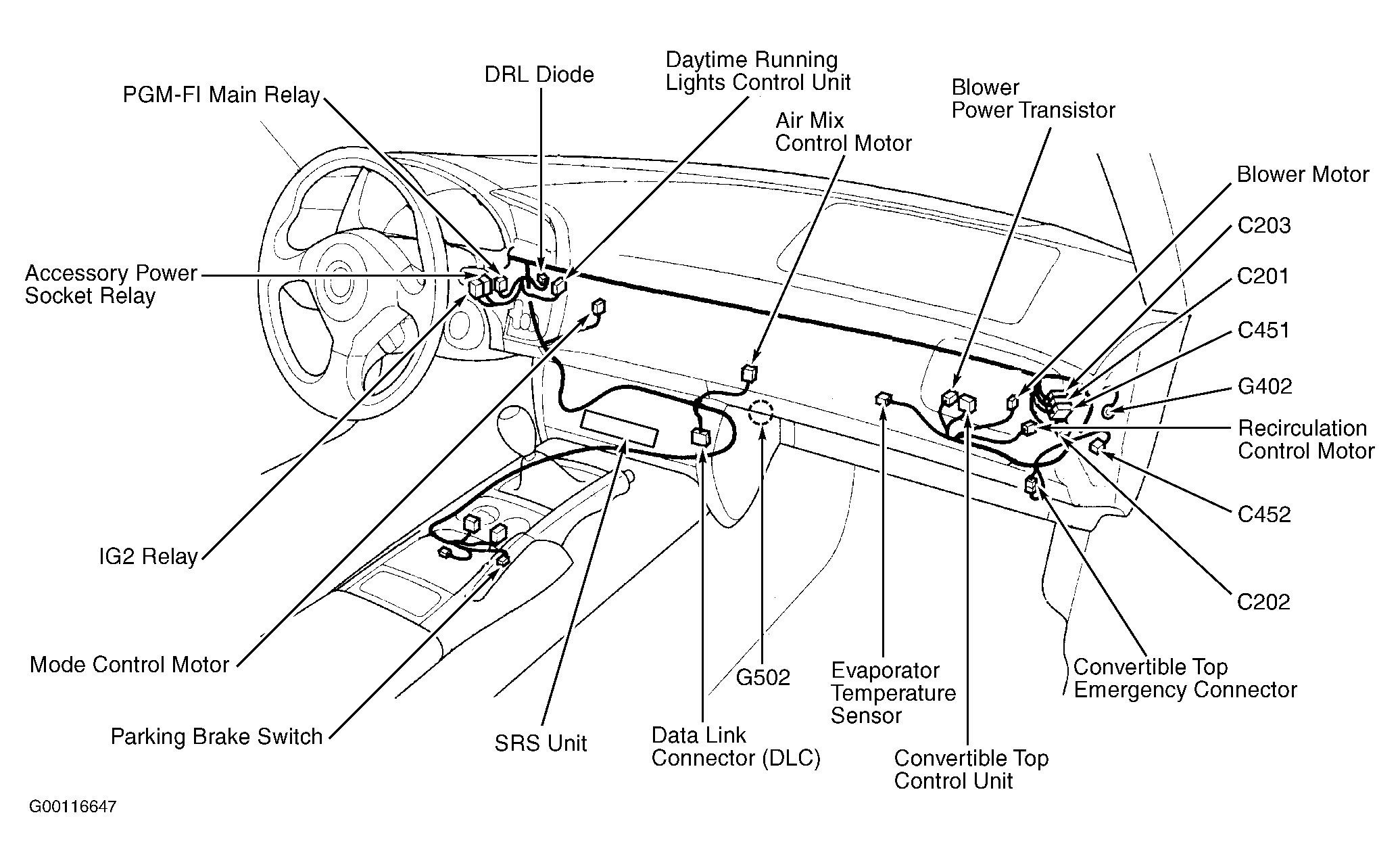

Fig 3: Right Side Of Dash
G00116647Courtesy of AMERICAN HONDA MOTOR CO., INC.
