Throttle Body Disassembly/Reassembly
Throttle Body Disassembly/Reassembly
Download the full database via torrent (~1.1 TB)

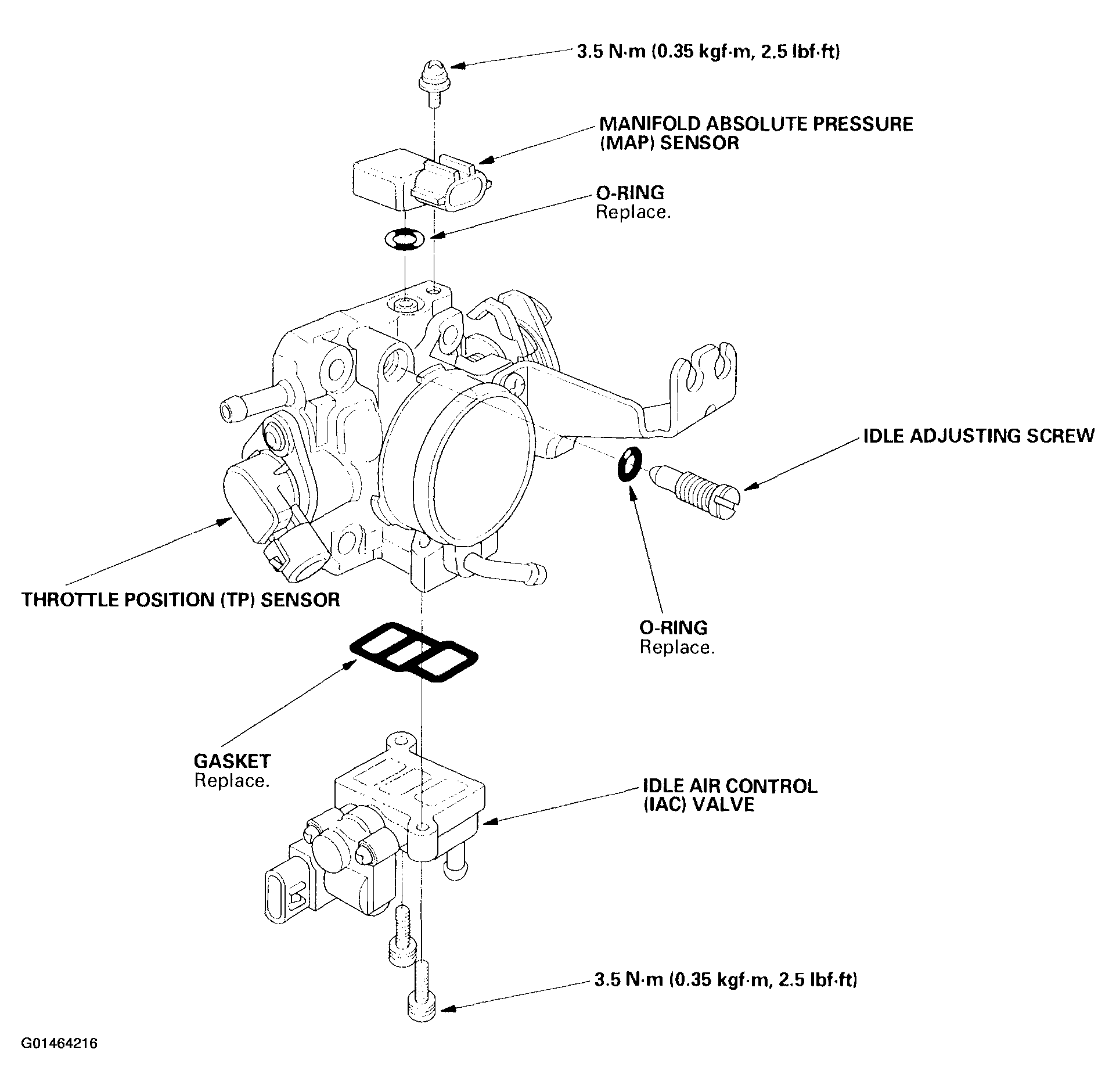

Fig 1: Exploded View Of The Throttle Body Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
