VTEC Oil Pressure Switch Replacement

Download the full database via torrent (~1.1 TB)
  1. Disconnect the VTEC oil pressure switch connector, then remove the VTEC oil pressure switch (A).

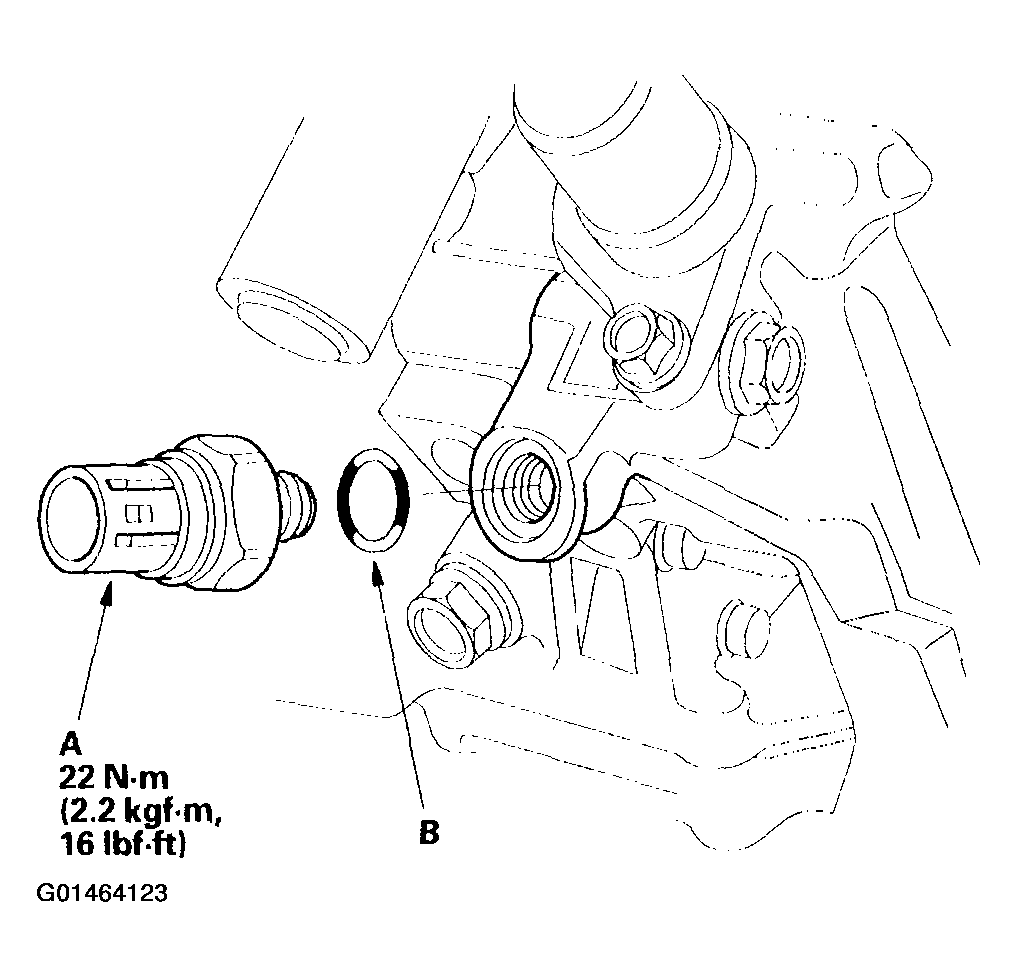

    Fig 1: Removing The VTEC Oil Pressure Switch
    G01464123Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the switch in the reverse order of removal with a new O-ring (B).
