FTP Sensor Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT  ).
  2. Remove the FTP sensor (A).

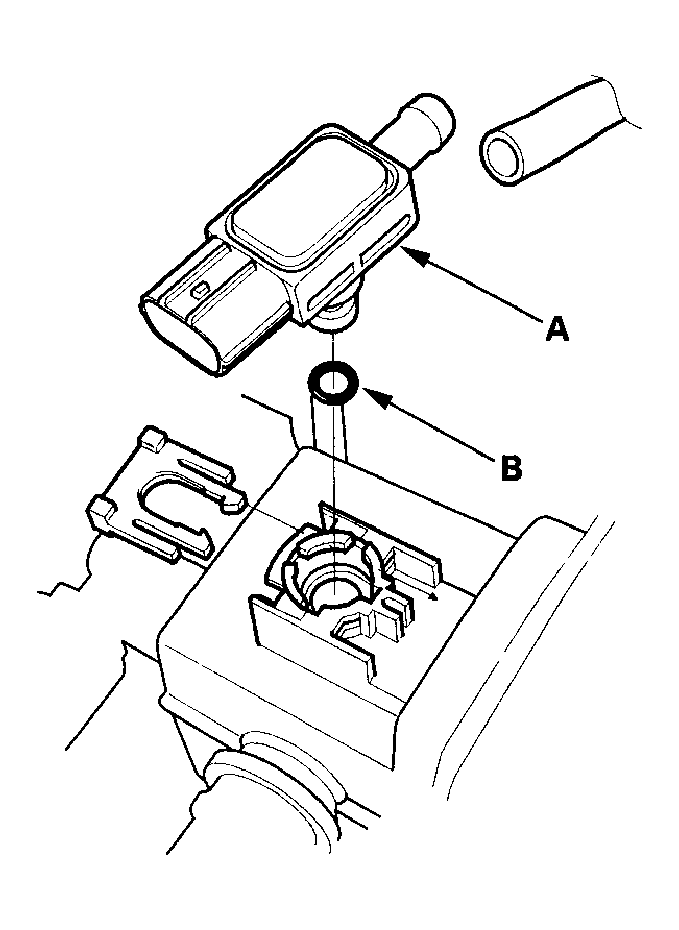

    Fig 1: Removing FTP Sensor
    G04546274Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal with a new O-ring (B).
