Fuel Tank Vapor Control Float Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control float (A) from the fuel tank (B).

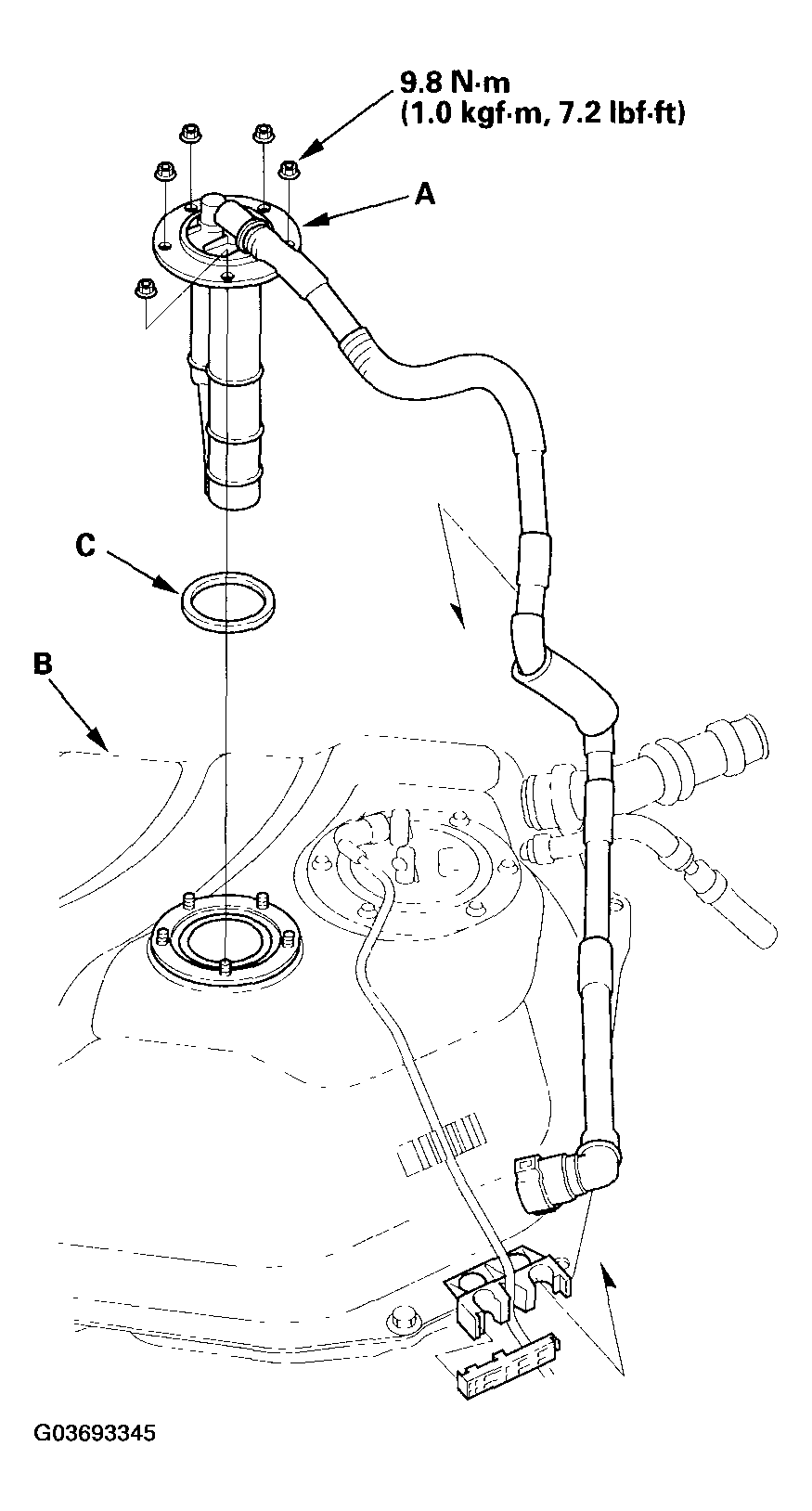

    Fig 1: Fuel Tank Vapor Control Float & Fuel Tank With Torque Specifications
    G03693345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the float in the reverse order of removal with a new packing (C).
