Knock Sensor Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the knock sensor 1P connector (A).

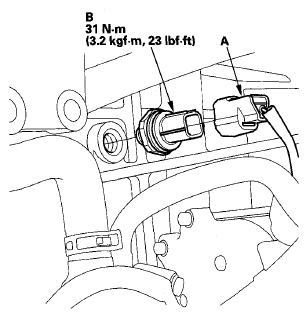

    Fig 1: Lnock Sensor 1P Connector With Torque Specifications
    G06231781Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the knock sensor (B).
  4. Install the parts in the reverse order of removal.
