Accelerator Pedal Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the throttle cable (A) from the accelerator pedal (B) (see THROTTLE CABLE REMOVAL/INSTALLATION  ).

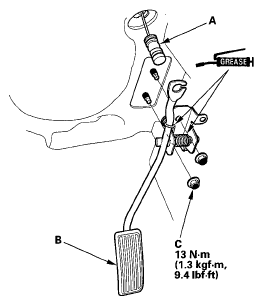

    Fig 1: Throttle Cable & Accelerator Pedal With Torque Specifications
    G05449273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nuts (C) and the accelerator pedal.
  3. Install the parts in the reverse order of removal.
