Air Cleaner Removal/Installation

Remove the clips (A).

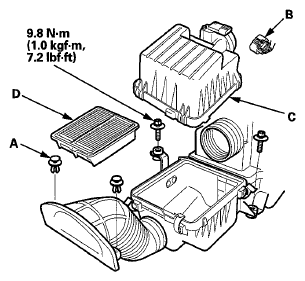

Fig 1: MAF Sensor/IAT Sensor Connector And Air Cleaner Element With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the MAF sensor/IAT sensor connector (B), then remove the air cleaner housing cover (C), and the air cleaner element (D).
NOTE: Be careful not to damage the MAF sensor/IAT sensor on the air cleaner housing cover.
Remove the air cleaner housing (A).

Fig 2: Identifying Air Cleaner Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
