MAP Sensor Replacement

Download the full database via torrent (~1.1 TB)
  1. Disconnect the MAP sensor connector (A).

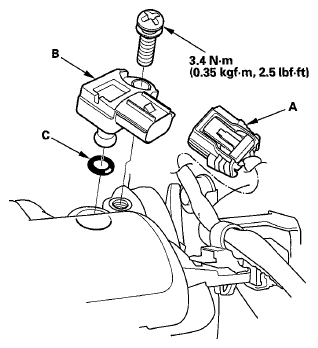

    Fig 1: MAP Sensor Connector, MAP Sensor & O-Ring With Torque Specifications
    G05953013Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the MAP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
