DTC P1890: Problem in CVT Speed Control System
>>
Notes
DTC P1890: Problem in CVT Speed Control System: Notes
Download the full database via torrent (~1.1 TB)

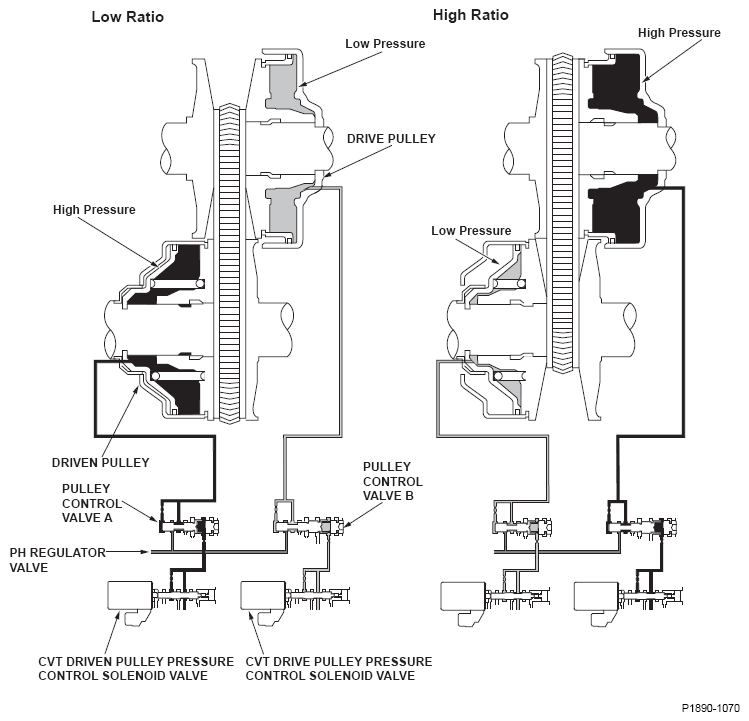

Fig 1: CVT Speed Control - System Diagram
