DTC P0502: Problem in CVT Speed Sensor Circuit: Notes

Download the full database via torrent (~1.1 TB)

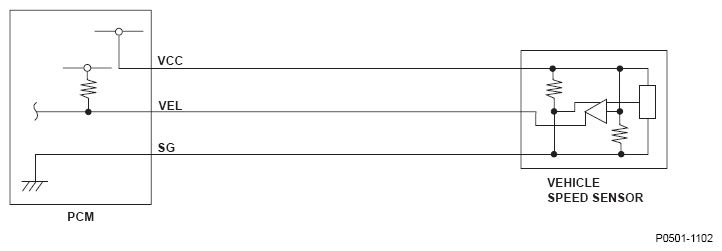

Fig 1: PCM And Vehicle Speed Sensor - Circuit Diagram
G08568490

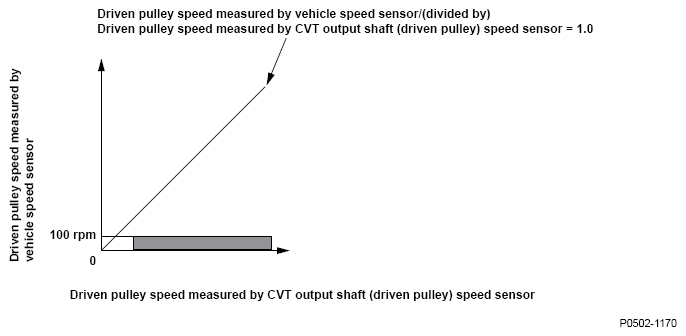

Fig 2: Driven Pulley Speed Versus Driven Pulley Speed Graph
G08568494
