PCV Valve Replacement

Download the full database via torrent (~1.1 TB)
  1. Disconnect the hose (A).

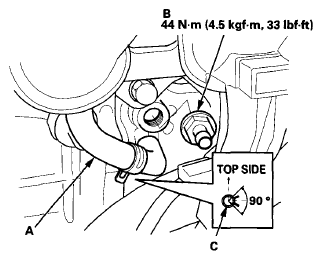

    Fig 1: Identifying PCV Valve And Hose
    G08092614Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the PCV valve (B).
  3. Install the parts in the reverse order of removal.
    NOTE: Make sure the hose clamp (C) is positioned as shown.
