Body Control Module (BCM) - C2
Body Control Module (BCM) - C2
Download the full database via torrent (~1.1 TB)

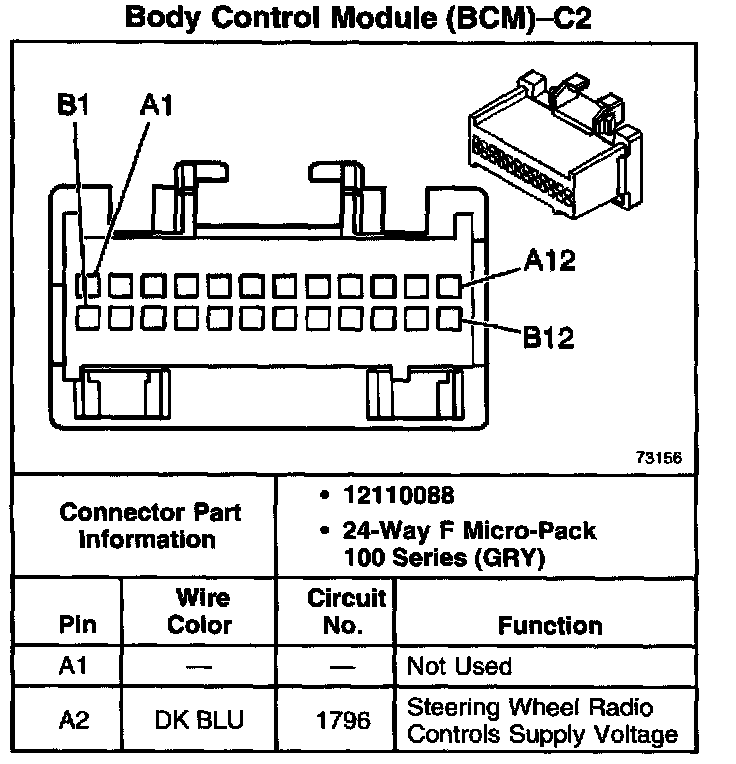

Body Control Module (BCM) - C2 Part 1:

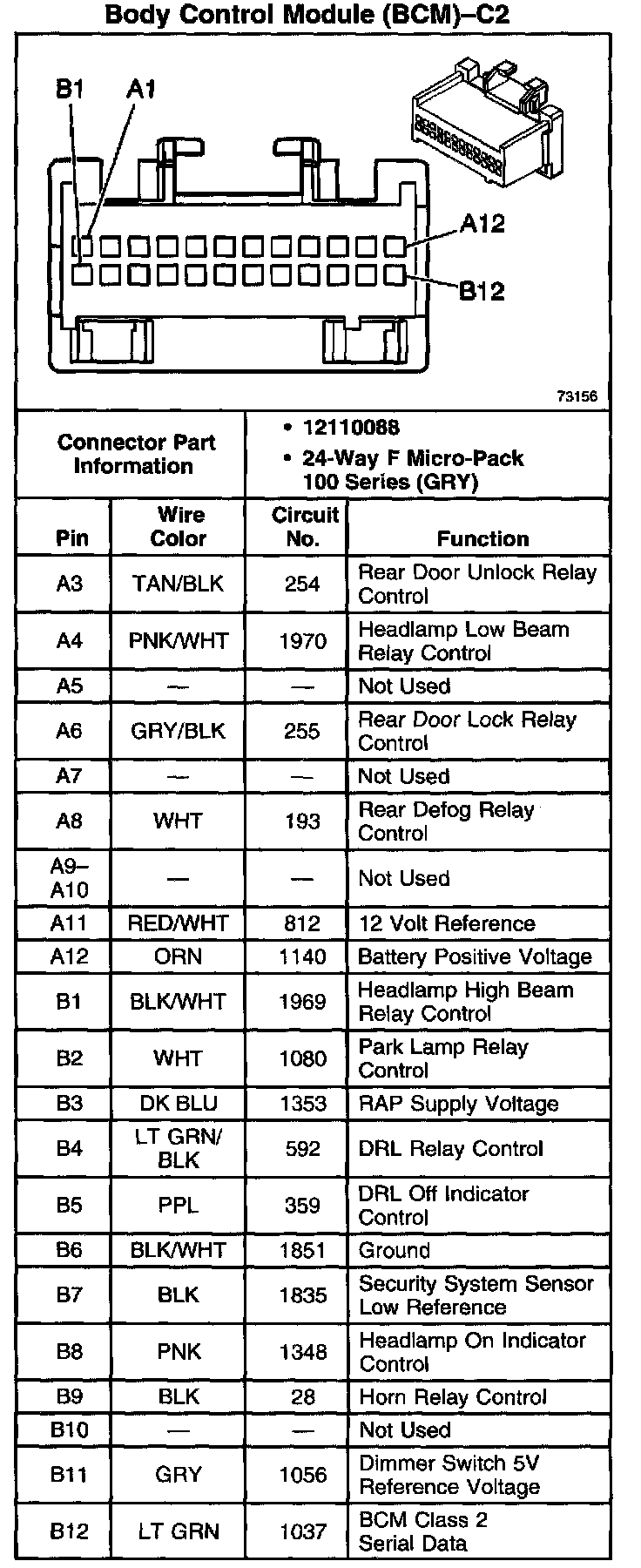

Body Control Module (BCM) - C2 Part 2:
