Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) - C1

Powertrain Control Module (PCM) - C1

Download the full database via torrent (~1.1 TB)

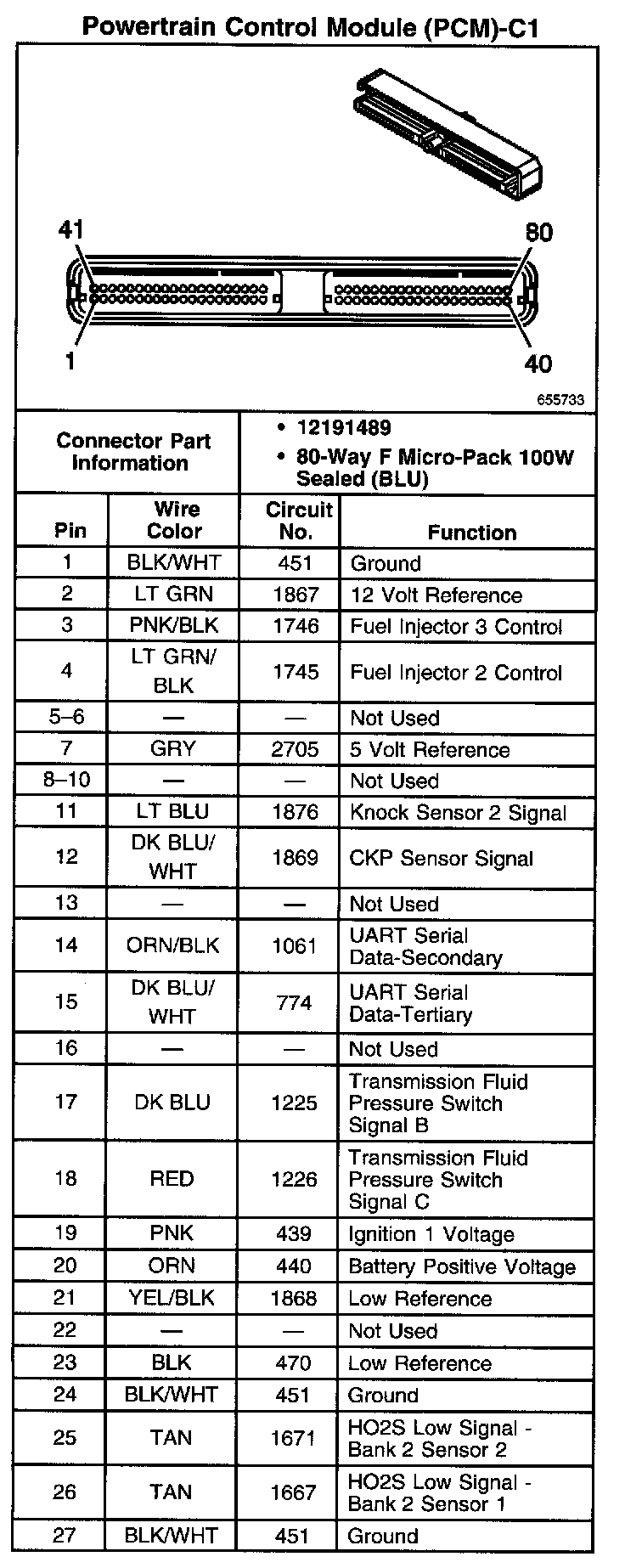

Powertrain Control Module (PCM) - C1 Part 1:

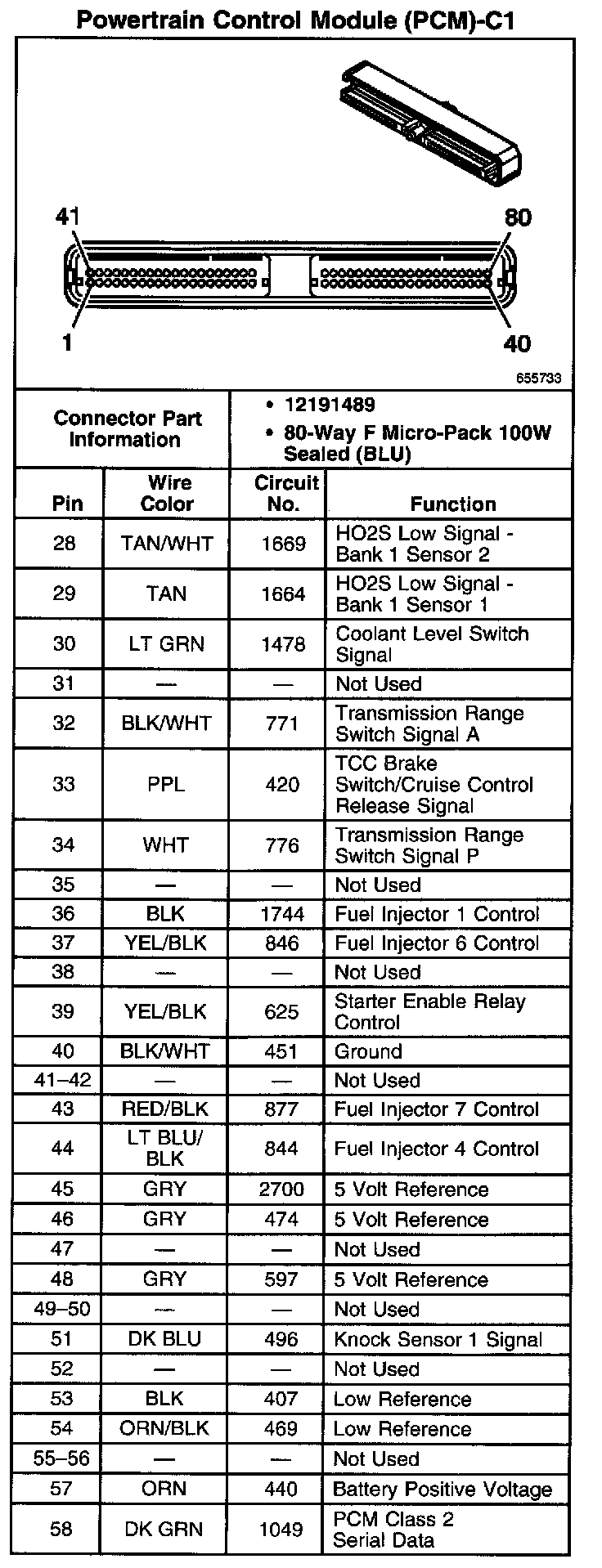

Powertrain Control Module (PCM) - C1 Part 2:

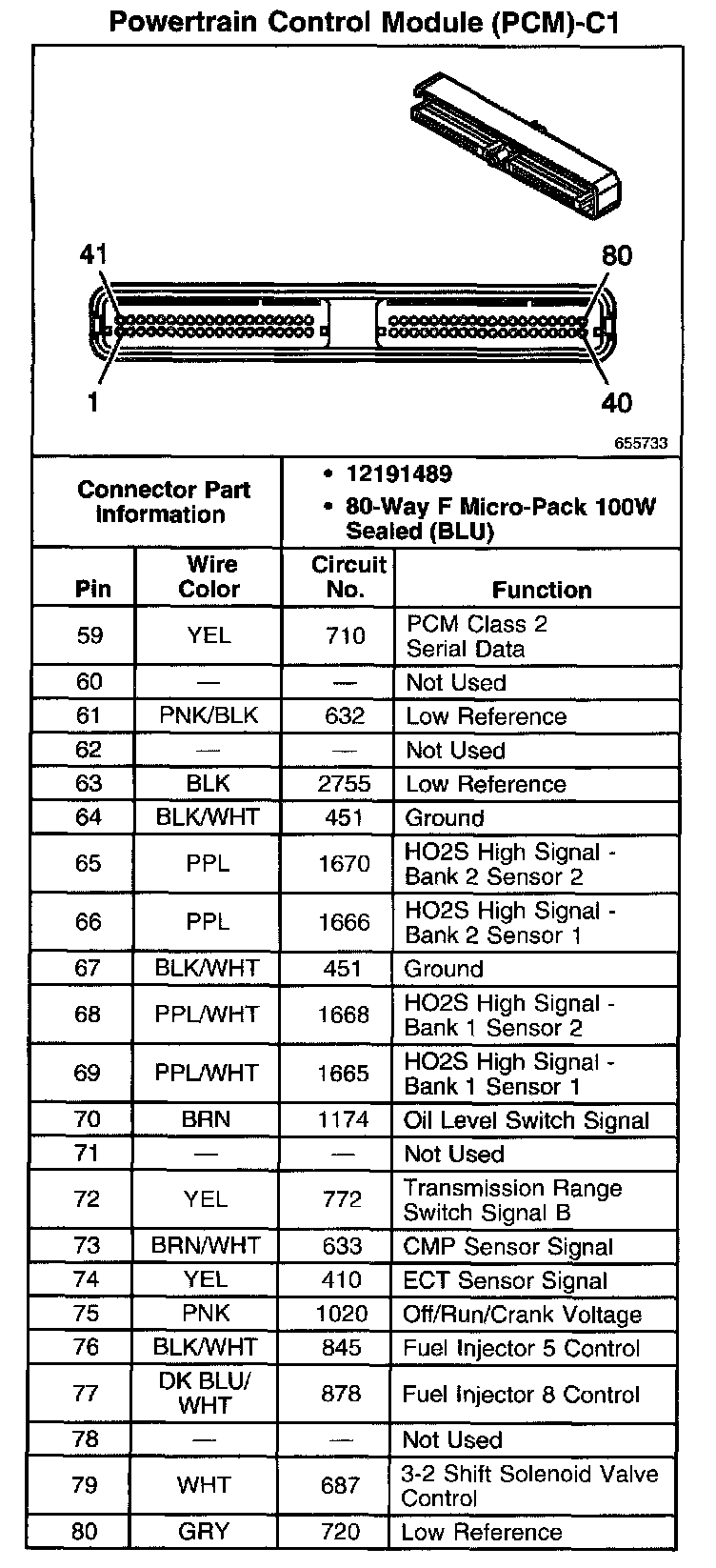

Powertrain Control Module (PCM) - C1 Part 3:
