Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case
Download the full database via torrent (~1.1 TB)

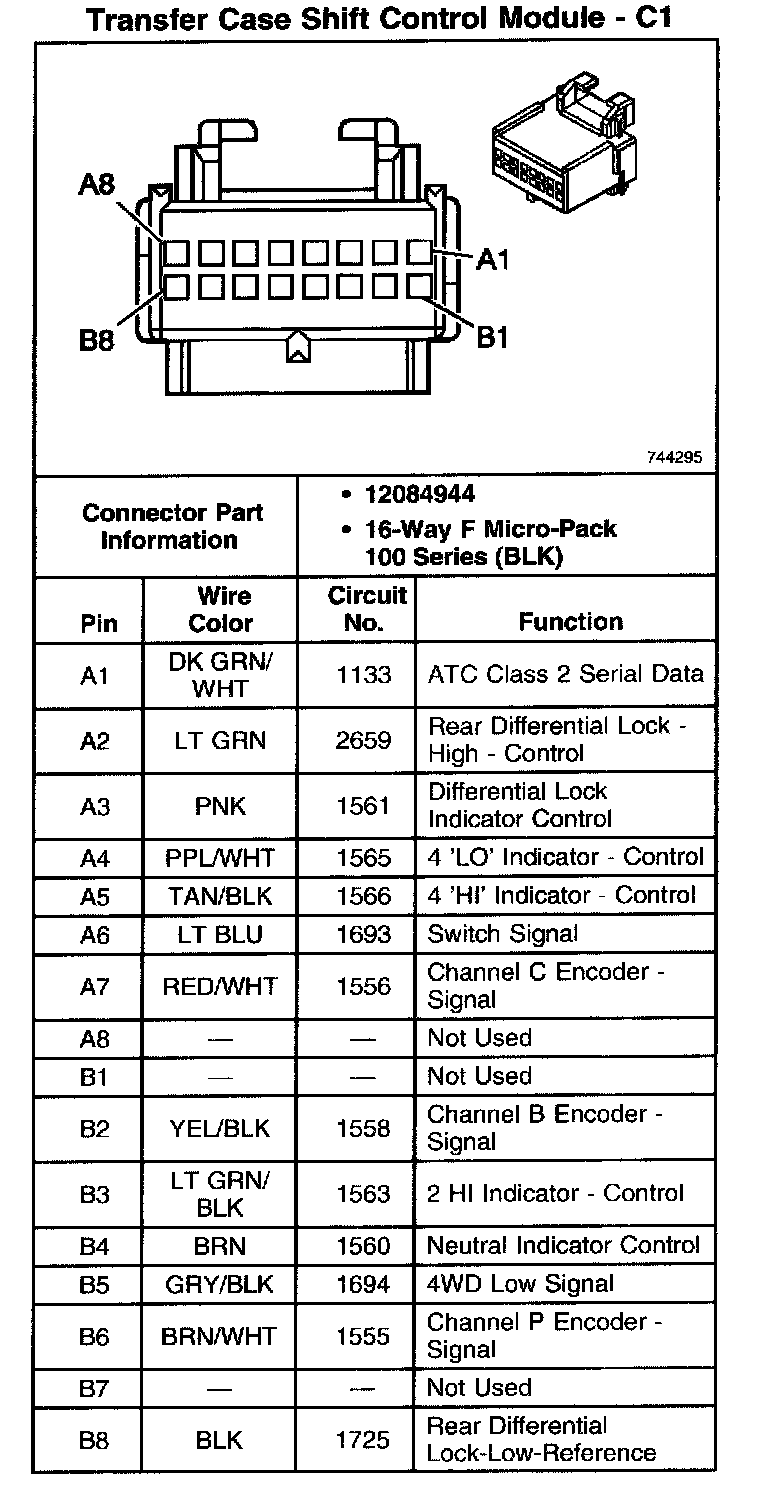

Transfer Case Shift Control Module - C1:

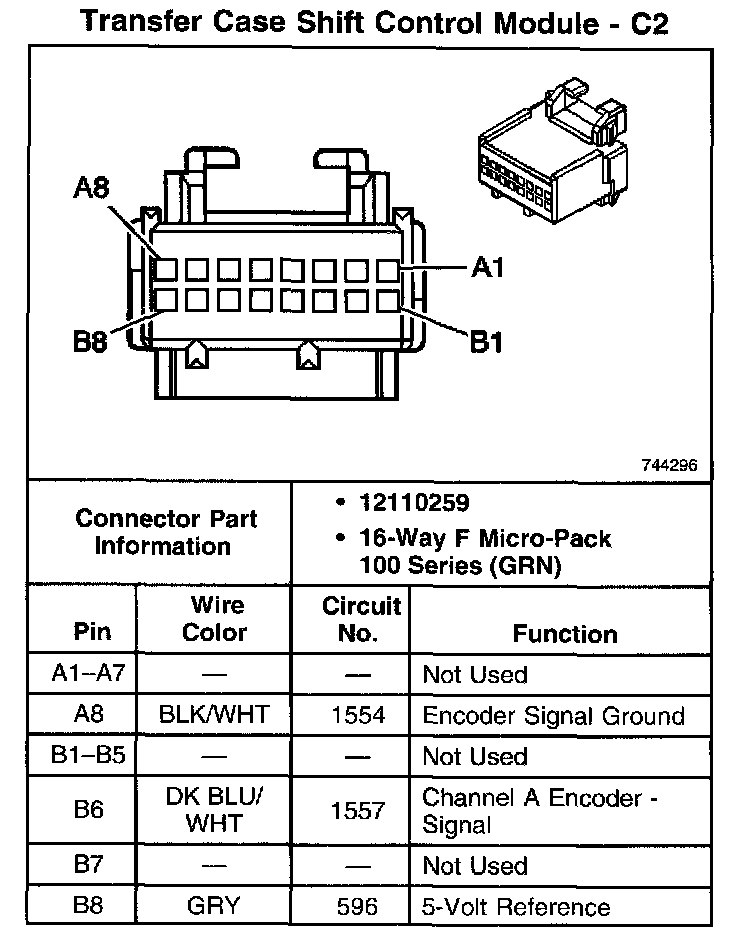

Transfer Case Shift Control Module - C2:

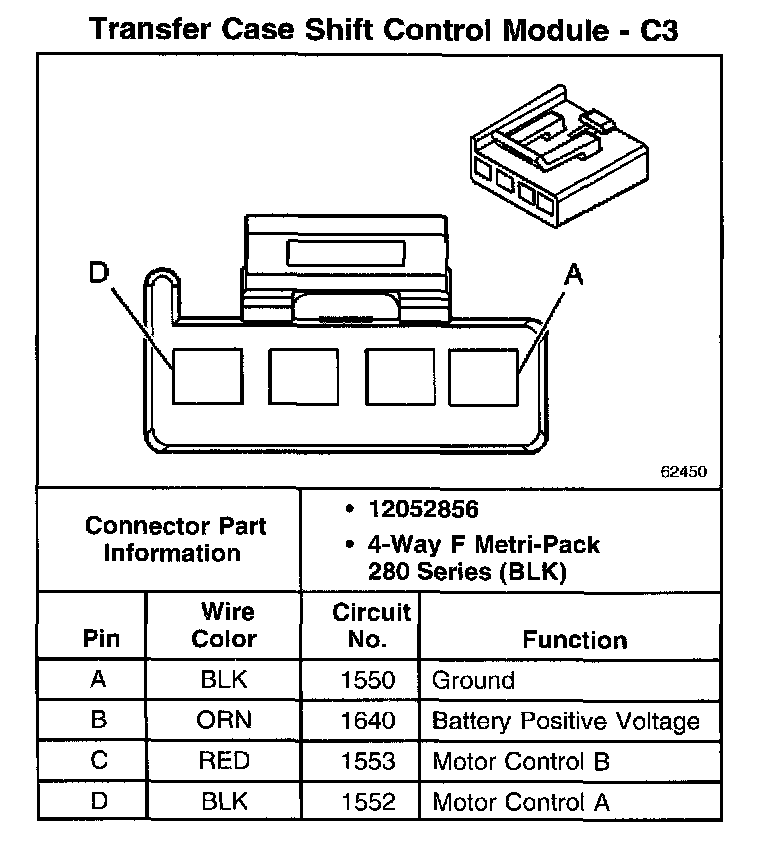

Transfer Case Shift Control Module - C3:
