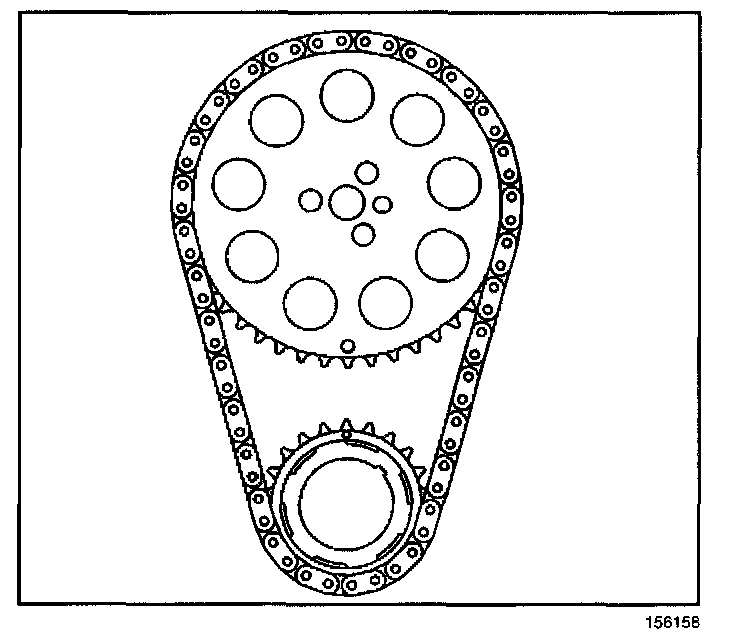

Timing Component Alignment Marks: Locations

- Rotate the crankshaft sprocket until the alignment mark is in the 12 o'clock position.

IMPORTANT:
- Properly locate the camshaft sprocket locating pin with the camshaft sprocket alignment hole.
- The sprocket teeth and timing chain must mesh.
- The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly. Locate the camshaft sprocket alignment mark in the 6 o'clock position.
