Installation Procedure

Download the full database via torrent (~1.1 TB)

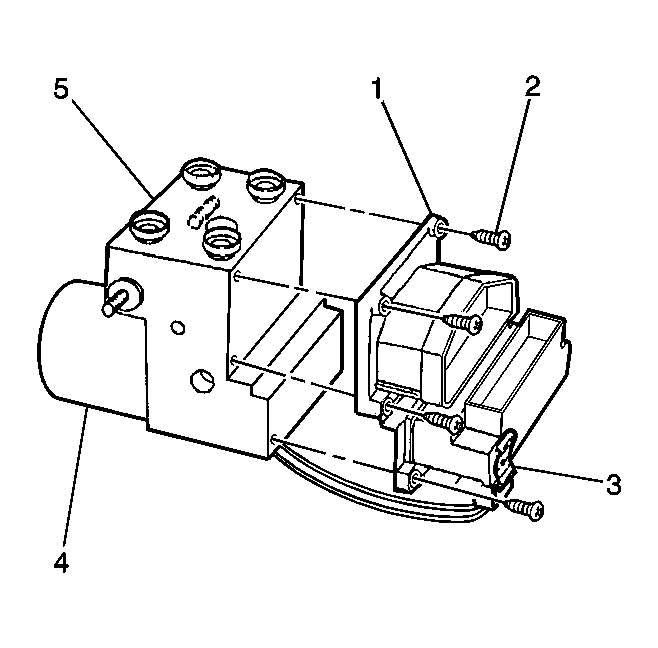

    Fig 1: EBCM & BPMV
    GM213438Courtesy of GENERAL MOTORS CORP.
  1. Connect the pump motor connector (3) to the bottom of the EBCM.
  2. Install the EBCM (1) to the BPMV (4).
    3. NOTE: Refer to Fastener Notice .
  3. Install the 6 retainers (2) which connect the EBCM to the BPMV.

    Tighten:  Tighten the retainers to 2.9 N.m (26 lb in).

  4. Connect the EBCM harness connector.
  5. Lower the vehicle.
  6. Turn the ignition switch to the RUN position. Do NOT start the engine.
  7. Perform the diagnostic system check. Refer to Diagnostic System Check - ABS .
