HVAC Control Module
HVAC Control Module
Download the full database via torrent (~1.1 TB)

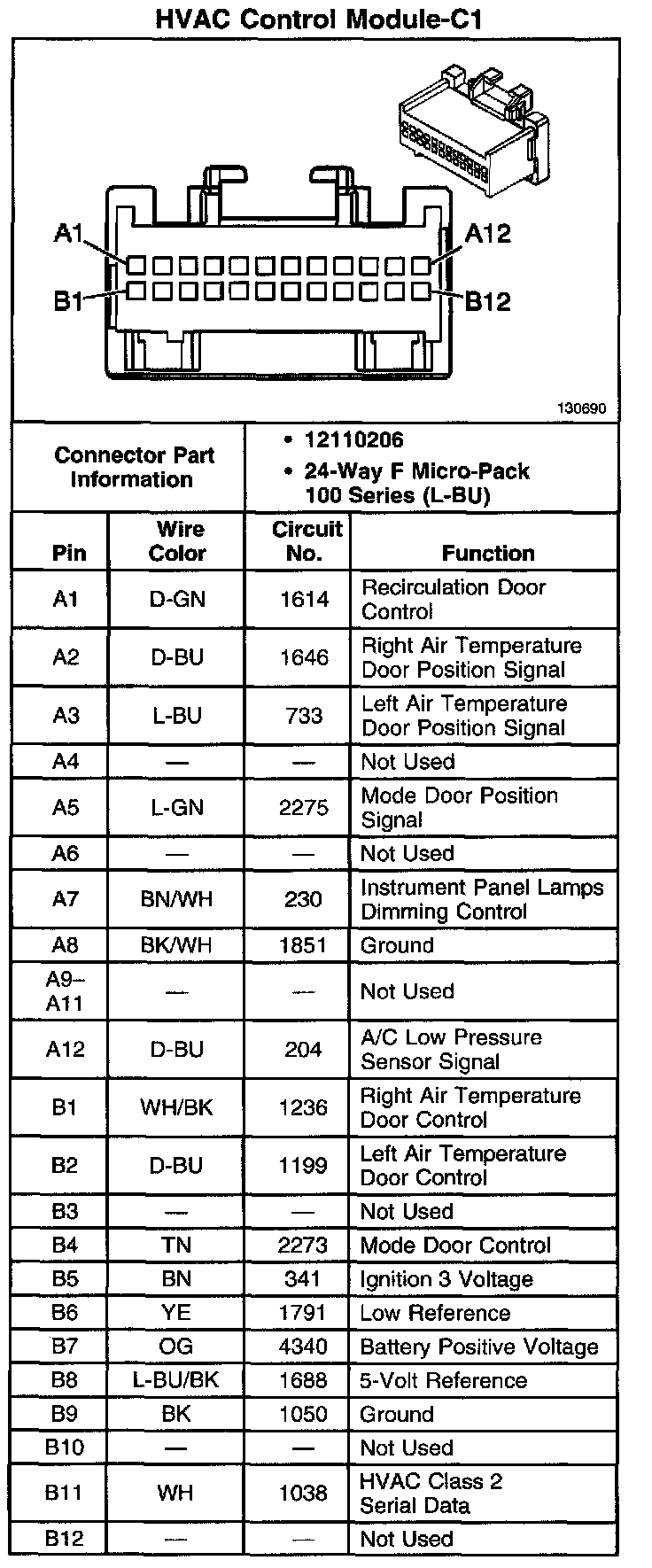

HVAC Control Module-C1:

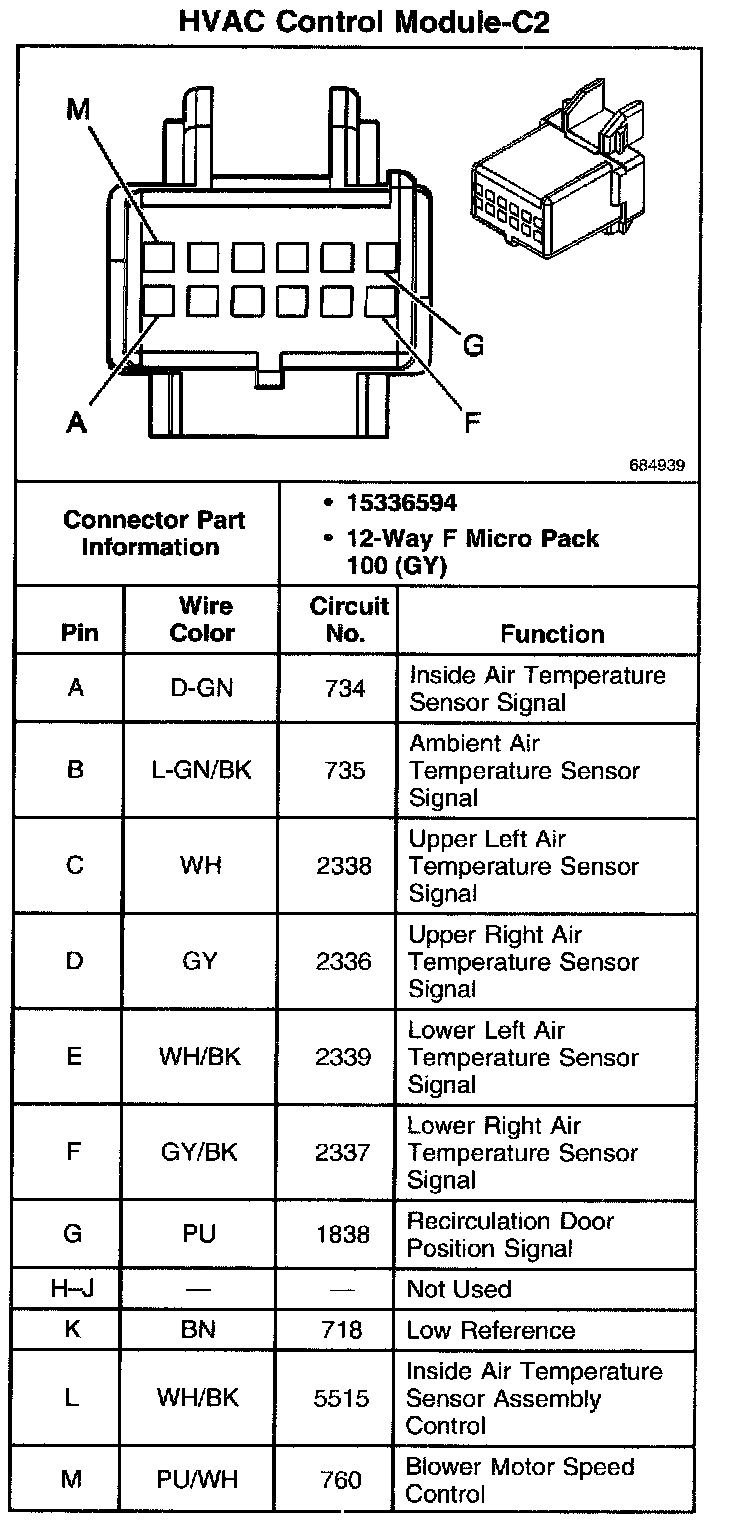

HVAC Control Module-C2:
