Electronic Throttle Control Module
Download the full database via torrent (~1.1 TB)

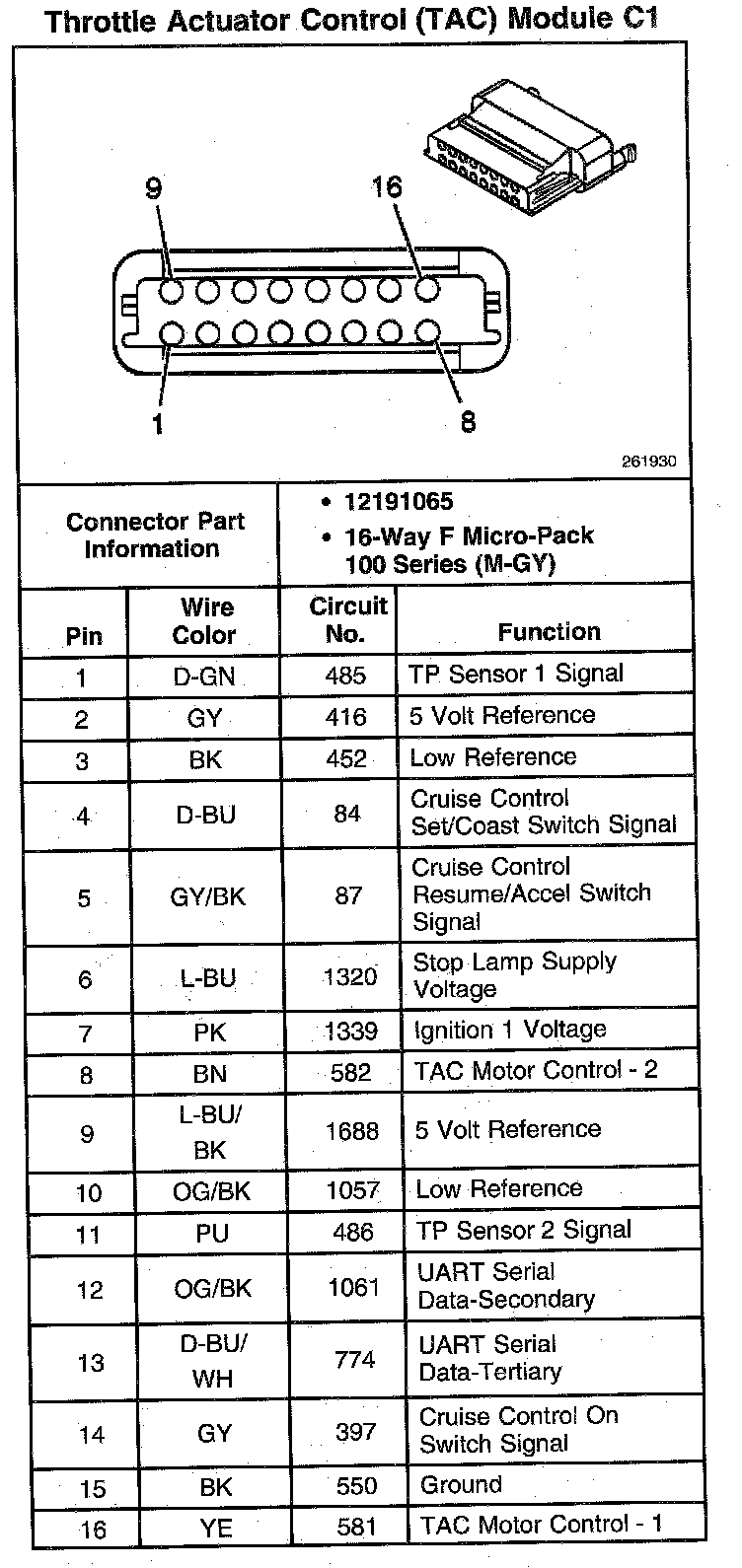

Throttle Actuator Control (TAC) Module C1:

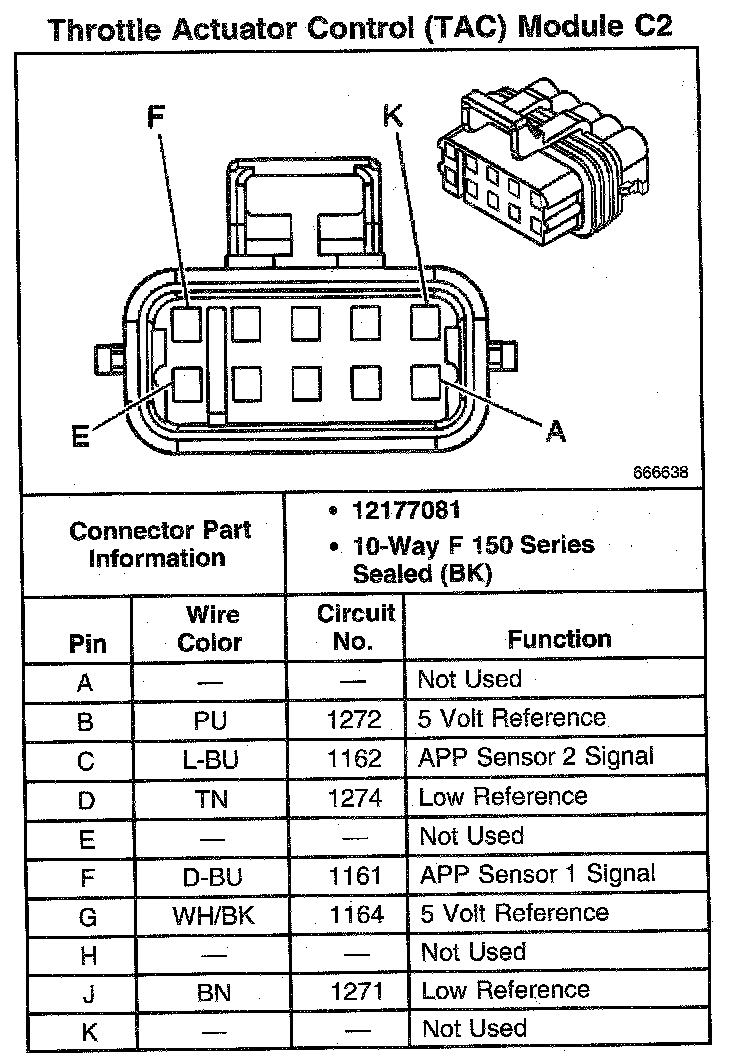

Throttle Actuator Control (TAC) Module C2:
