Oil Pump Assembly

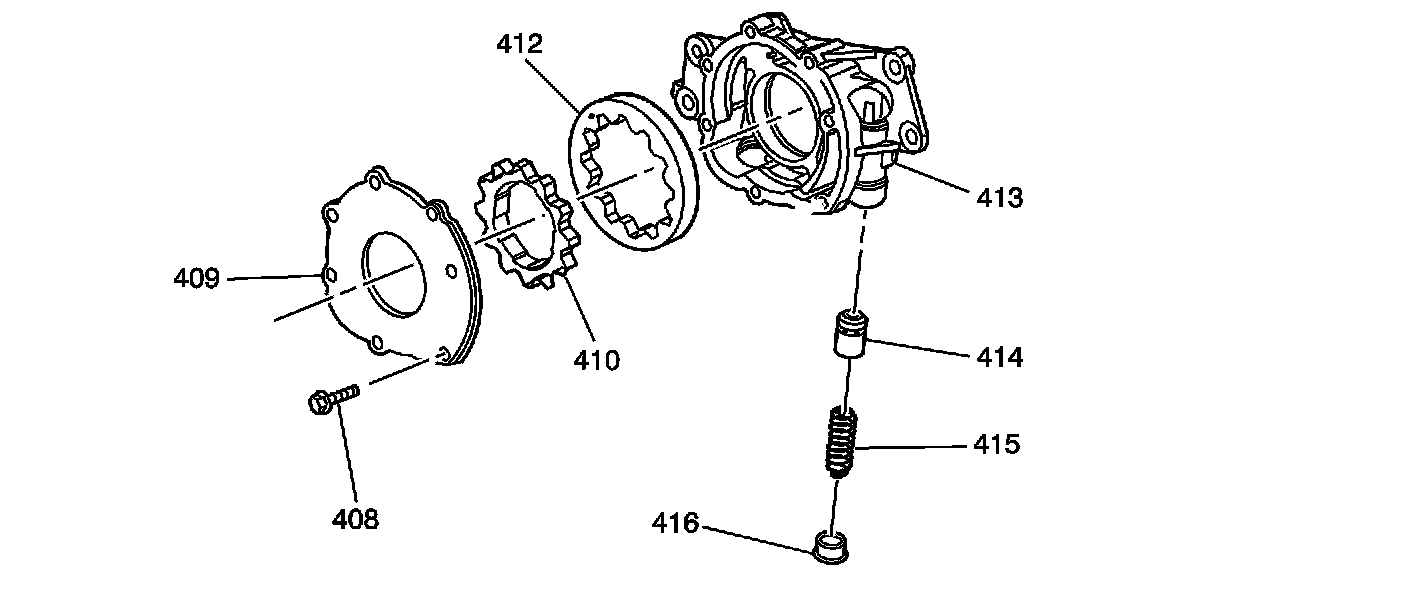

Oil Pump Assembly:





408 - Cover Bolt
409 - Cover
410 - Drive Gear
412 - Driven Gear
413 - Oil Pump
414 - Pressure Relief Valve
415 - Pressure Relief Valve Spring
416 - Plug
