Rear of Engine

Rear of Engine

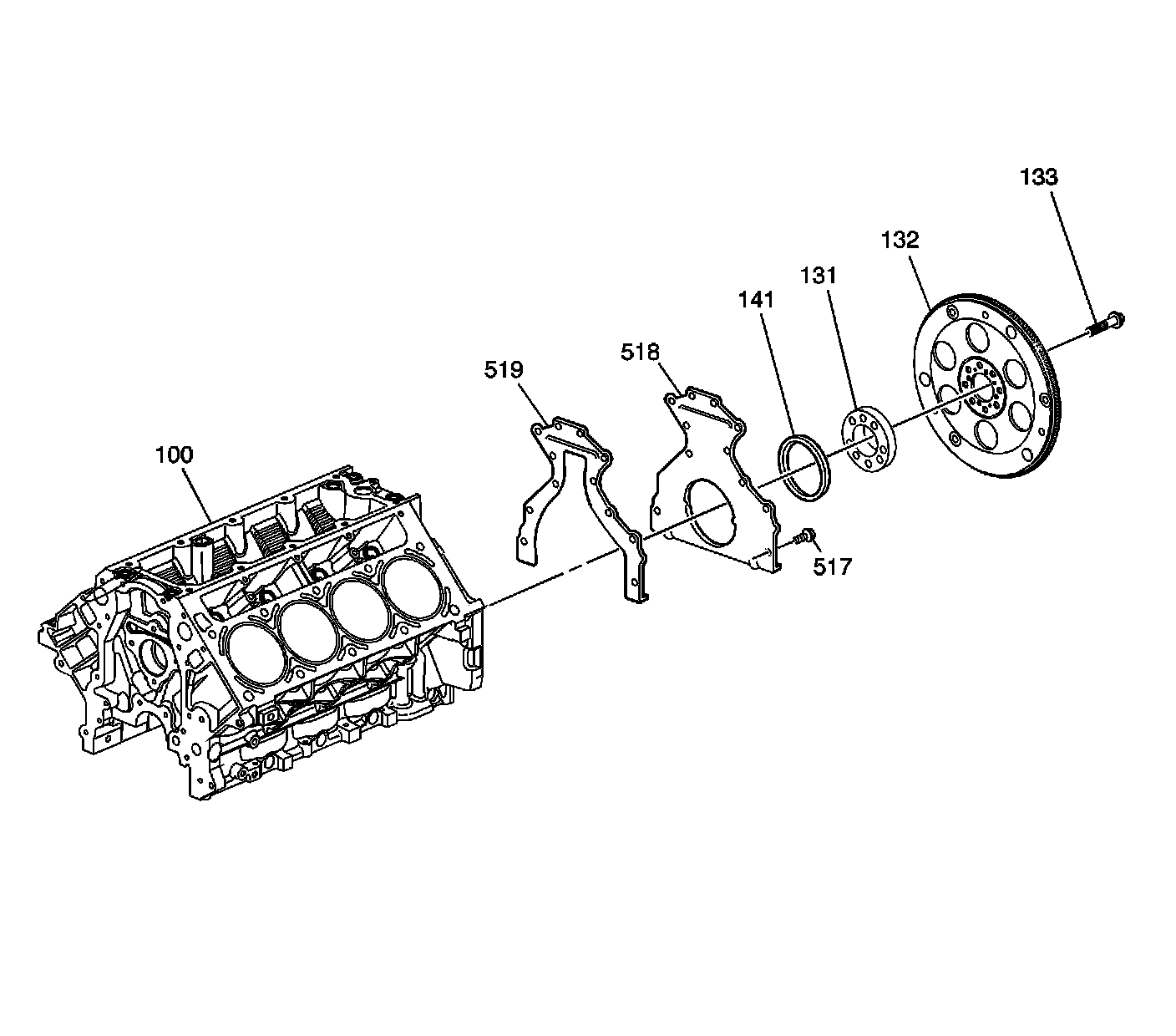

Rear of Engine:

100 - Engine Block
131 - Flywheel Spacer
132 - Flywheel
133 - Flywheel Bolt
141 - Crankshaft Rear Oil Seal
517 - Rear Cover Bolt
518 - Rear Cover
519 - Rear Cover Gasket
