Powertrain Control Module (PCM) C1

Download the full database via torrent (~1.1 TB)

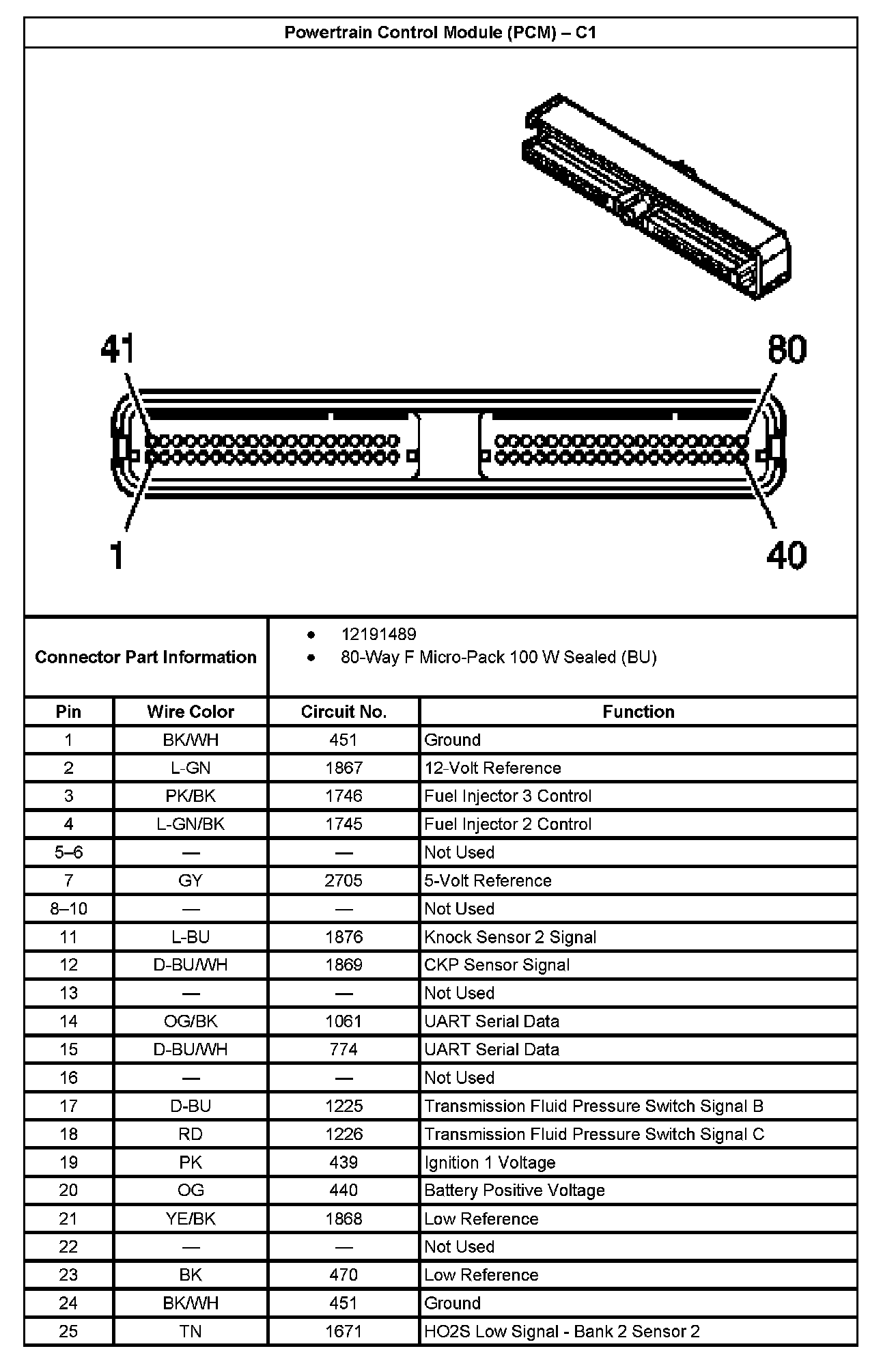

Powertrain Control Module (PCM) - C1 Part 1:

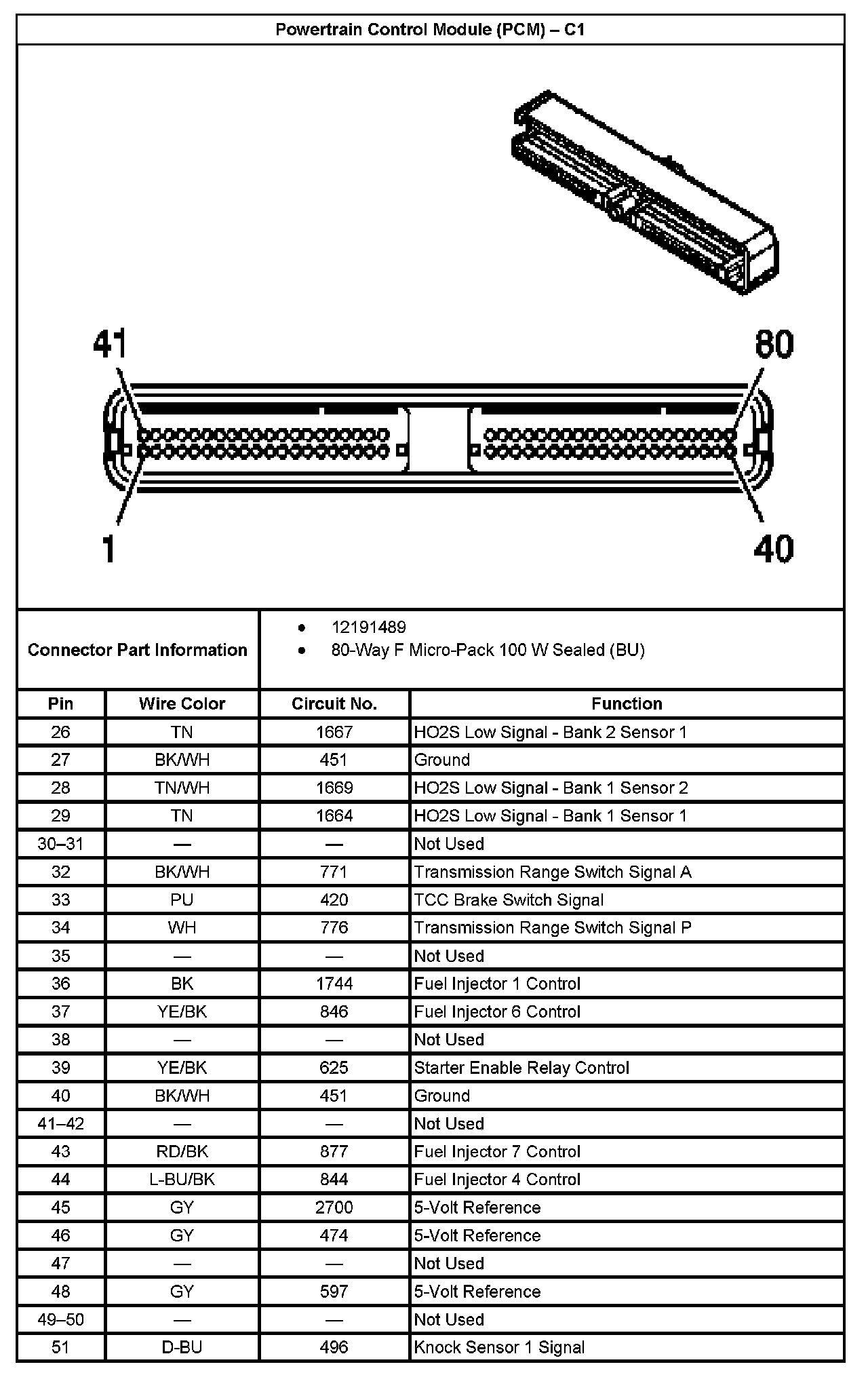

Powertrain Control Module (PCM) - C1 Part 2:

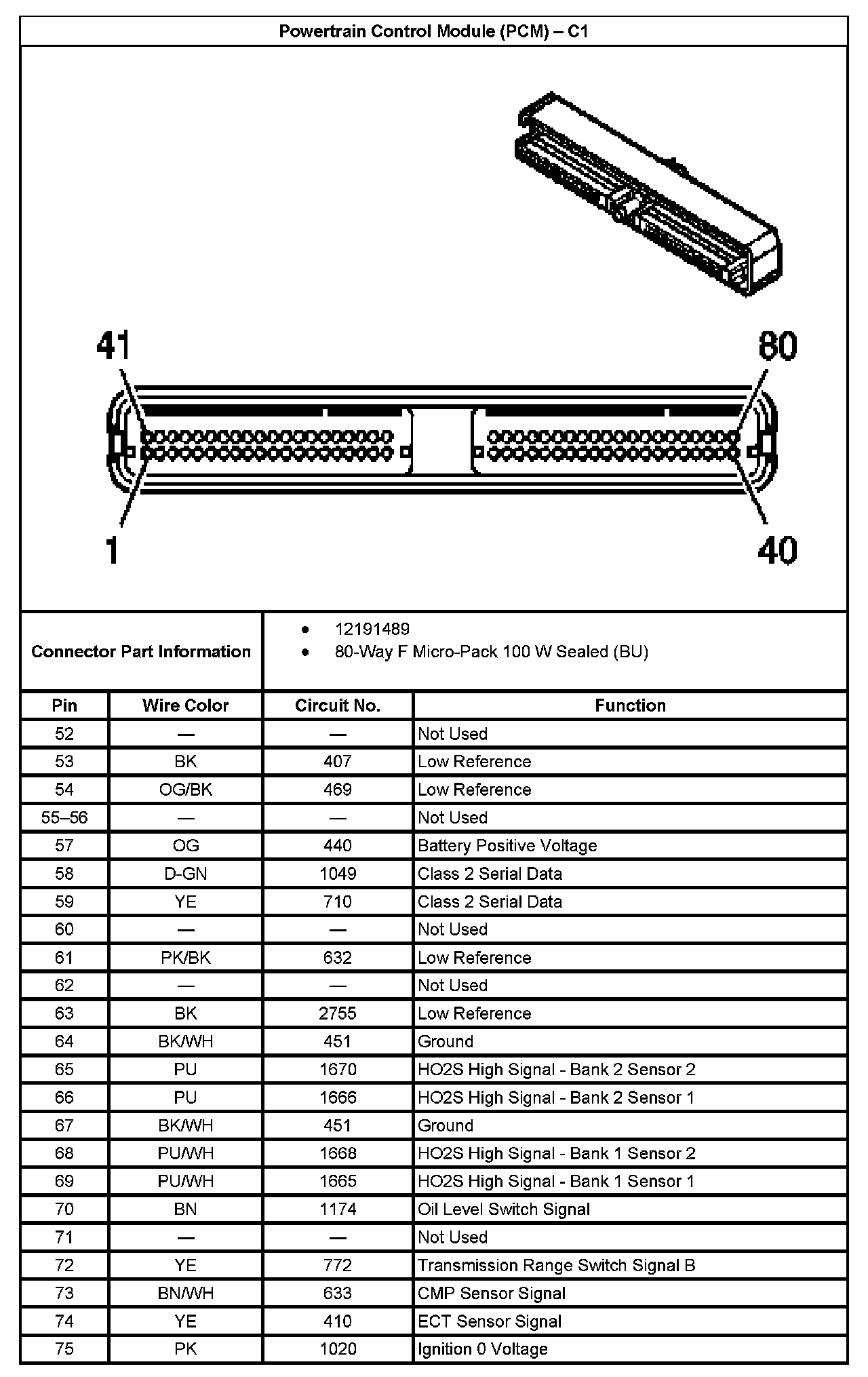

Powertrain Control Module (PCM) - C1 Part 3:

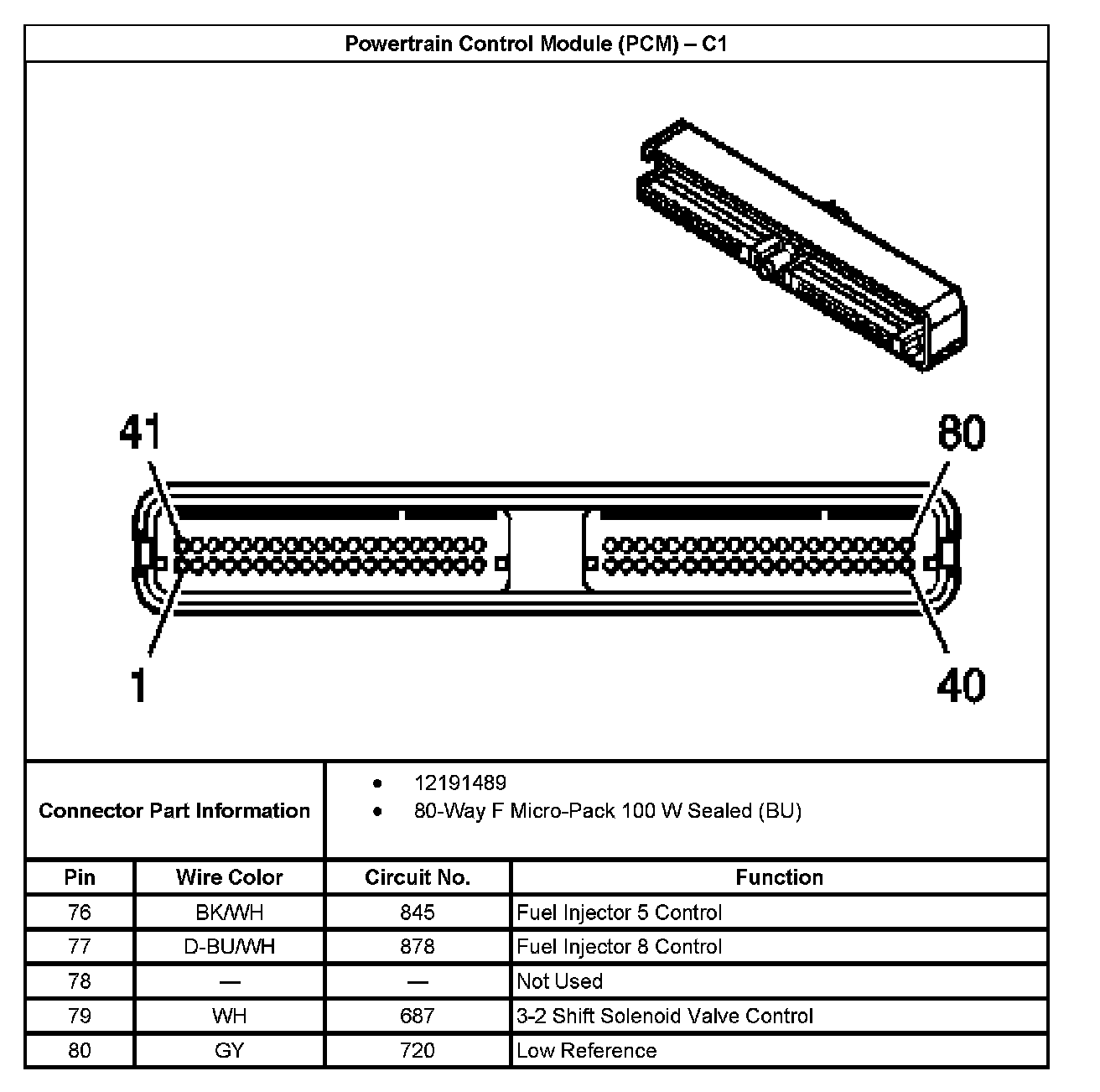

Powertrain Control Module (PCM) - C1 Part 4:
