Body Control Module (BCM)

Download the full database via torrent (~1.1 TB)

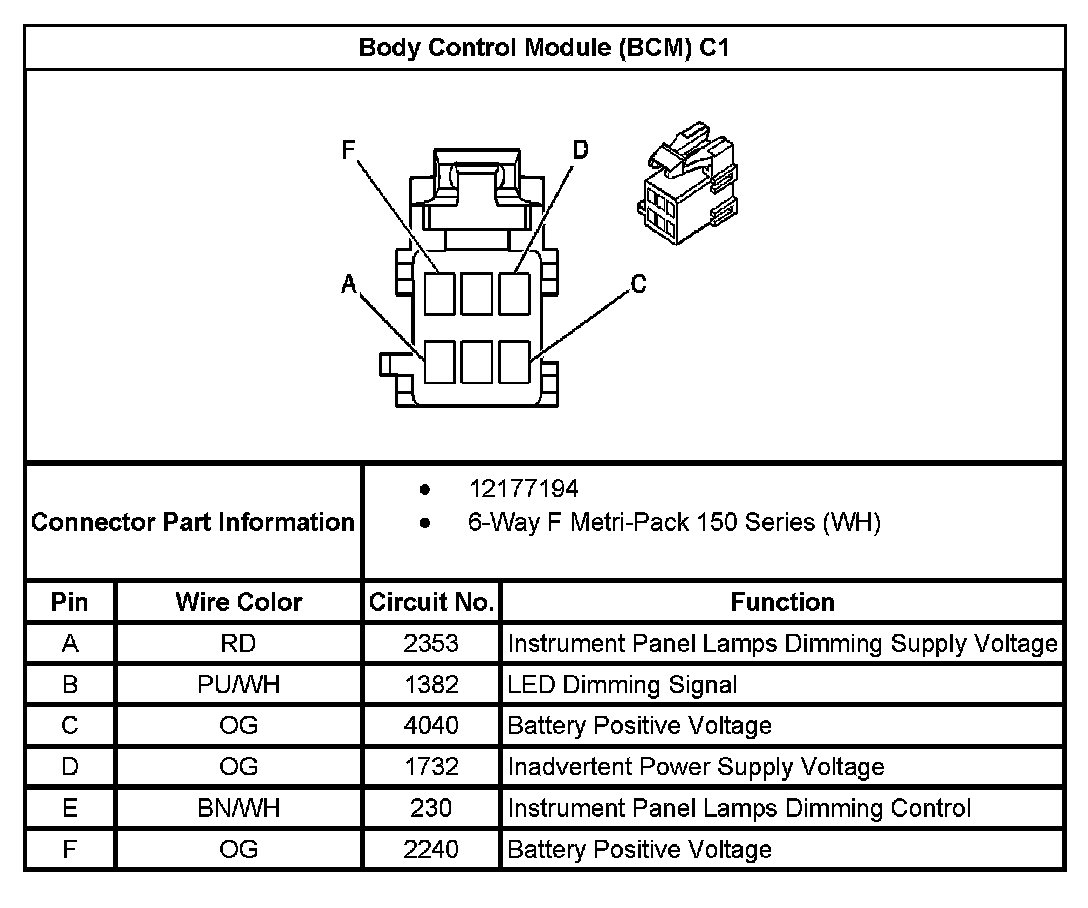

Body Control Module (BCM) C1:

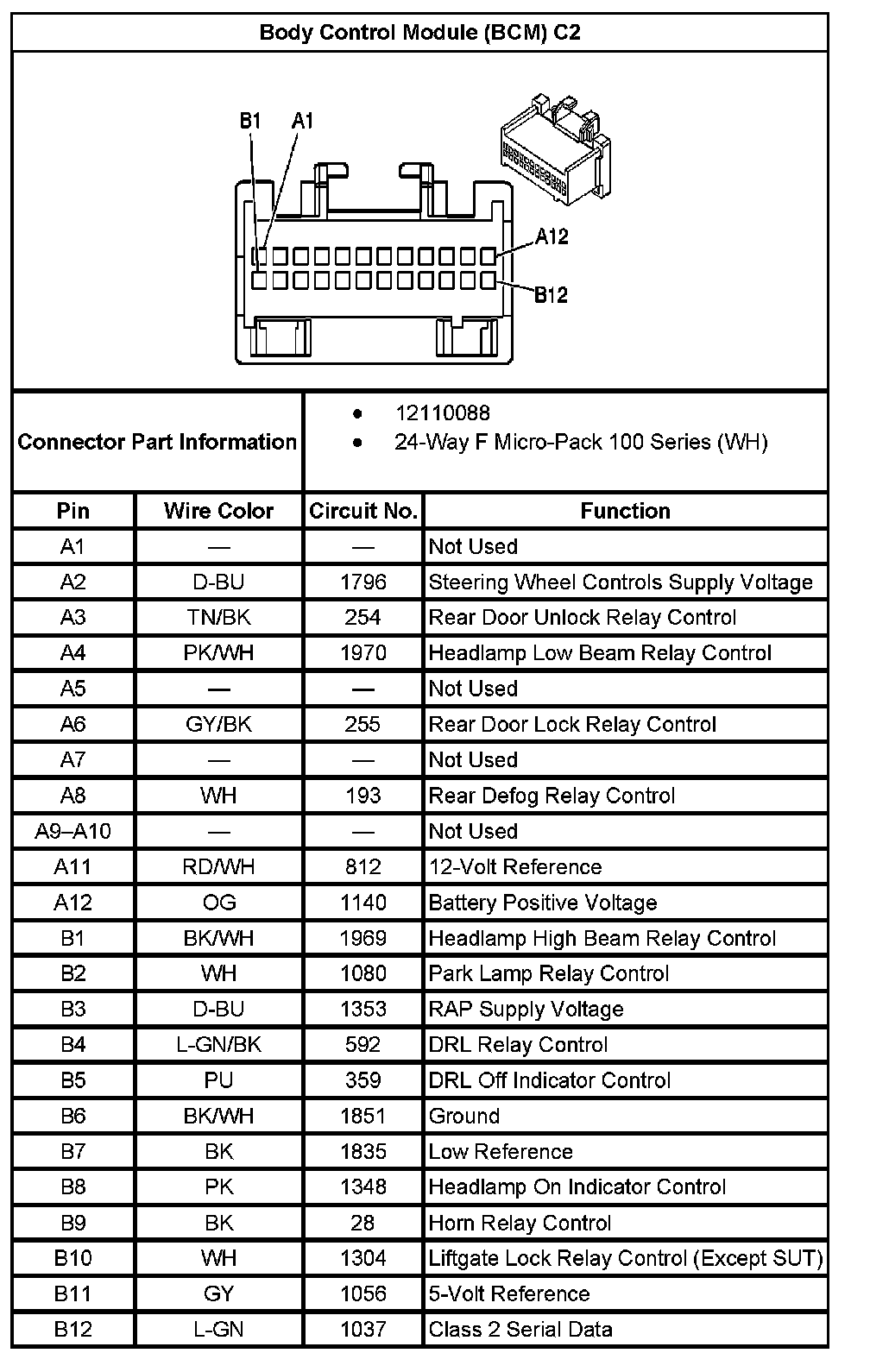

Body Control Module (BCM) C2:




Body Control Module (BCM) C3:




Body Control Module (BCM) C4:




Body Control Module (BCM) C5:

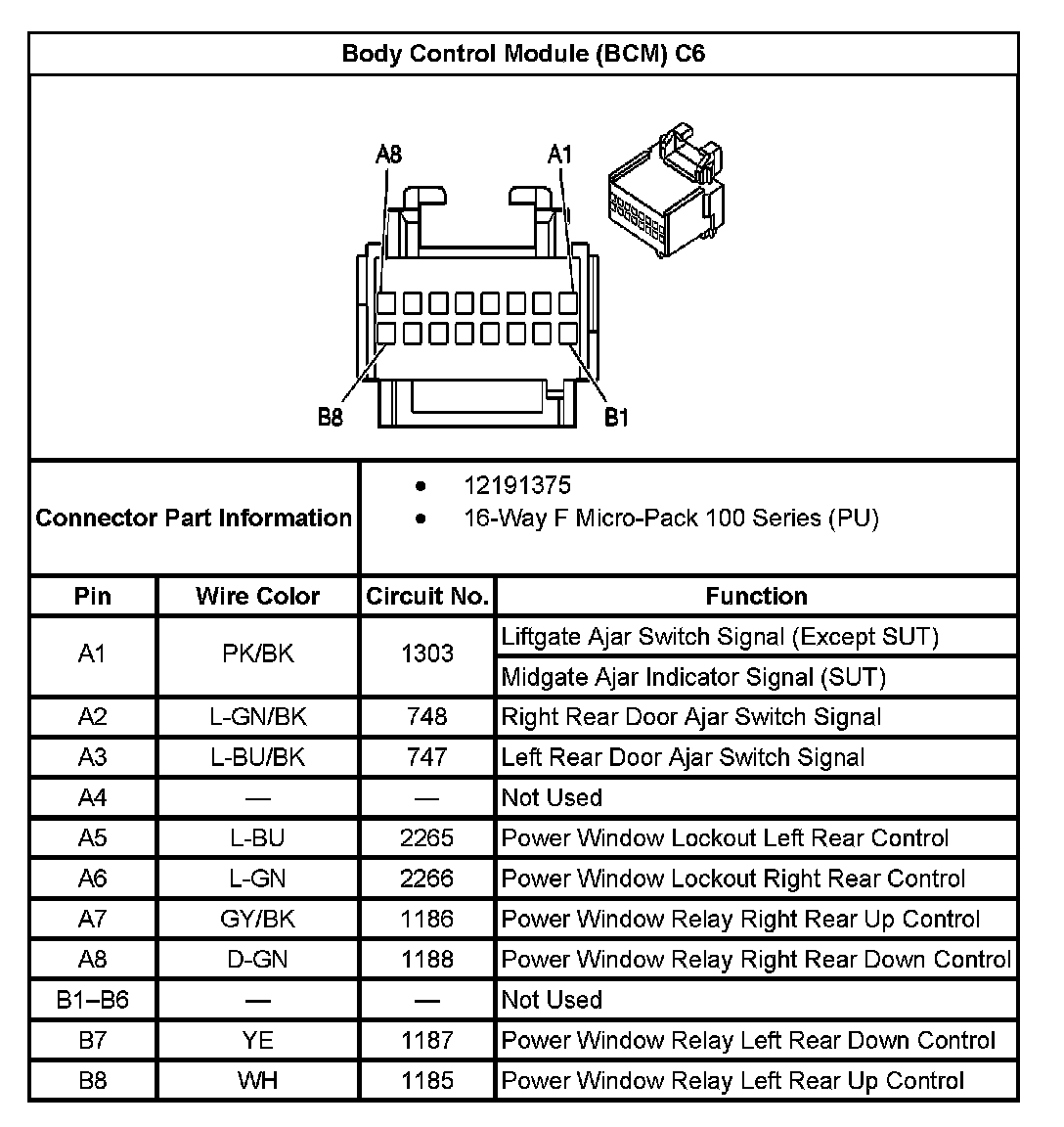

Body Control Module (BCM) C6:
