Powertrain Control Module (PCM) - C1

Download the full database via torrent (~1.1 TB)

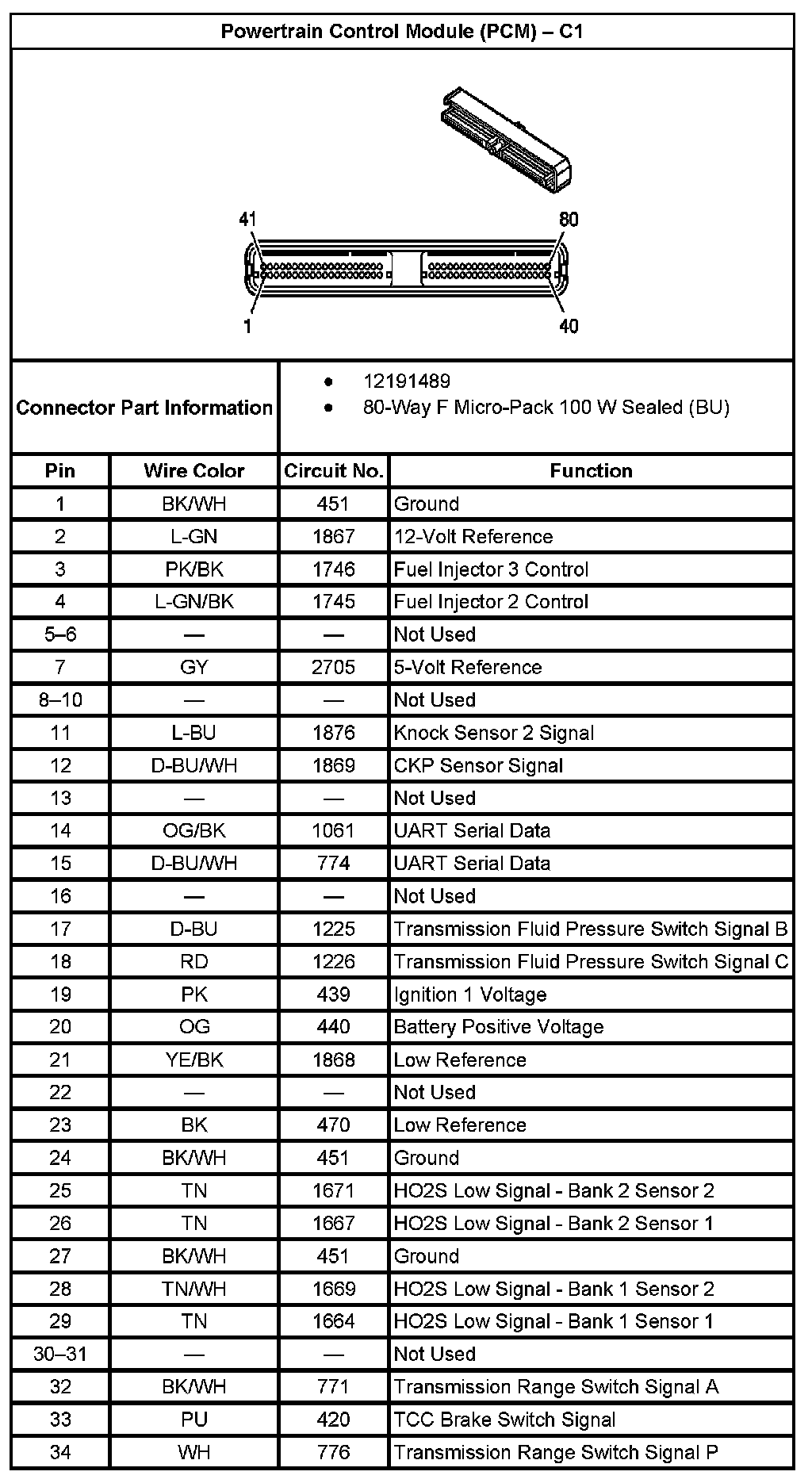

Powertrain Control Module (PCM) - C1 (Part 1):

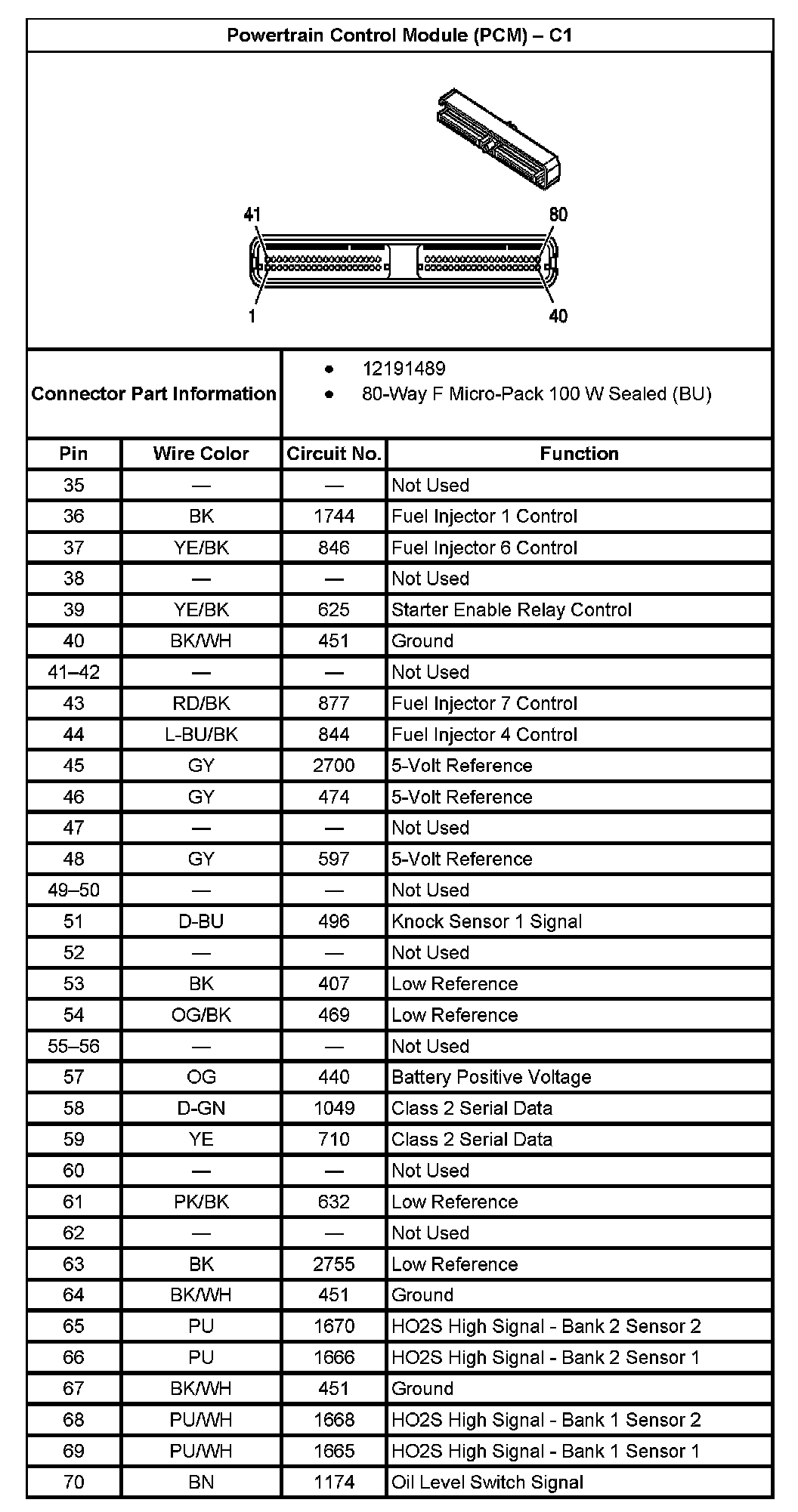

Powertrain Control Module (PCM) - C1 (Part 2):

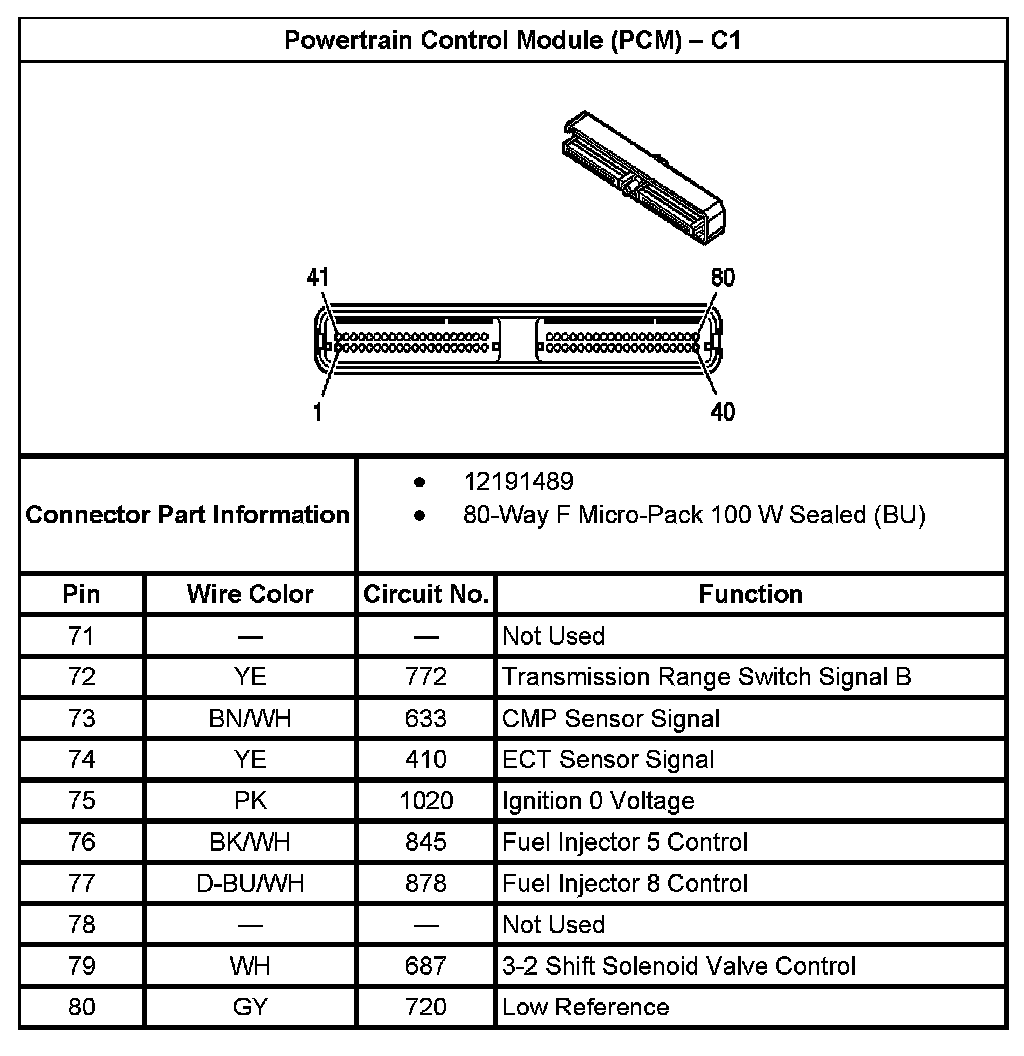

Powertrain Control Module (PCM) - C1 (Part 3):
