Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

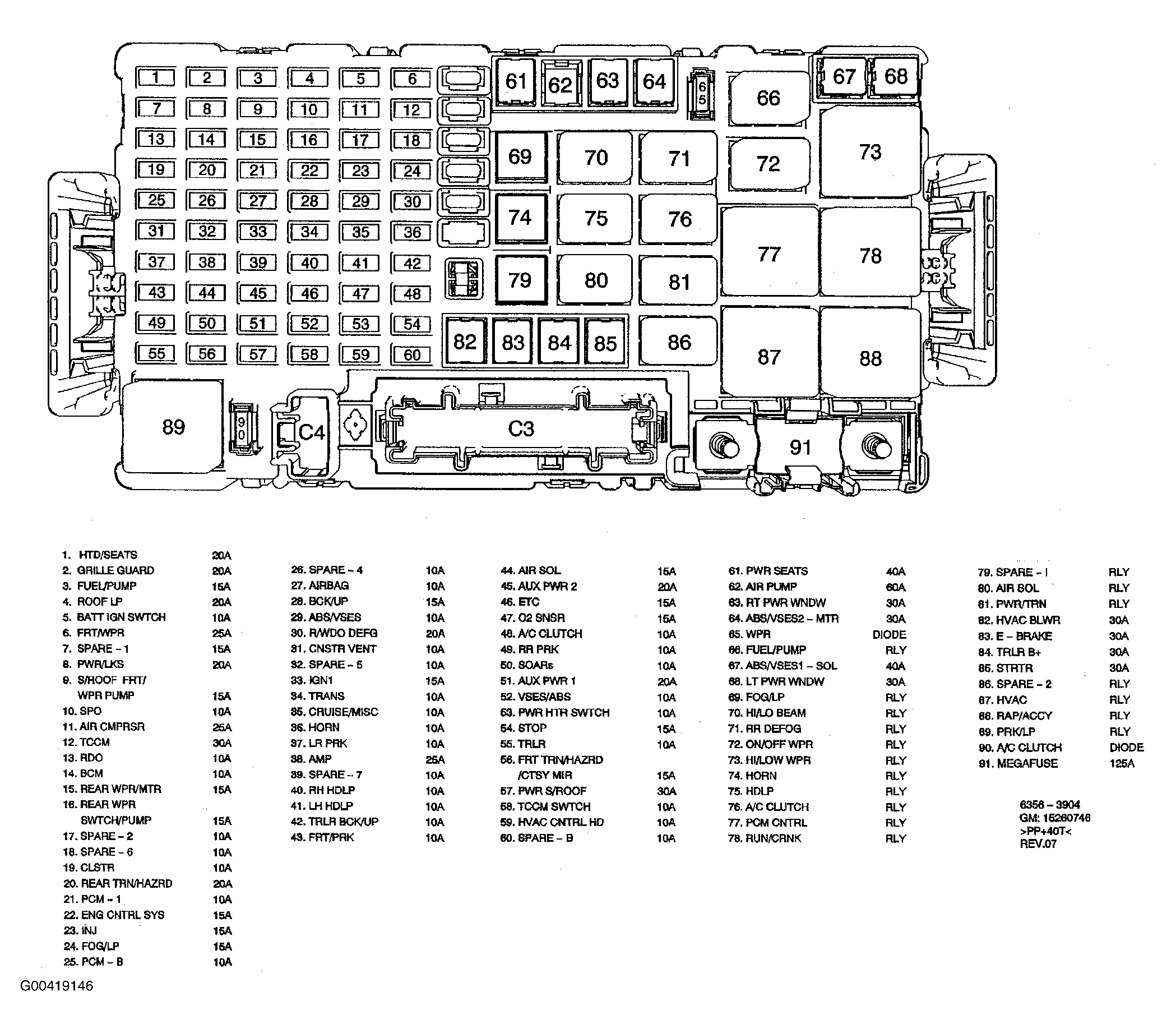

| A/C CLUTCH Relay Diode | In underhood fuse block. See Figure . |
| Blower Motor Resistor Assembly | Bottom of blower motor. See Figure . |
| Diode (Wiper) | In underhood fuse block. See Figure . |
| Seat Circuit Breaker | Under driver seat near C307. |
| Underhood Fuse Block | Above left front wheel well. See Figure . |
