Engine Controls Component Views

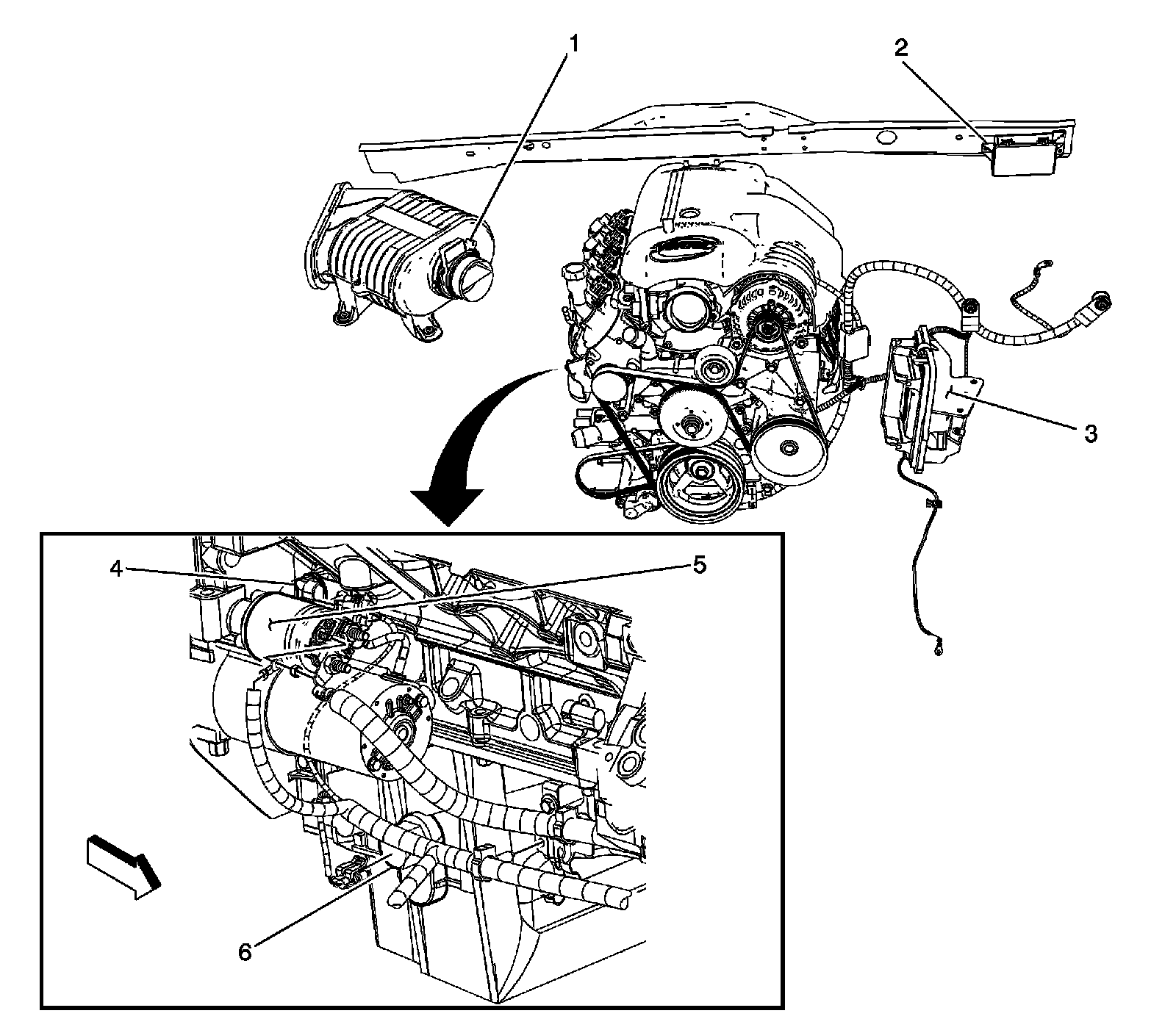

Engine Compartment Mounted Components

1 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
2 - Throttle Actuator Control (TAC) Module
3 - Powertrain Control Module (PCM)
4 - Crankshaft Position (CKP) Sensor
5 - Starter Solenoid
6 - Engine Oil Level Switch
