Transfer Case Shift Control Module C3

Download the full database via torrent (~1.1 TB)


Transfer Case Shift Control Module C3

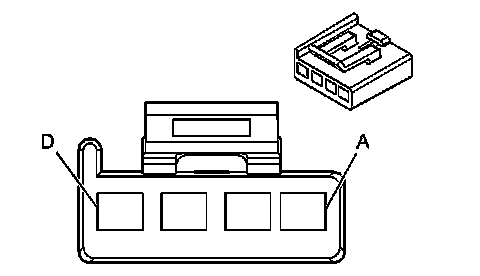

Transfer Case Shift Control Module - C3:

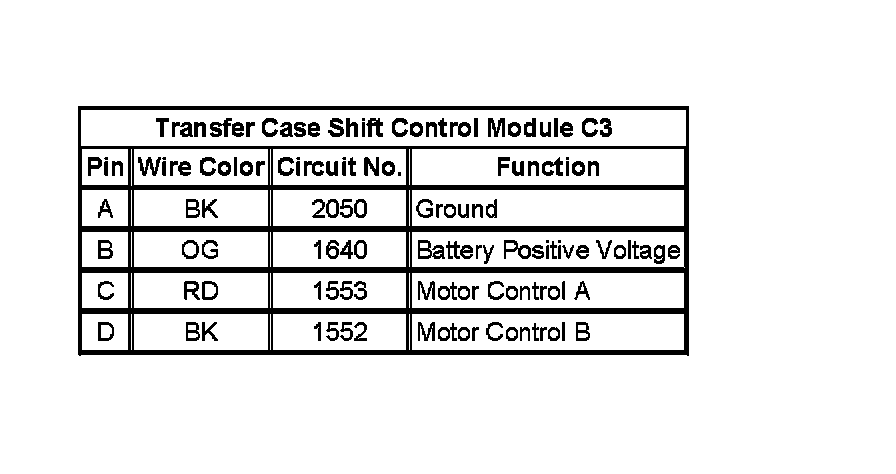

Transfer Case Shift Control Module C3:
