Keyless Entry Module: Diagrams
Download the full database via torrent (~1.1 TB)

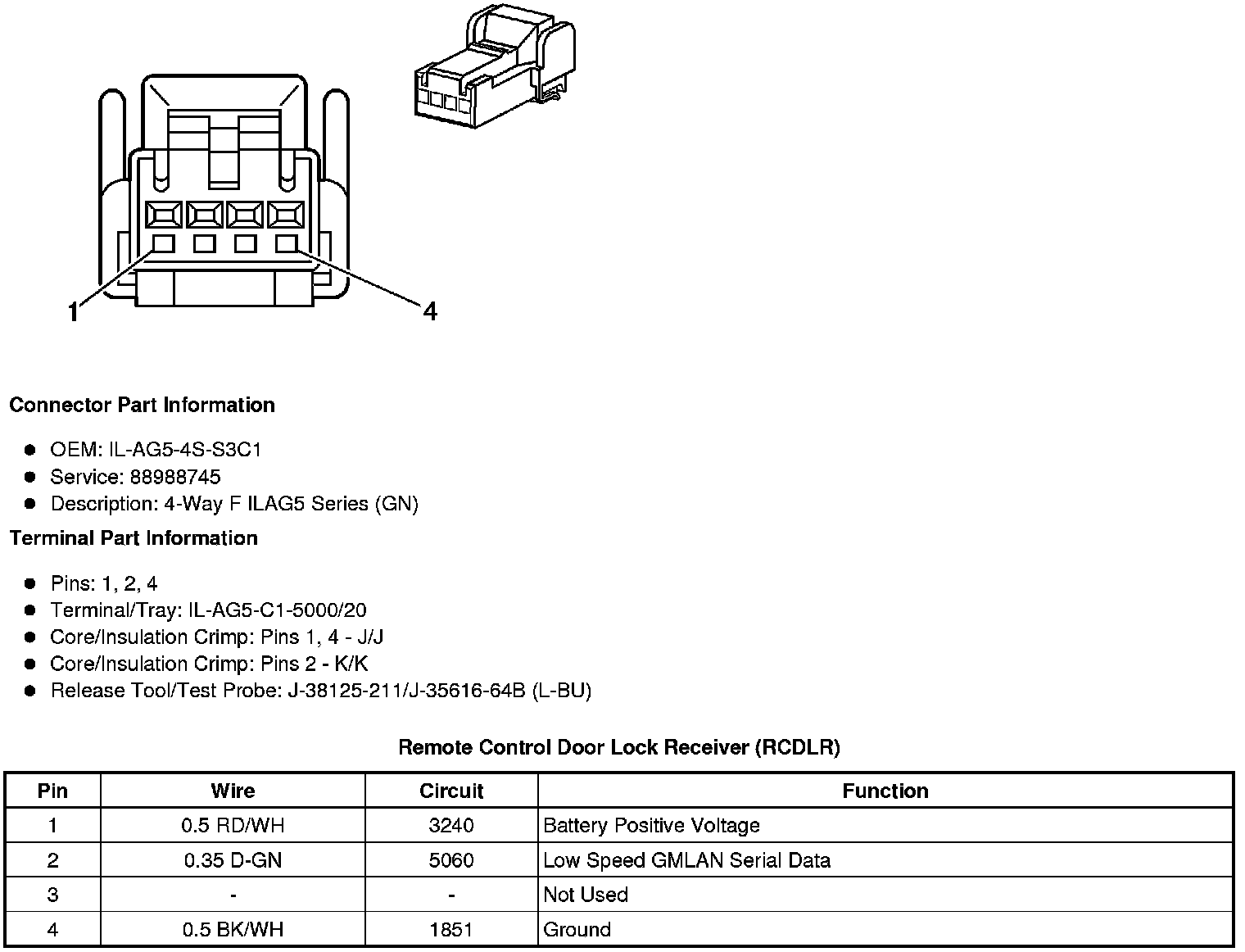

Component Connector End Views
Remote Control Door Lock Receiver (RCDLR)
