HVAC Control Module X3
HVAC Control Module X3
Download the full database via torrent (~1.1 TB)

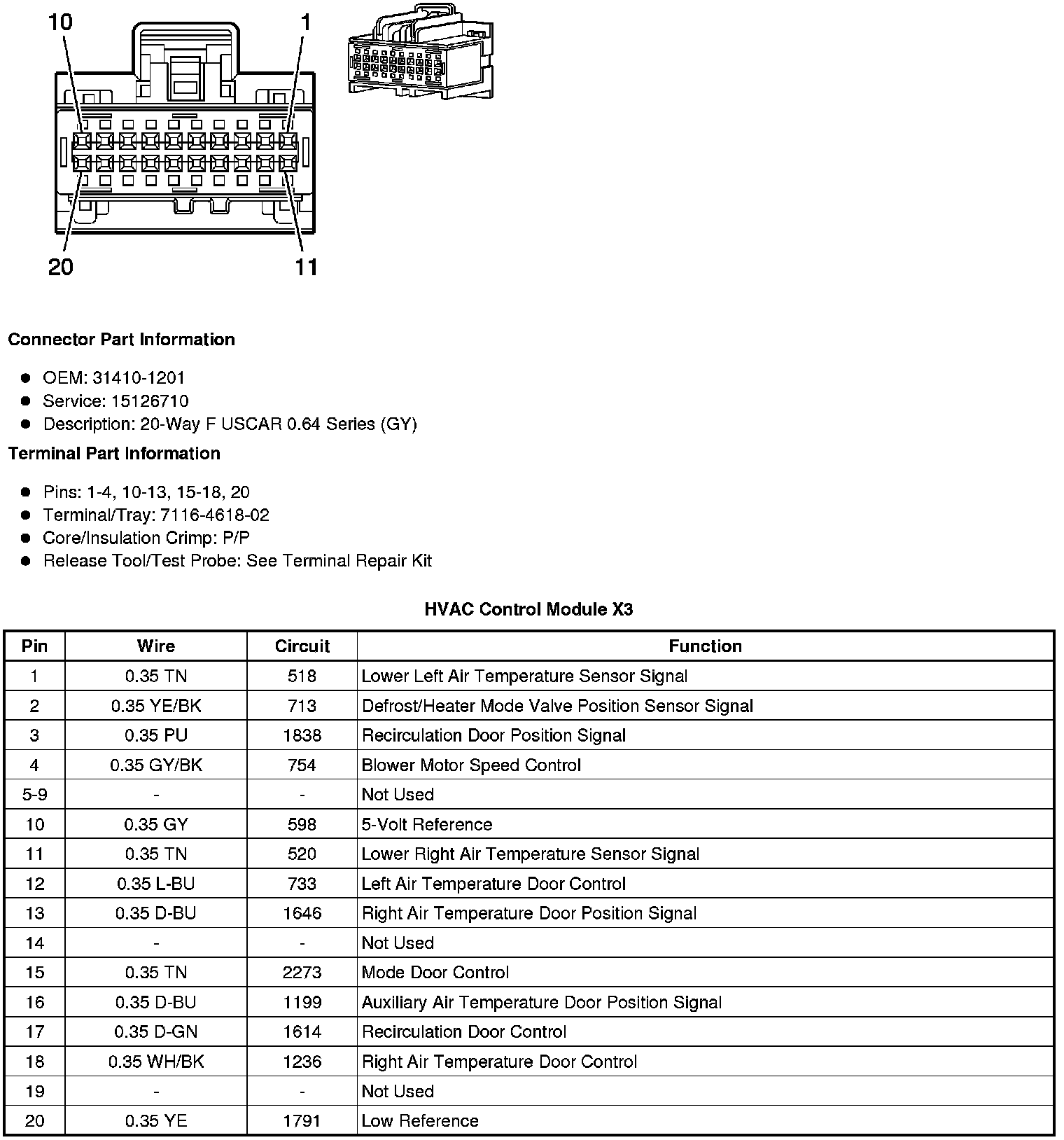

Component Connector End Views
HVAC Control Module X3
