Fuel Level Sensor: Locations

Download the full database via torrent (~1.1 TB)

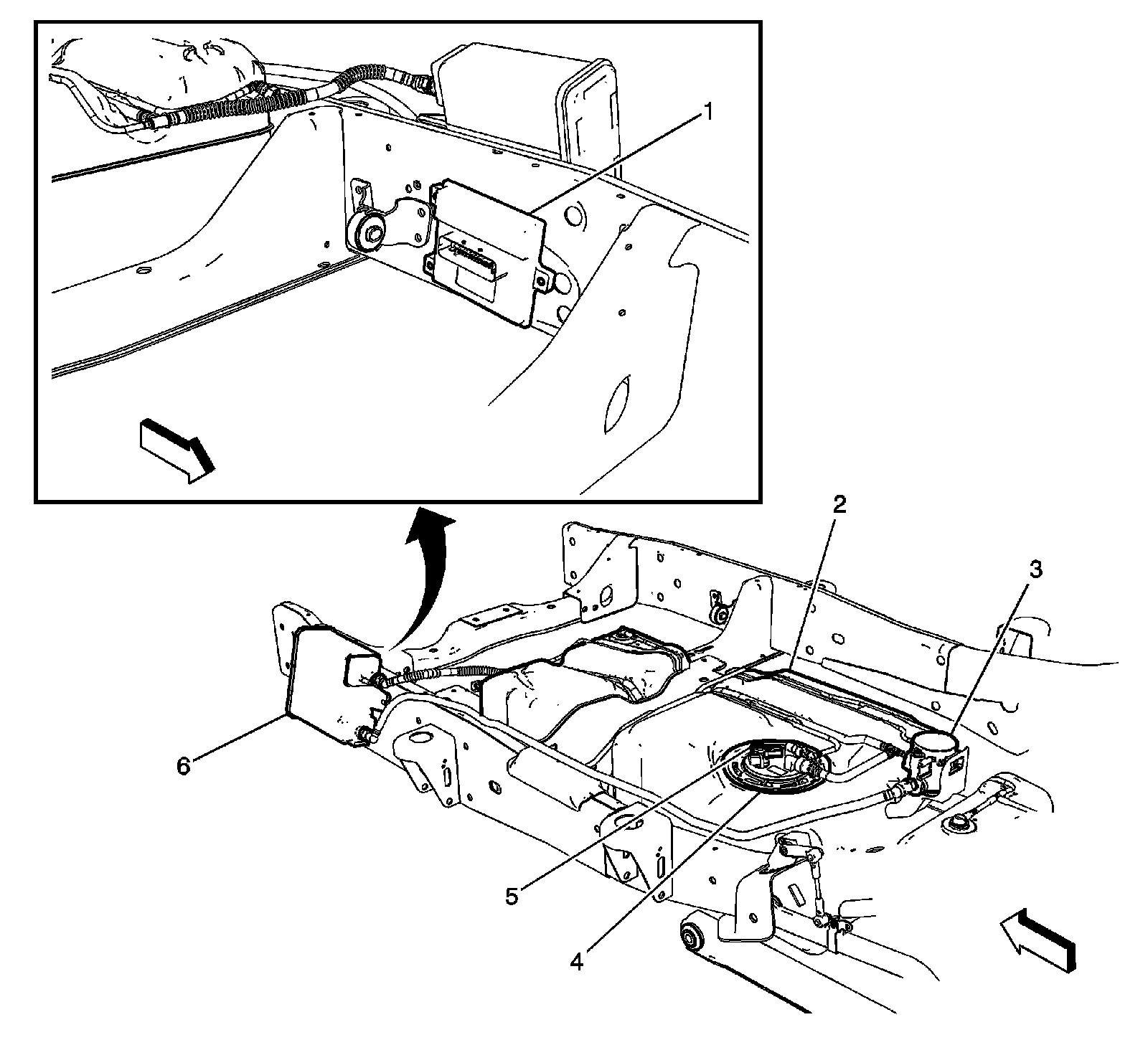

Wheels/Vehicle Underbody Component Views

Fuel System Components

1 - Fuel Pump Control Module
2 - Fuel Tank
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
6 - Evaporative Emission (EVAP) Canister
