Connector Views
Download the full database via torrent (~1.1 TB)

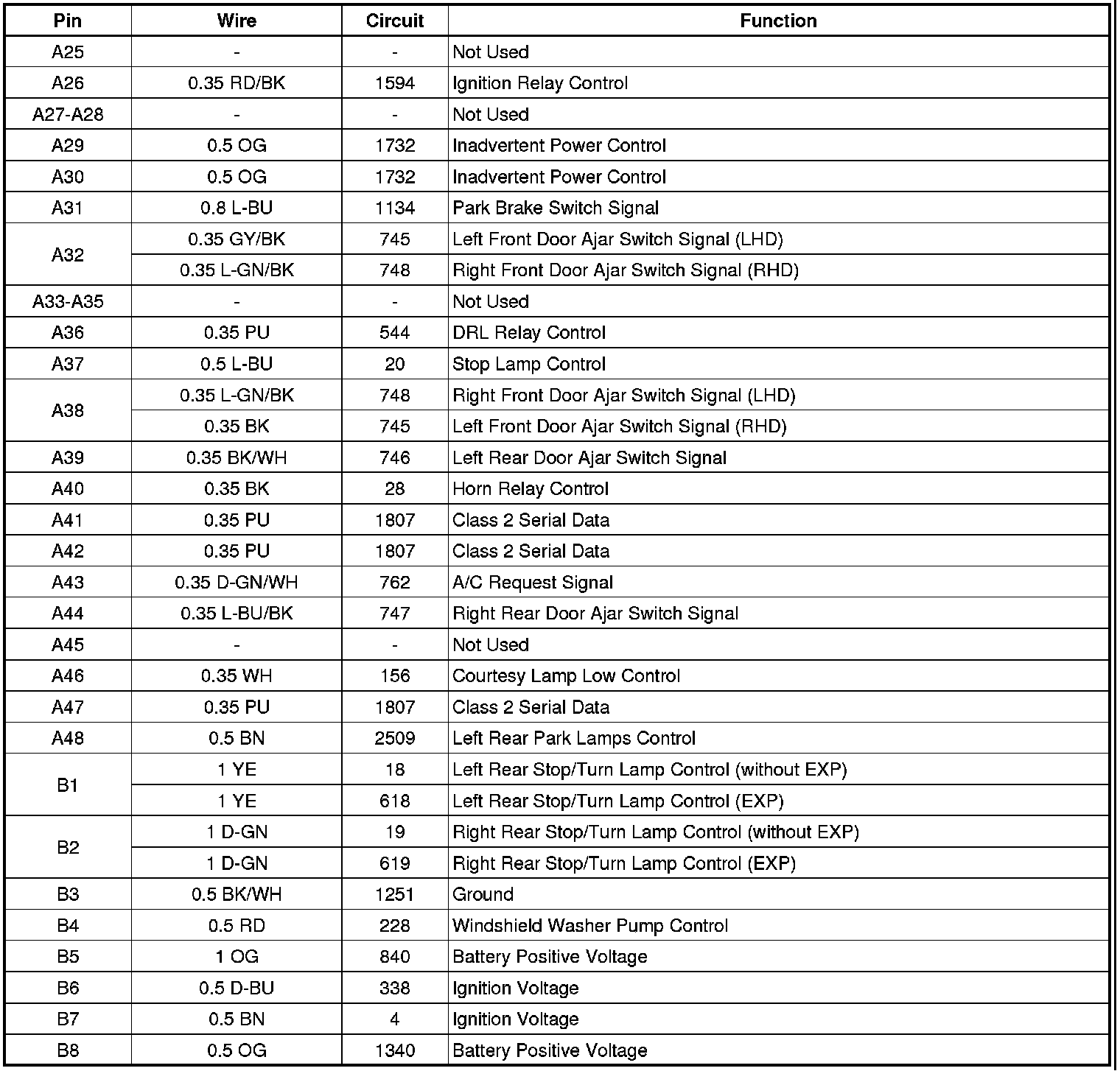

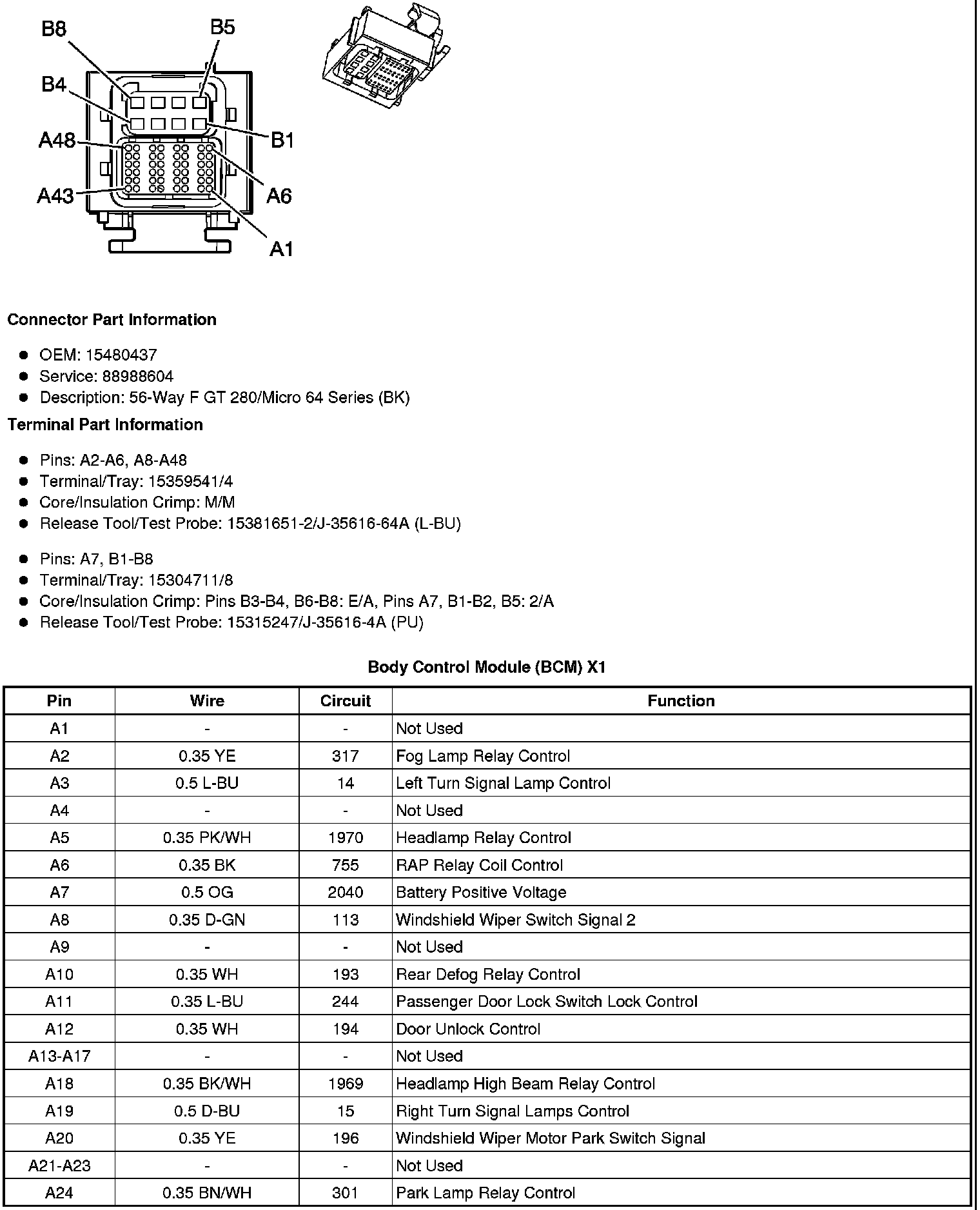

Body Control Module (BCM) X1

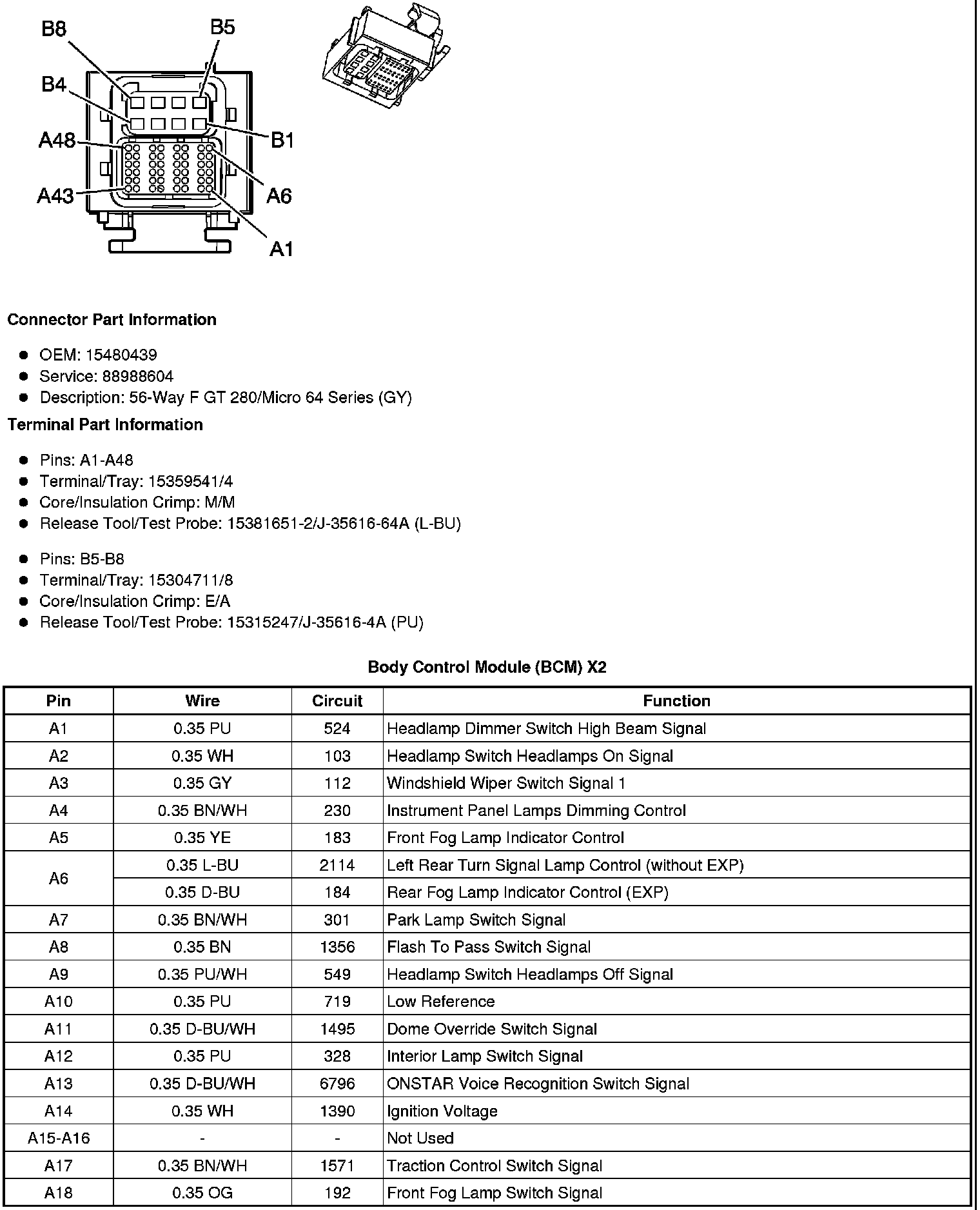

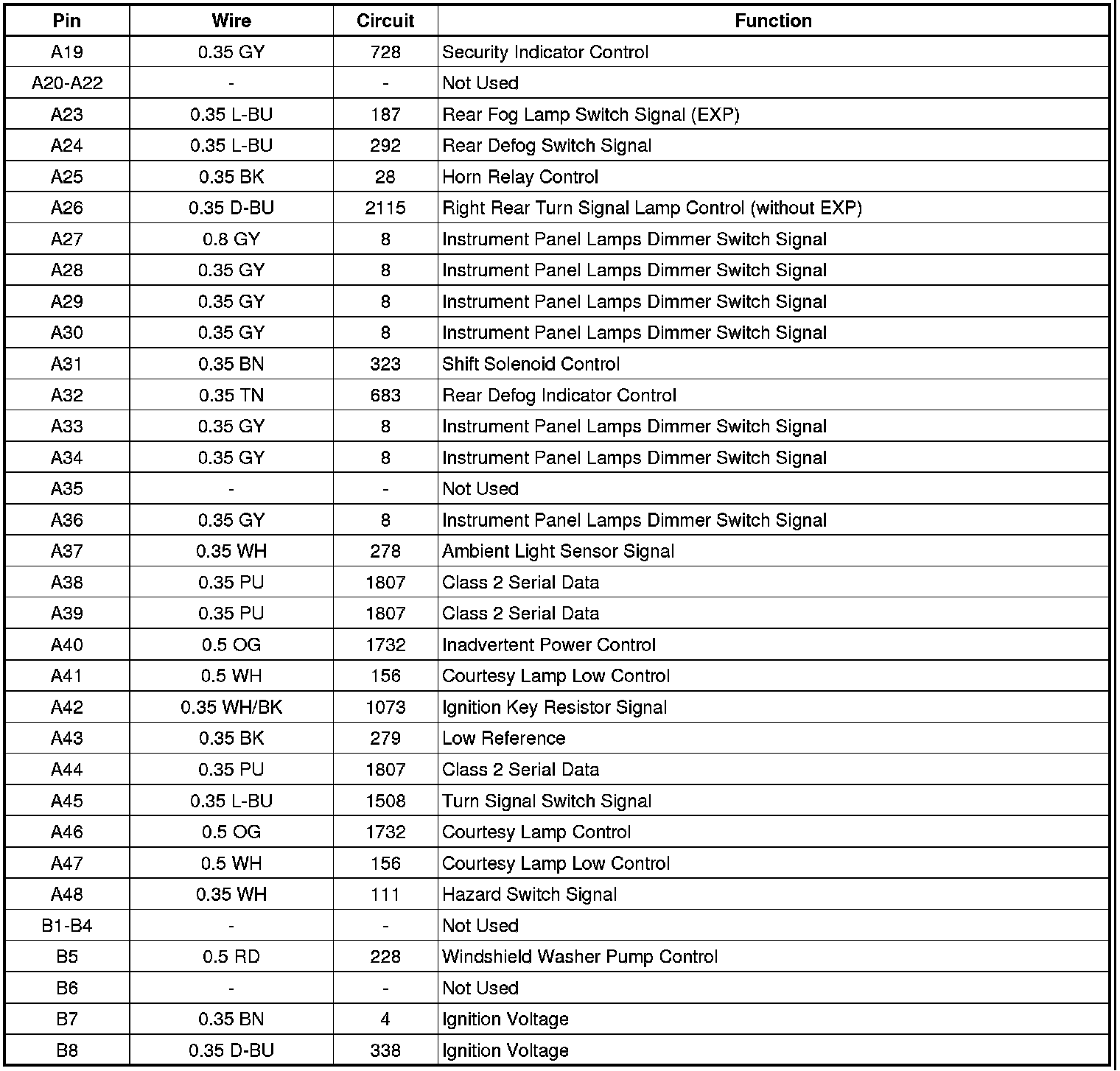

Body Control Module (BCM) X2
