Battery Control Module: Diagrams

Download the full database via torrent (~1.1 TB)

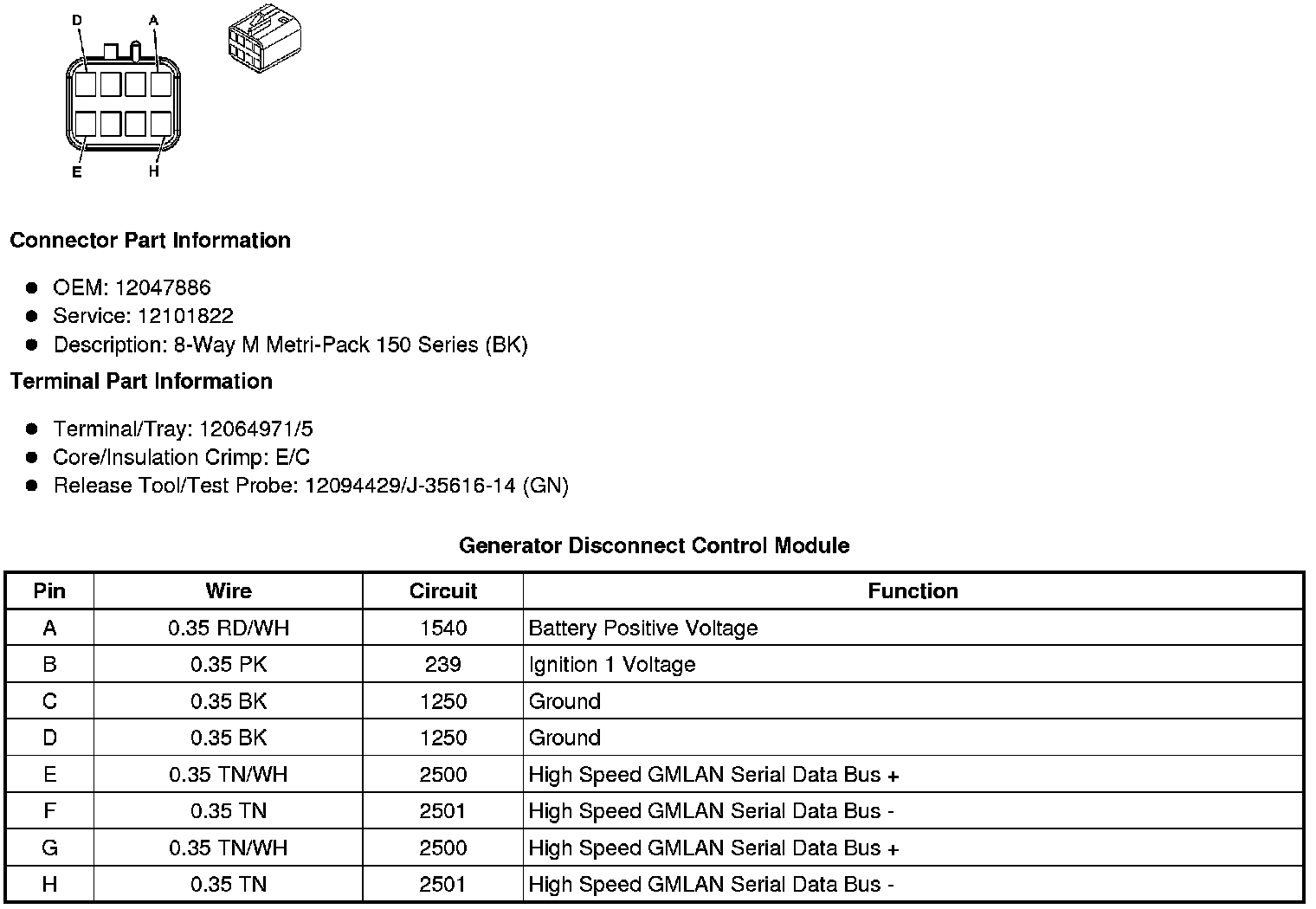

Component Connector End Views

Generator Disconnect Control Module
