Body Control Module (BCM) X5
Body Control Module (BCM) X5
Download the full database via torrent (~1.1 TB)

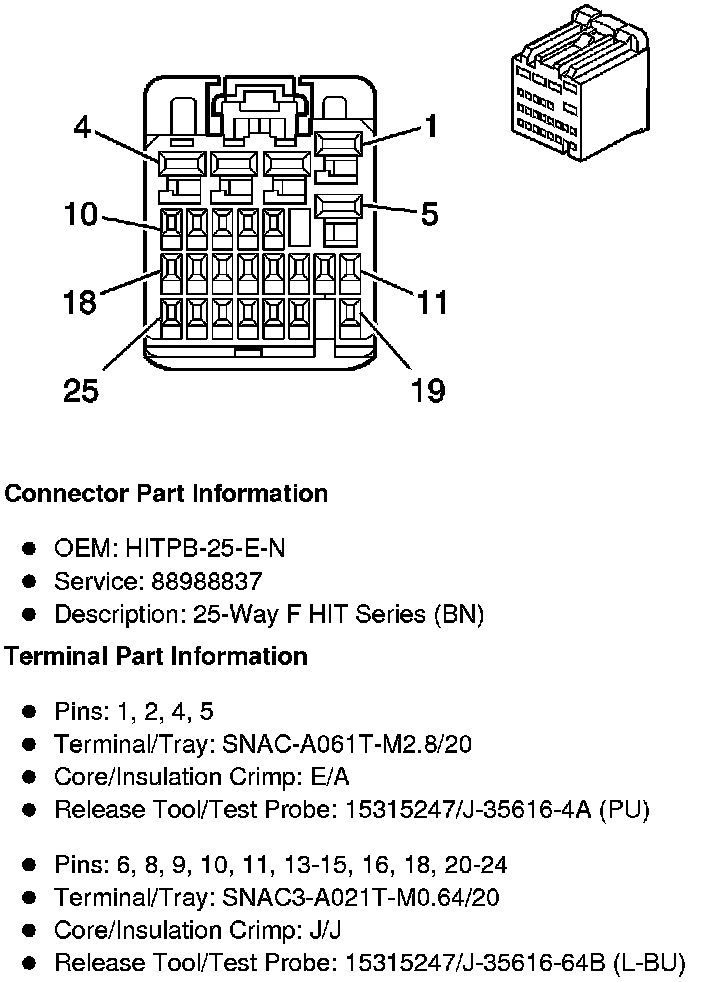

Component Connector End Views

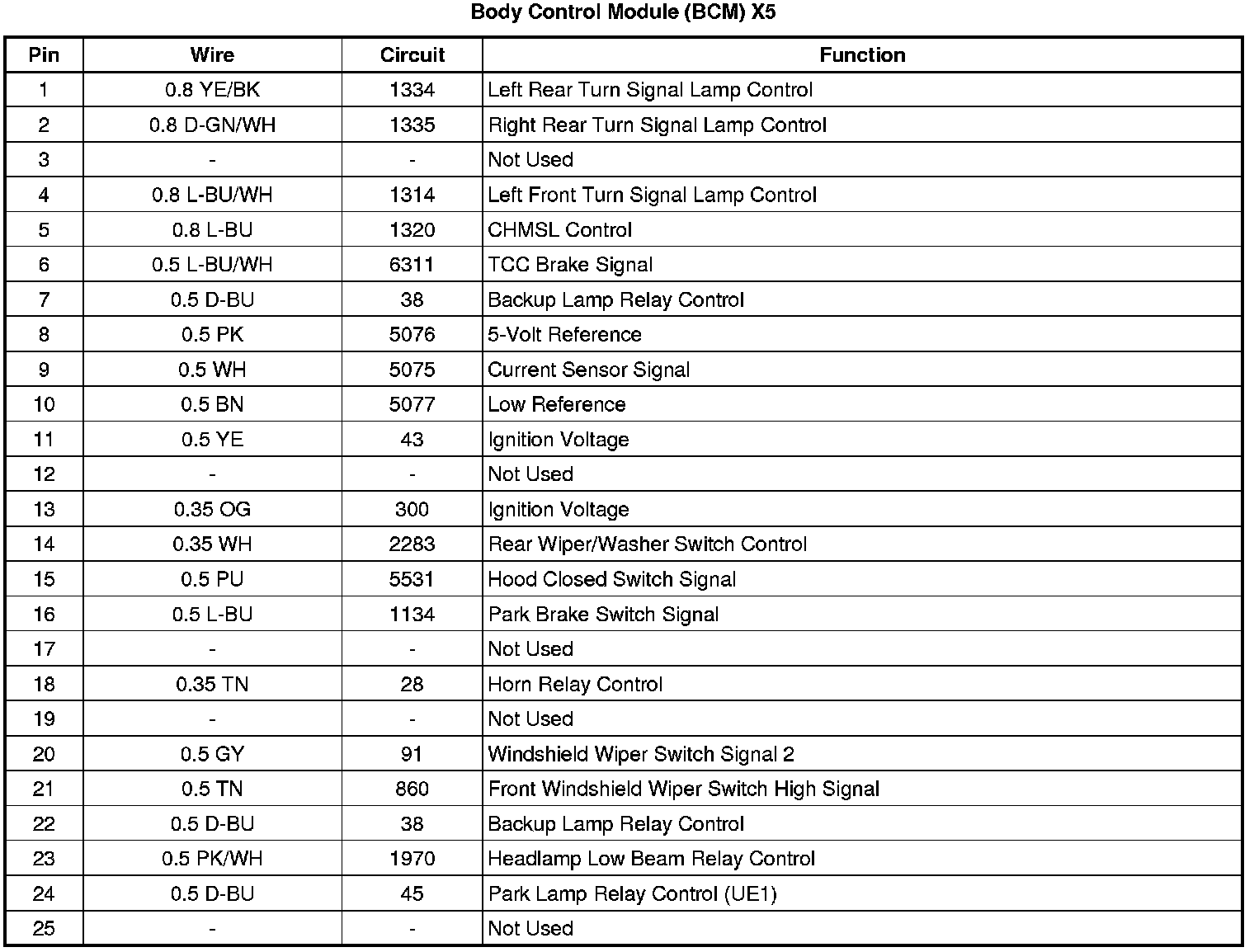

Body Control Module (BCM) X5
