Engine Control Module (ECM) X1
Engine Control Module (ECM) X1
Download the full database via torrent (~1.1 TB)

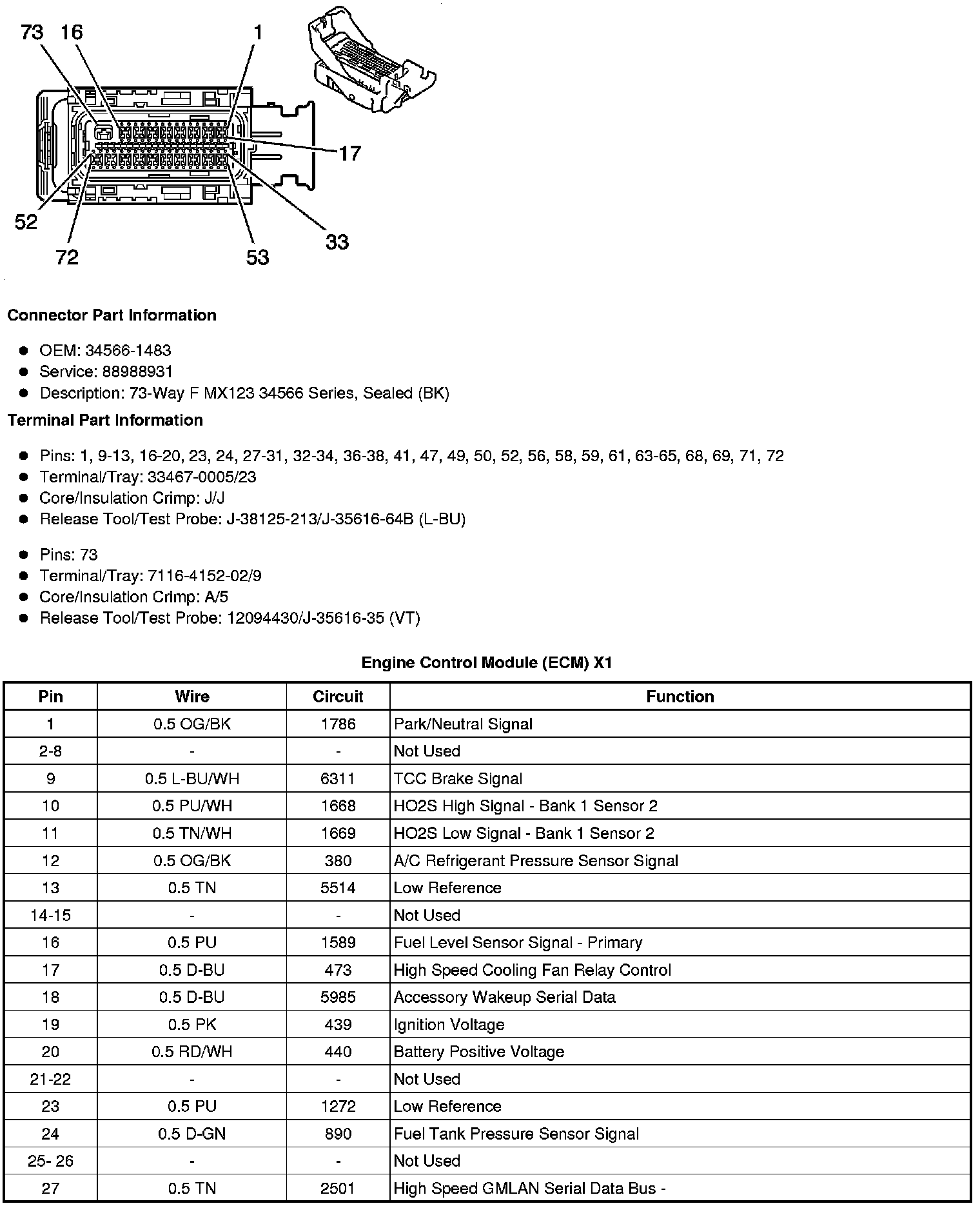

Component Connector End Views

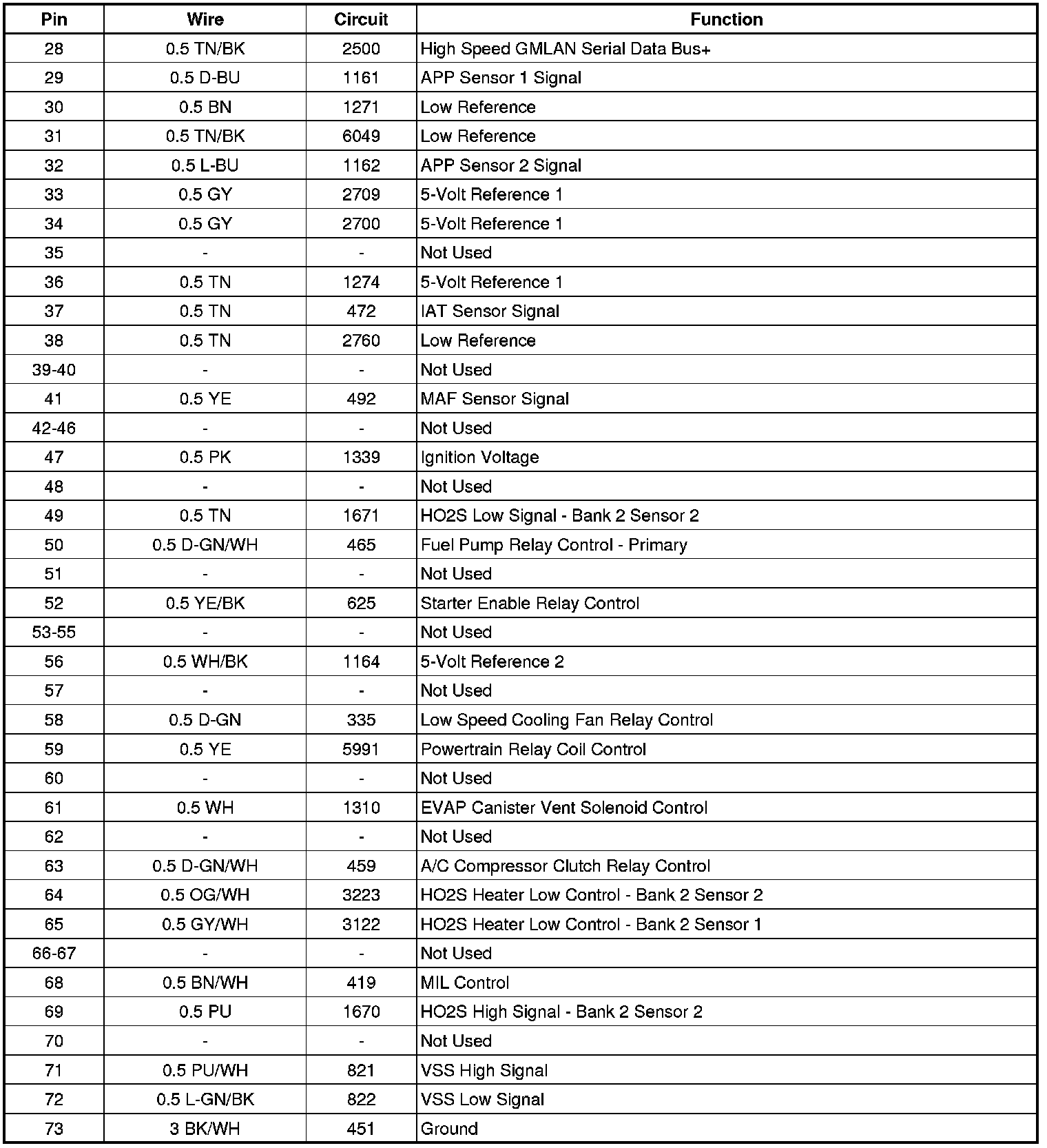

Engine Control Module (ECM) X1
