Timing Component Alignment Marks: Locations

Download the full database via torrent (~1.1 TB)

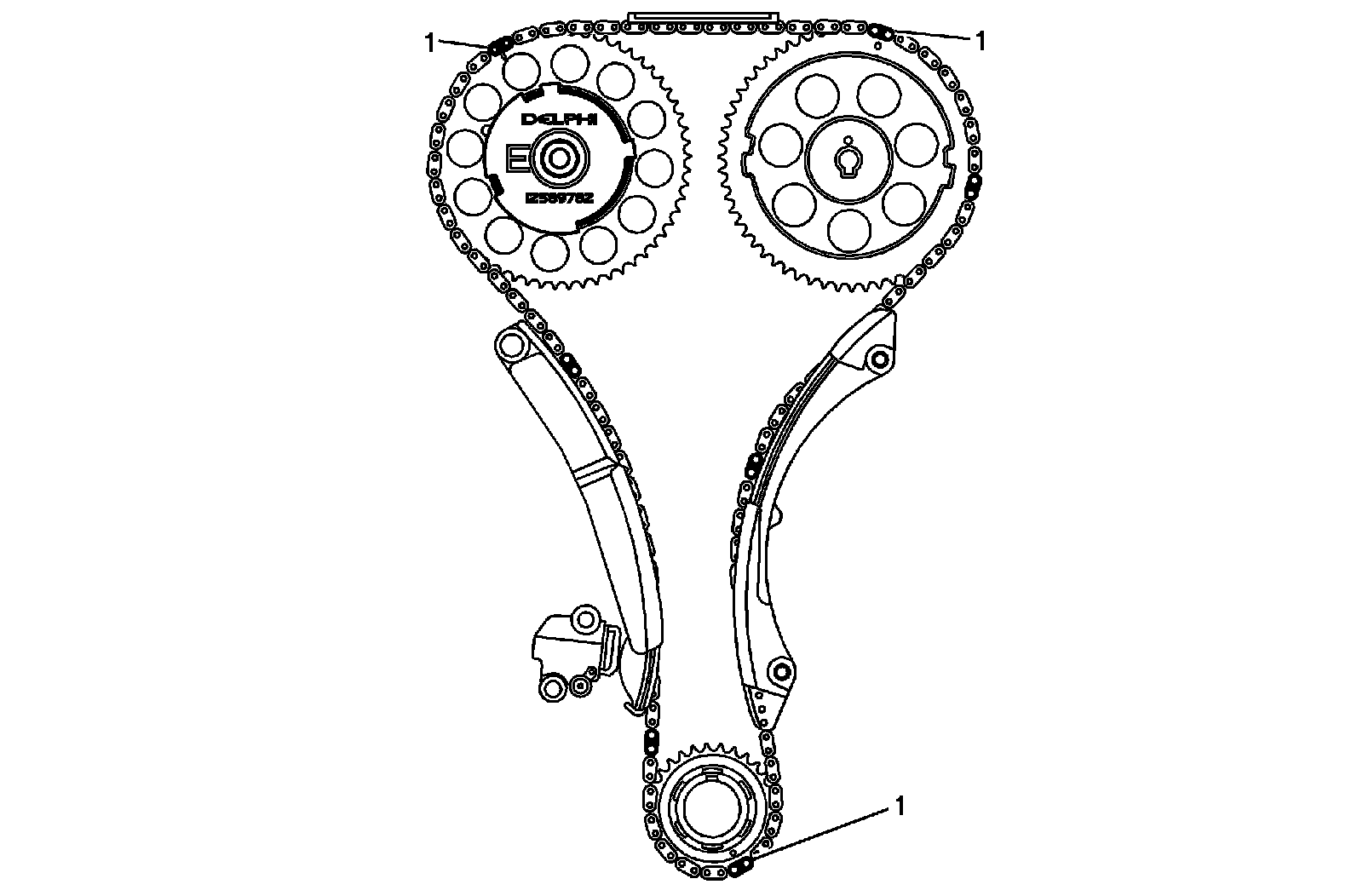

Timing Chain Alignment Diagram




1 - Timing Marks
1 - Timing Marks
1 - Timing Marks
