Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Diagrams
Body Control Module: Diagrams
Download the full database via torrent (~1.1 TB)
Component Connector End Views

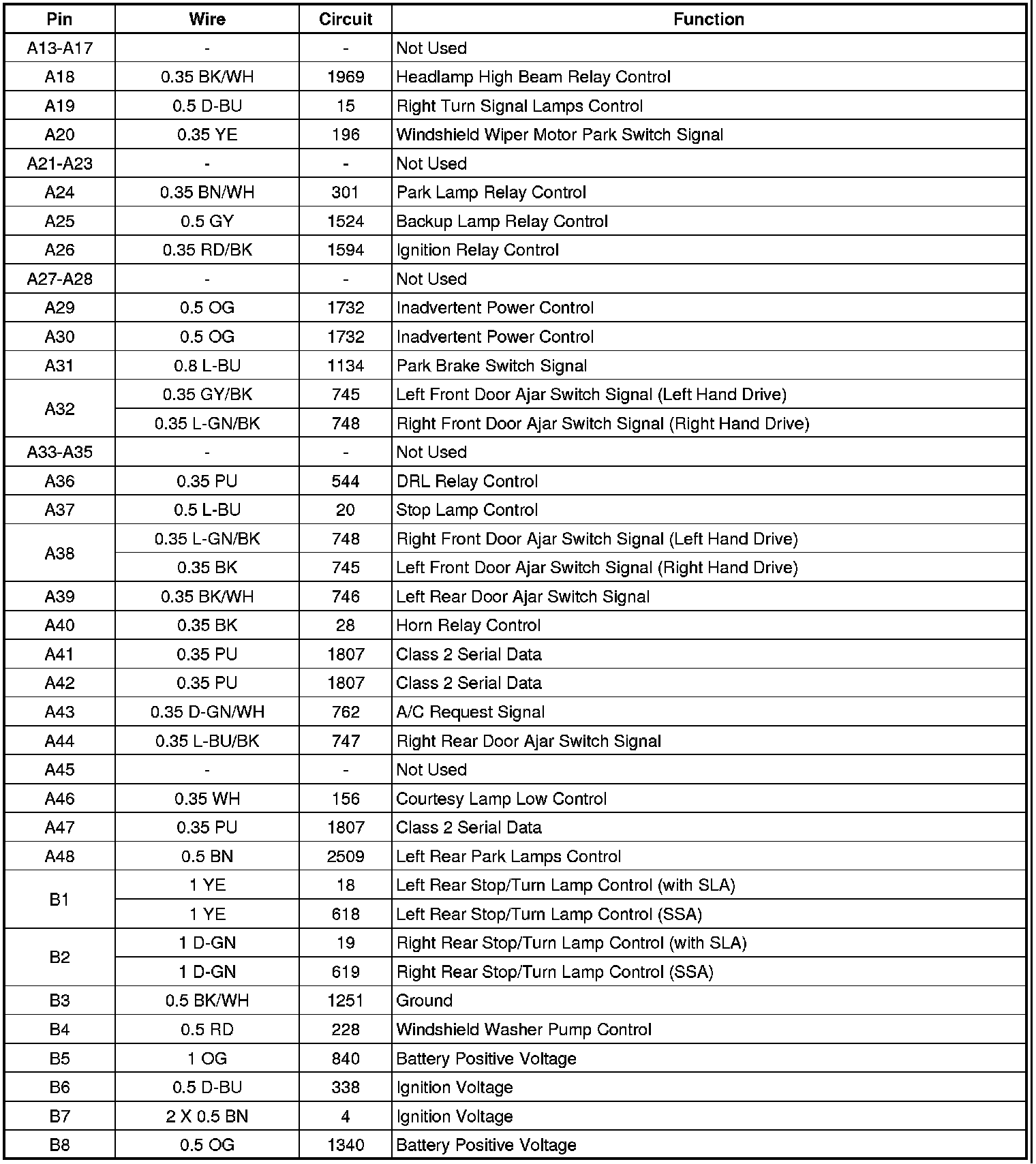

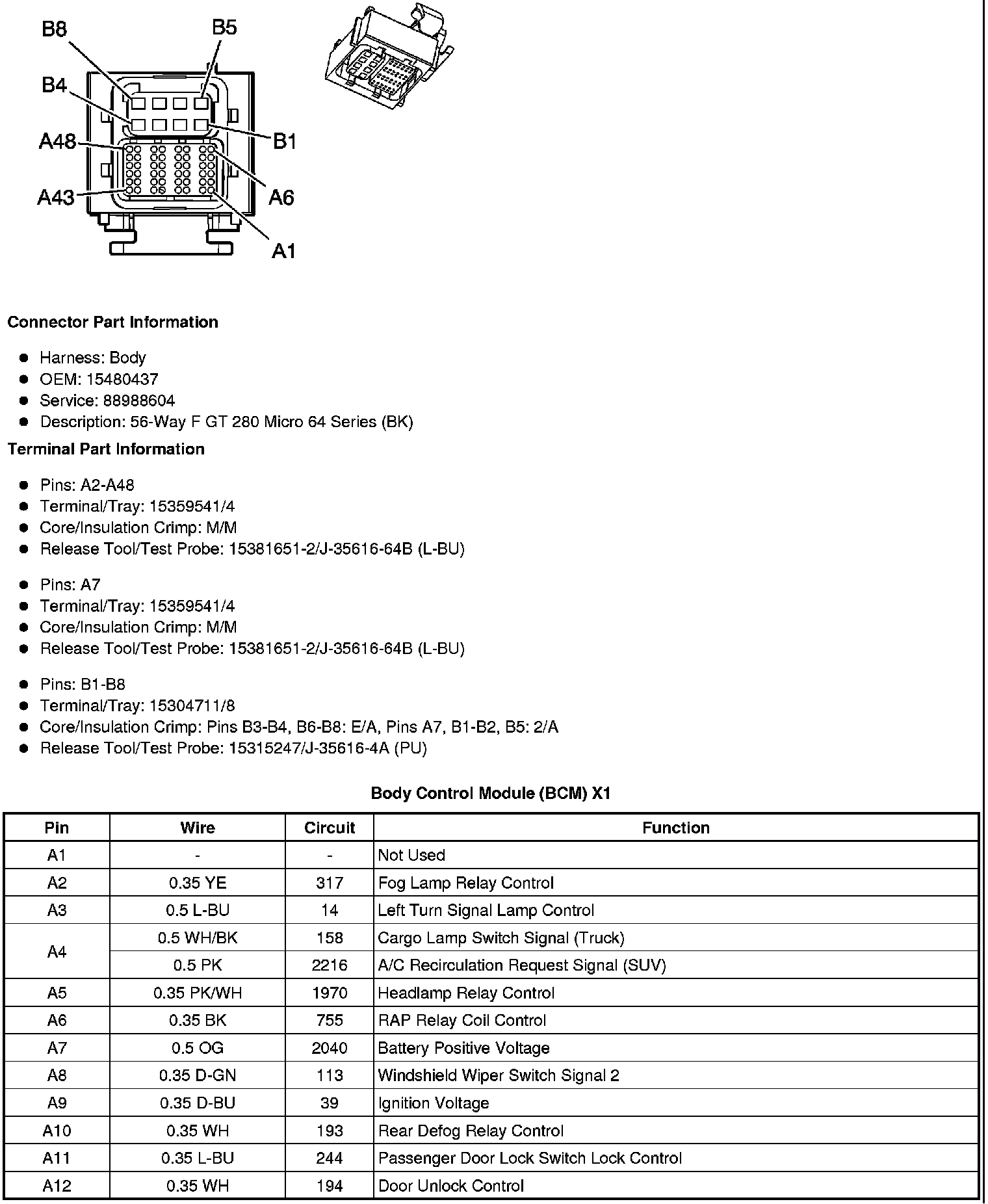

Body Control Module (BCM) X1

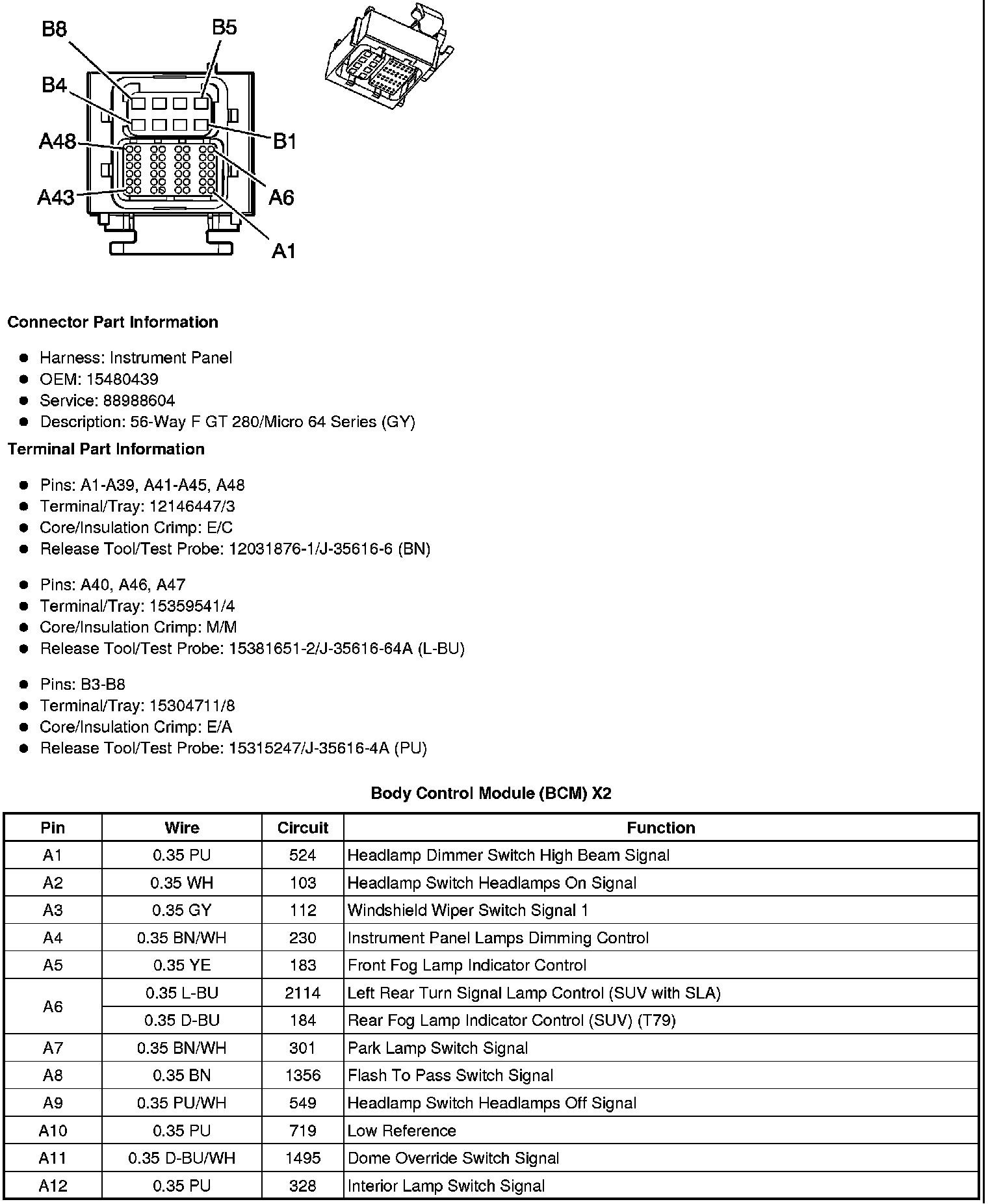

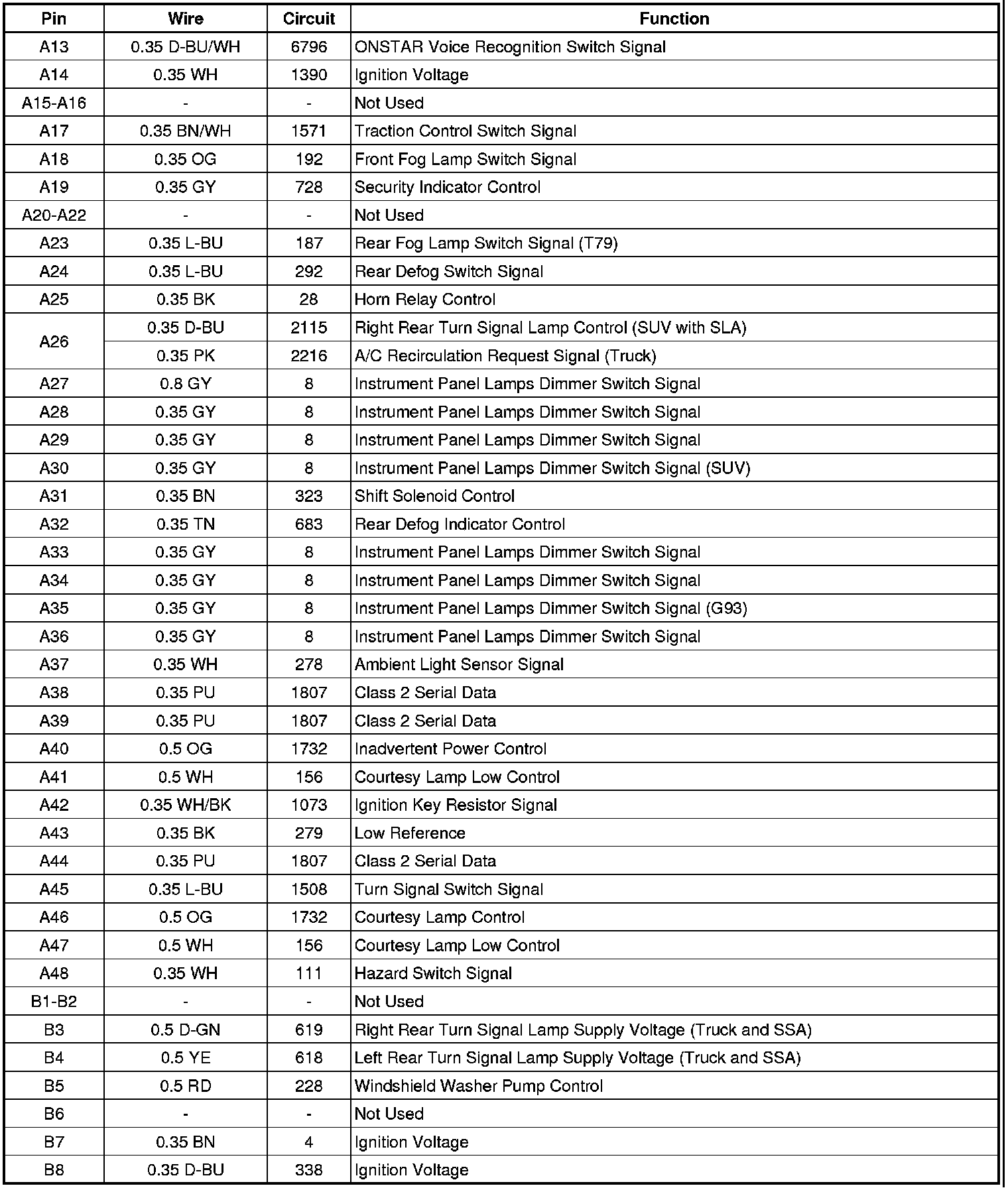

Body Control Module (BCM) X2
