Engine Control Module: Diagrams

Download the full database via torrent (~1.1 TB)



Component Connector End Views

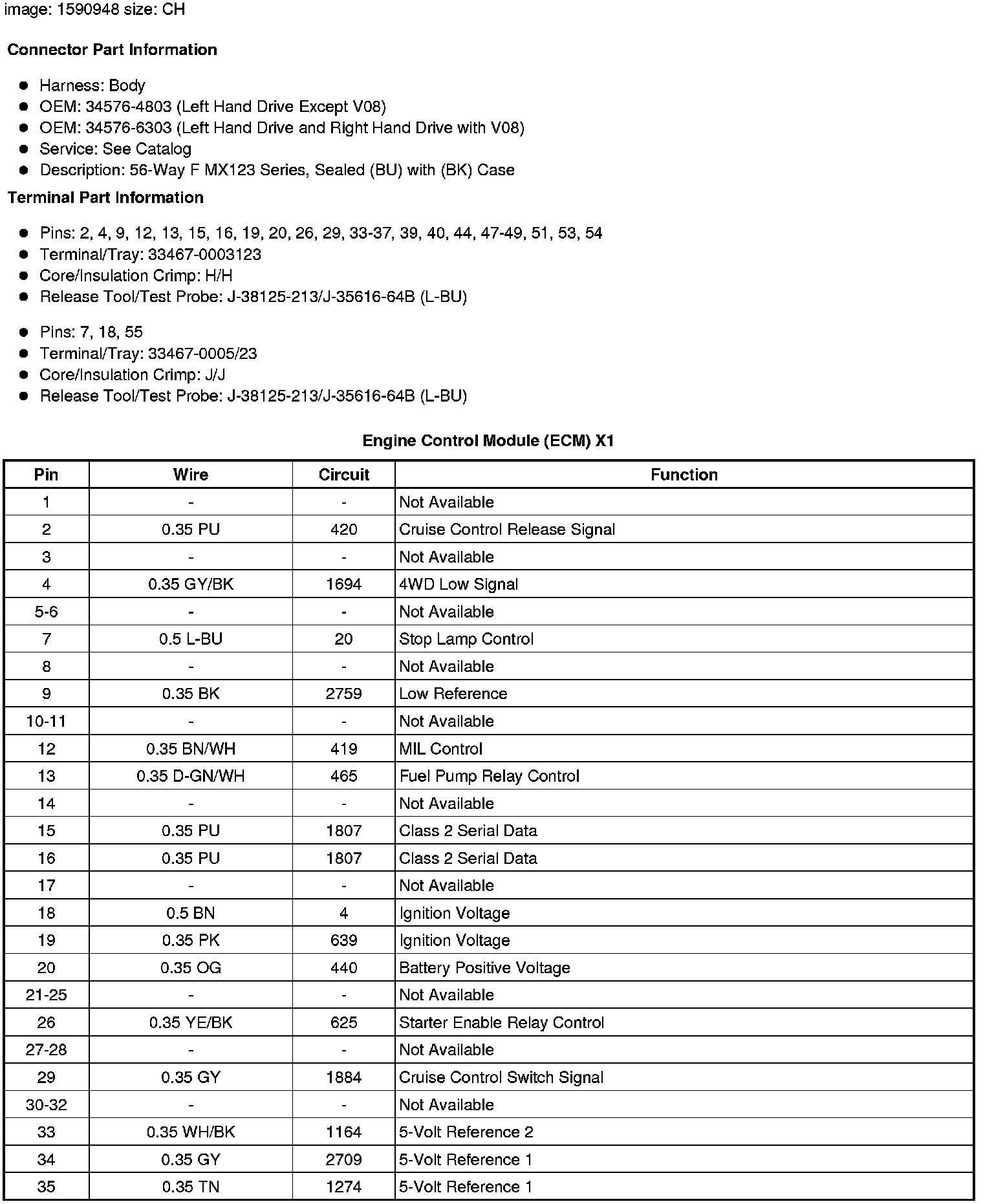

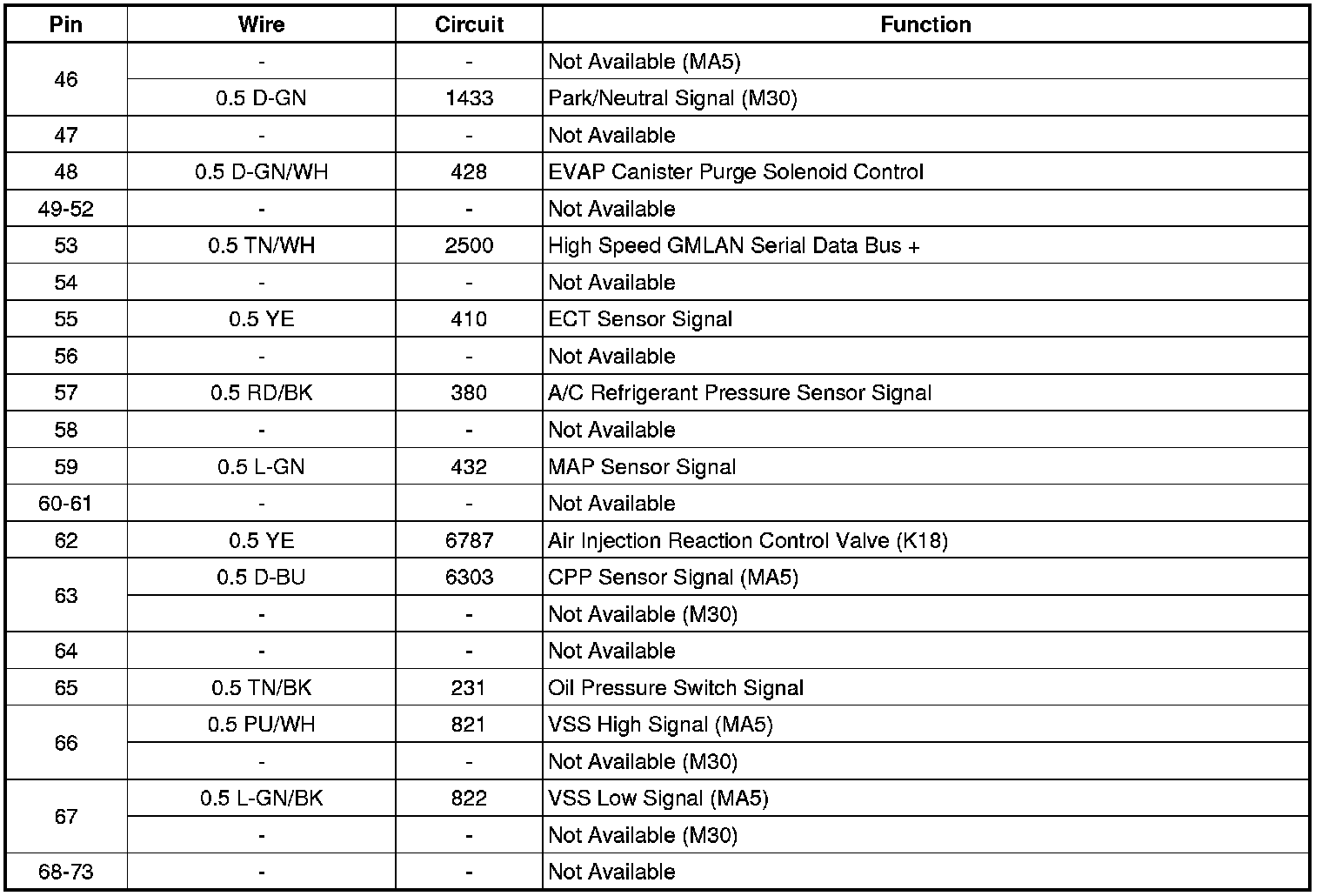

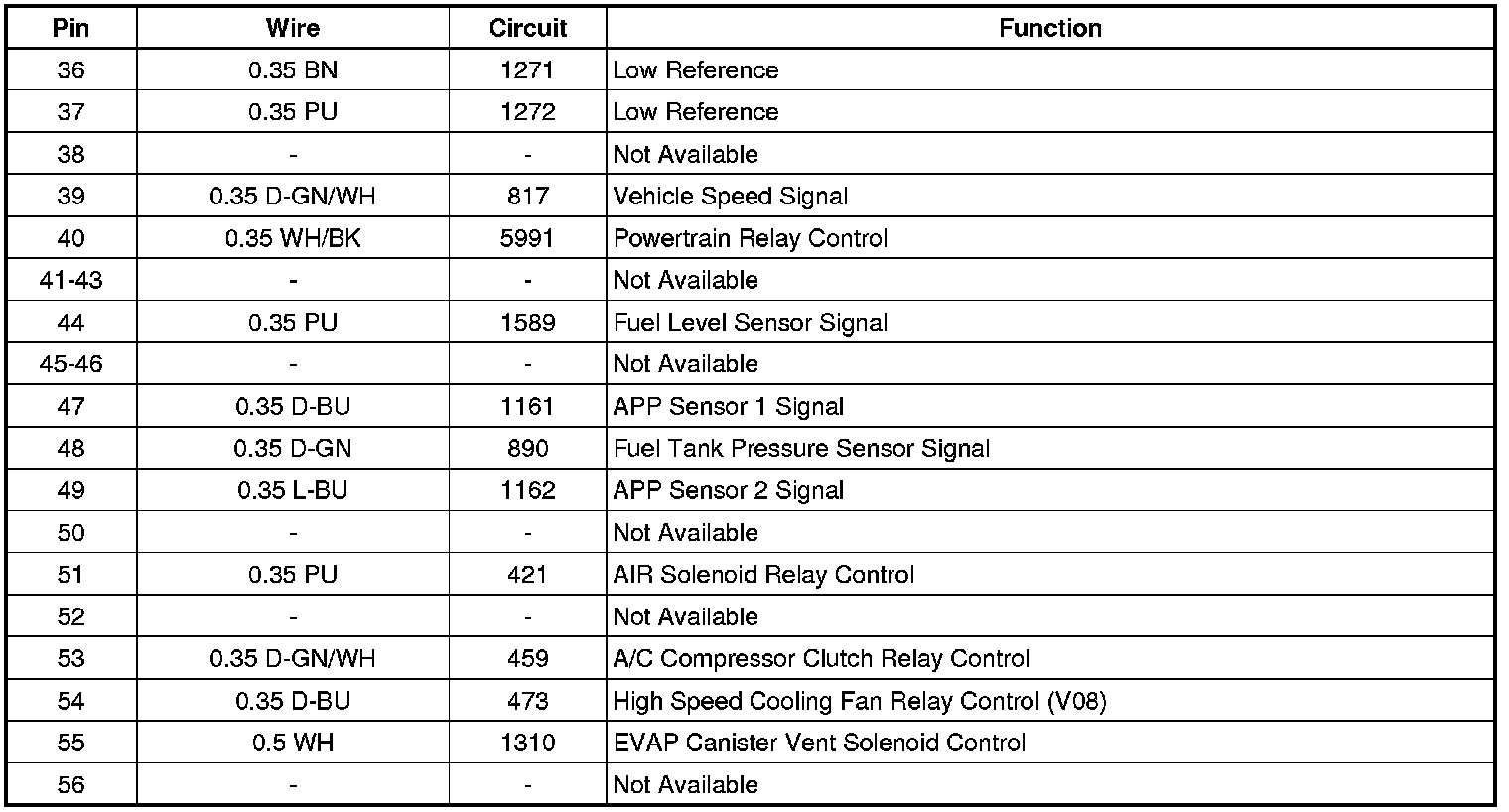

Engine Control Module (ECM) X1

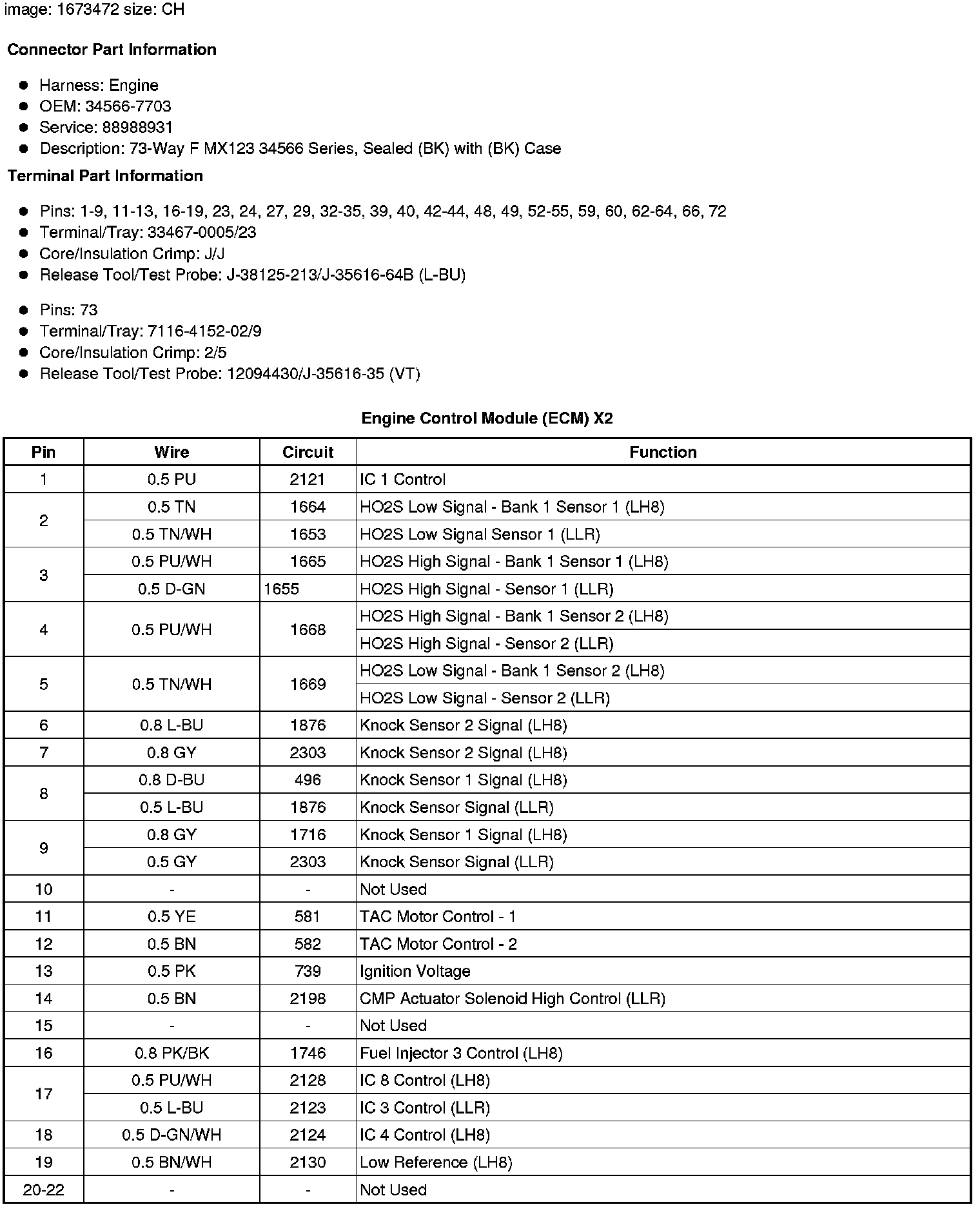

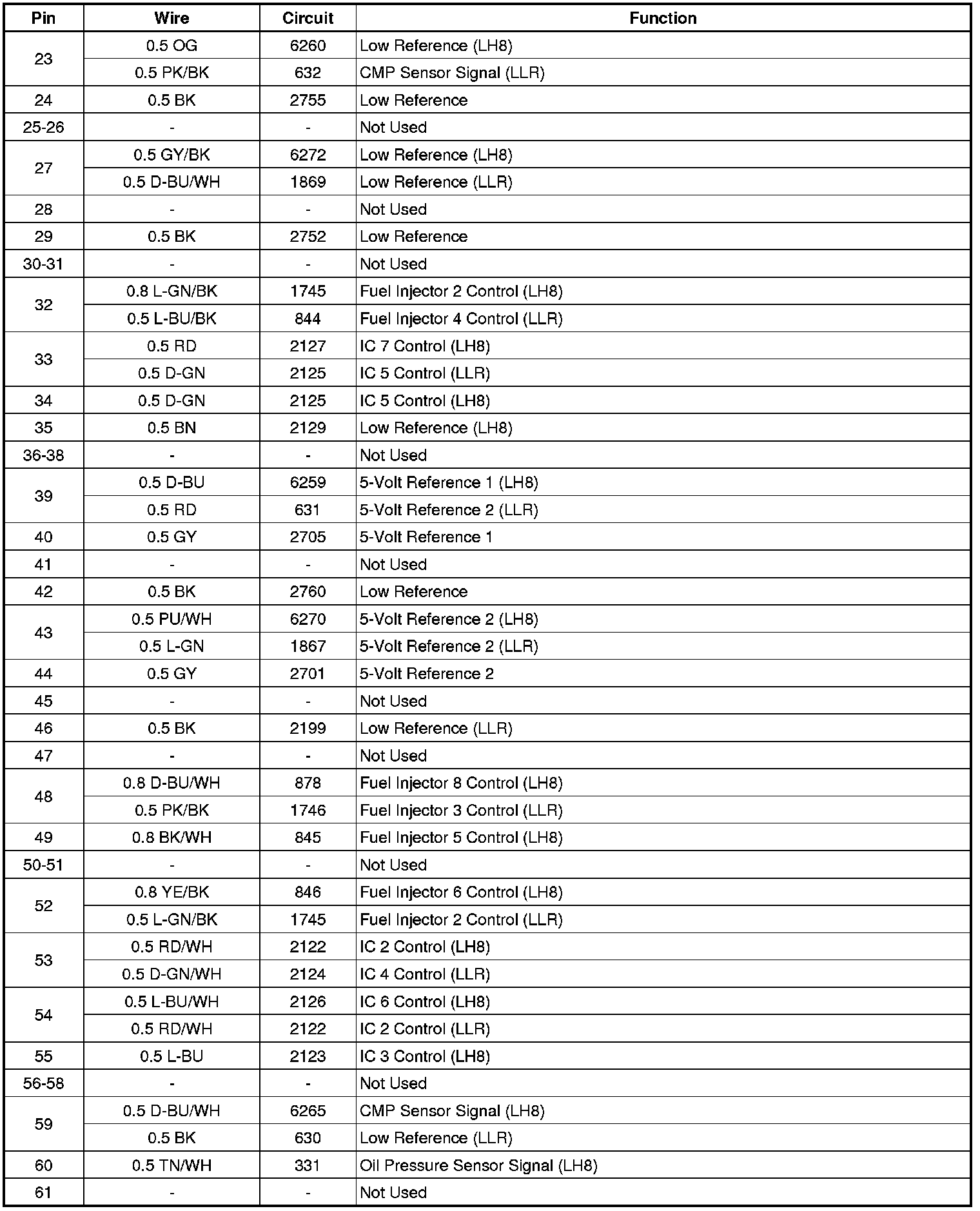

Engine Control Module (ECM) X2

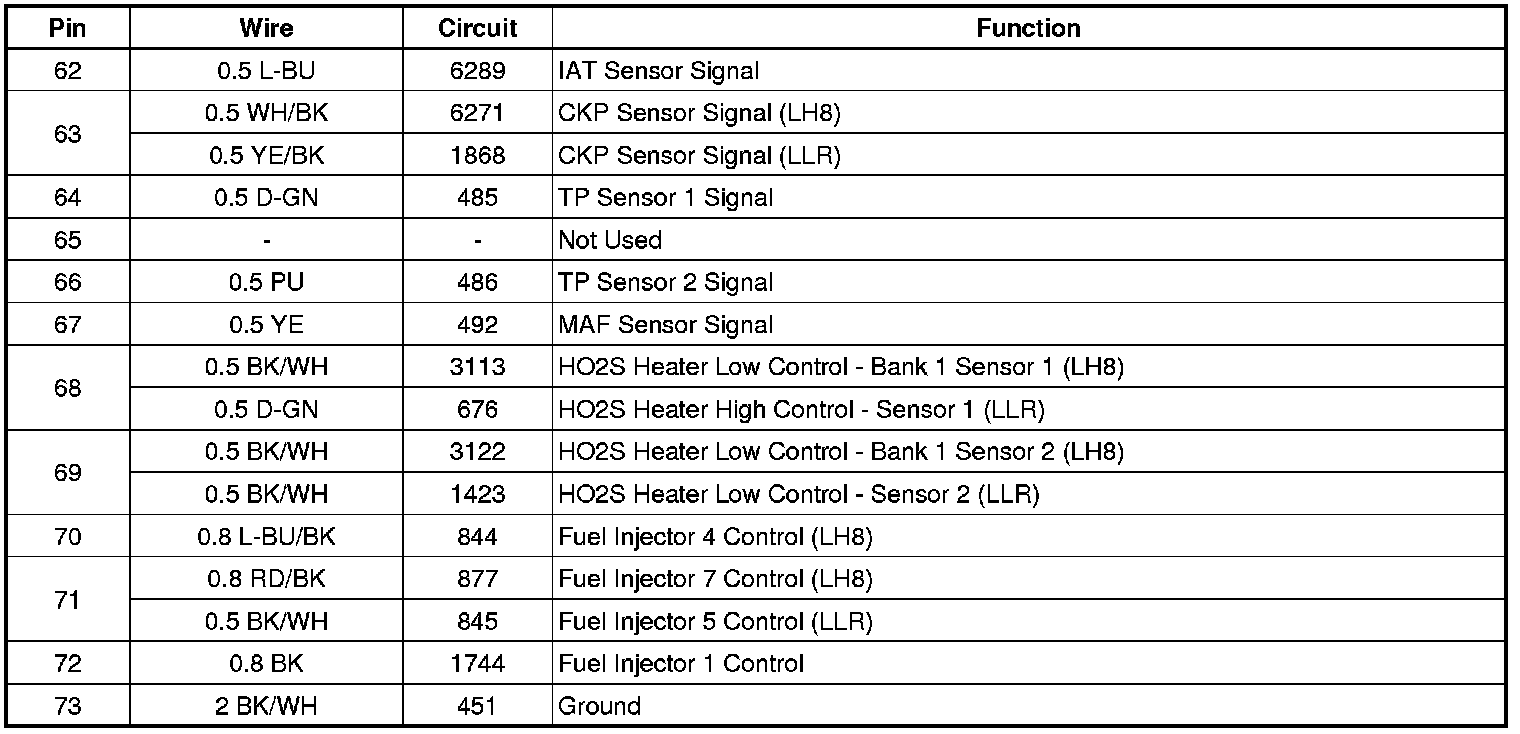

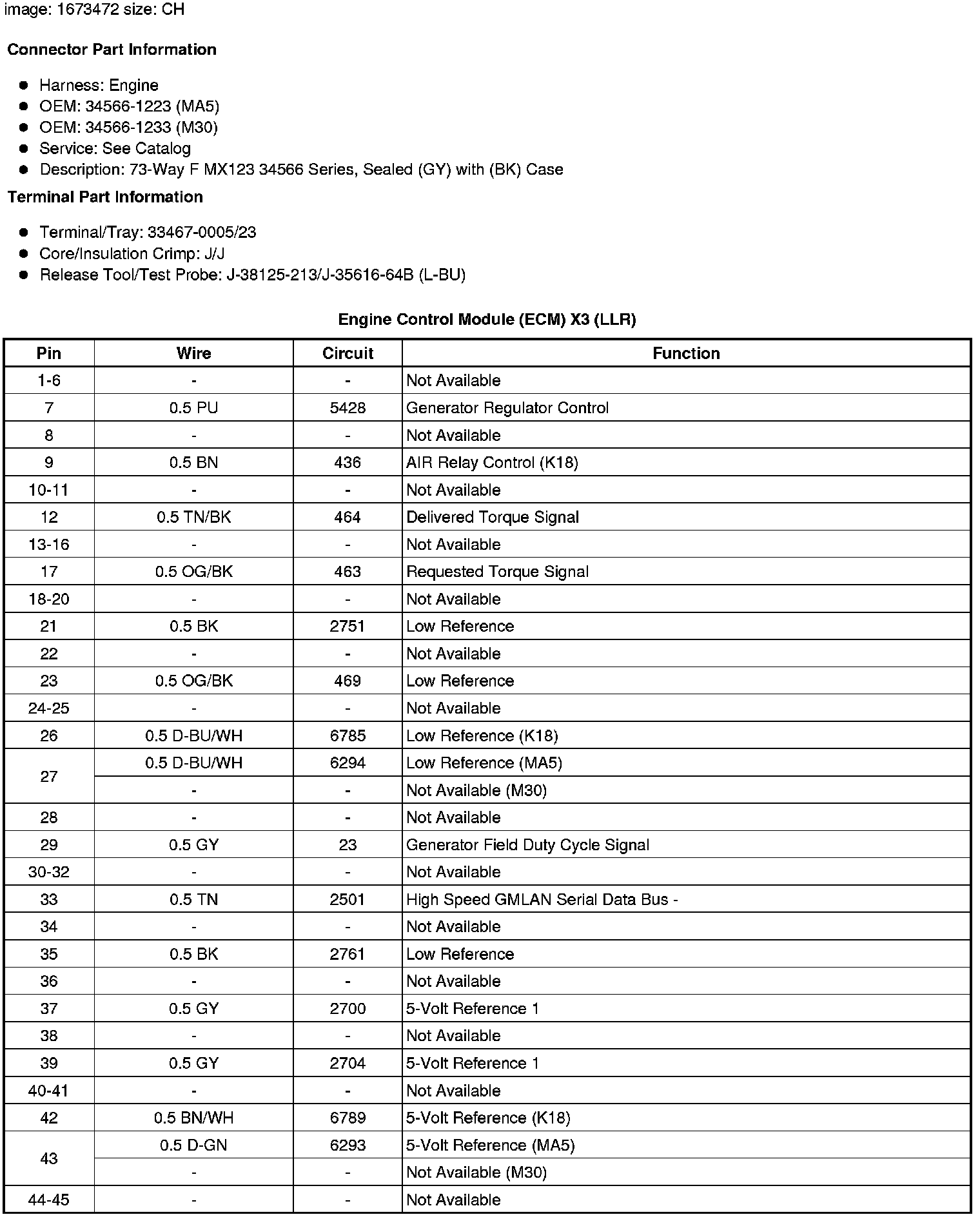

Engine Control Module (ECM) X3 (LLR)
